MPN:
SPS-1000C

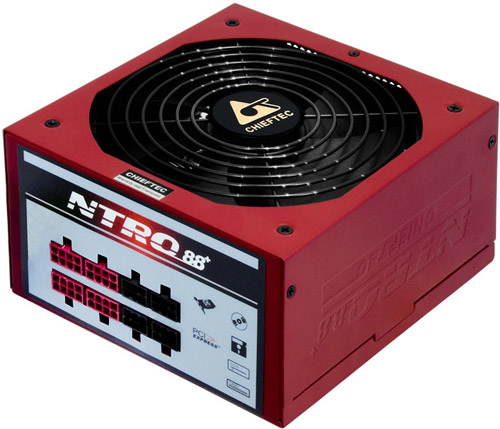

Chieftec SPS-1000C power supply unit 1000 W 20+4 pin ATX ATX Red
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 1000 W
- Efficiency rating
- 80 PLUS Silver
- Purpose
- PC
- Cabling type
- Fully-Modular
- Cooling type
- Active
- Fan size
- 140
- Fan location
- Side
- Input current
- 12
- On/off switch
- Y
Shopping actions
Overview
The Chieftec SPS-1000C power supply unit 1000 W 20+4 pin ATX ATX Red features 1000 W output, 80 PLUS 80 PLUS Silver efficiency, a 140 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Cooling
3 SPECS
Cooling type
Active
Fan size
140
Number of fans
1
Power
2 SPECS
Wattage
1000 W
Efficiency rating
80 PLUS Silver
Physical
1 SPEC
Colour
Red
General
27 SPECS
Purpose
PC
Cabling type
Fully-Modular
Fan location
Side
Packaging type
Box
Input current
12
On/off switch
Yes
AC input voltage
115 - 230
AC input frequency
47 - 63
Combined power (+12V)
960
Combined power (+3.3V)
150
Compliance certificates
RoHS
Max output current (+5V)
25
Max output current (-12V)
0.5
Max output current (+12V1)
80
Max output current (+12V2)
80
Max output current (+3.3V)
25
Max output current (+5Vsb)
3
Motherboard power connector
20+4 pin ATX
ATX Power connector (24-pin)
Yes
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V,+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Number of SATA power connectors
8
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
4
