MPN:
SFX-350BS

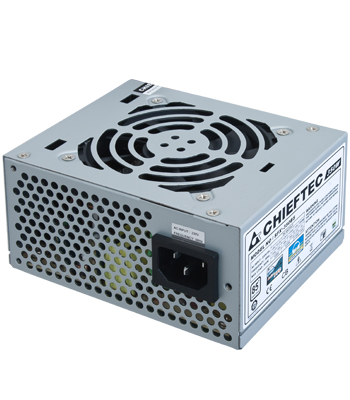

Chieftec SFX-350BS power supply unit 350 W 20+4 pin ATX ATX Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 350 W
- Depth
- 125 mm
- Width
- 100 mm
- Height
- 64 mm
- Purpose
- PC
- Efficiency
- 85
- ATX version
- 2.3
- Cabling type
- Non-Modular
- Cooling type
- Active
Shopping actions
Overview
The Chieftec SFX-350BS power supply unit 350 W 20+4 pin ATX ATX Grey features 350 W output, a 80 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
125 mm
Width
100 mm
Height
64 mm
Colour
Grey
Cooling
3 SPECS
Cooling type
Active
Fan size
80
Number of fans
1
Power
1 SPEC
Wattage
350 W
General
24 SPECS
Purpose
PC
Efficiency
85
ATX version
2.3
Cabling type
Non-Modular
Packaging type
Box
Input current
3
AC input voltage
230
AC input frequency
50
Combined power (+5V)
105
Combined power (-12V)
3.6
Combined power (+3.3V)
105
Max output current (+5V)
15
Max output current (-12V)
0.3
Power protection features
Over current,Over voltage,Overload,Short circuit
Max output current (+12V1)
27
Max output current (+3.3V)
16
Motherboard power connector
20+4 pin ATX
Maximum input current (@110V)
+12V,+12V1,+3.3V,+5V,+5Vsb,-12V
ATX power connector (20+4 pin)
Yes
Number of SATA power connectors
2
MTBF
100000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
Peripheral (Molex) power connectors (4-pin)
2
