MPN:
BPS-500S2

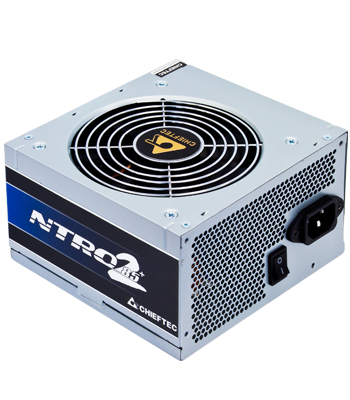

Chieftec NITRO II 85+ power supply unit 20+4 pin ATX PS/2 Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 140 mm
- Width
- 150 mm
- Height
- 87 mm
- Efficiency
- 85
- Peak power
- 500
- ATX version
- 2.3
- Cabling type
- Non-Modular
- Fan size
- 120
Shopping actions
Overview
The Chieftec NITRO II 85+ power supply unit 20+4 pin ATX PS/2 Grey features 80 PLUS 80 PLUS Bronze efficiency and a 120 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
140 mm
Width
150 mm
Height
87 mm
Colour
Grey
Power
1 SPEC
Efficiency rating
80 PLUS Bronze
Cooling
1 SPEC
Fan size
120
General
25 SPECS
Efficiency
85
Peak power
500
ATX version
2.3
Cabling type
Non-Modular
Power factor
0.9
Input current
8
AC input voltage
100 - 240
AC input frequency
47 - 63
Compliance certificates
RoHS
Max output current (+5V)
15
Max output current (-12V)
0.5
Power protection features
Over voltage,Overload,Short circuit,Under voltage
Max output current (+12V1)
38
Max output current (+3.3V)
20
Max output current (+5Vsb)
3
EPS power connector (8-pin)
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
Number of SATA power connectors
4
MTBF
100000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
PS/2
PCI Express power connectors (6-pin)
0
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
3
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
