MPN:
MRW-5600V

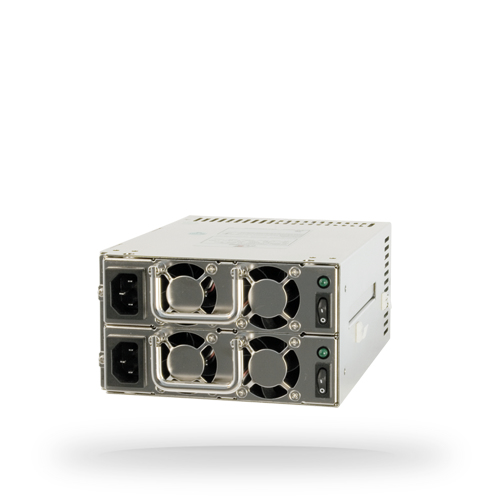

Chieftec MRW-5600V power supply unit 20+4 pin ATX ATX Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 210 mm
- Width
- 150 mm
- Height
- 87 mm
- Purpose
- Server
- Peak power
- 600
- ATX version
- 2.3
- Fan size
- 40
- Power factor
- 0.9
- LED indicators
- Y
Shopping actions
Overview
The Chieftec MRW-5600V power supply unit 20+4 pin ATX ATX Grey features a 40 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
210 mm
Width
150 mm
Height
87 mm
Colour
Grey
Cooling
2 SPECS
Fan size
40
Number of fans
4
Storage
1 SPEC
SATA ports
4
General
23 SPECS
Purpose
Server
Peak power
600
ATX version
2.3
Power factor
0.9
Certifications
EuP
CISPR EMI
LED indicators
Yes
AC input voltage
100 - 240
AC input frequency
47 - 63
Compliance certificates
RoHS
Max output current (+5V)
25
Max output current (-12V)
0.8
Power protection features
Over current,Over voltage,Overheating,Overload,Short circuit
Max output current (+12V1)
49
Max output current (+3.3V)
25
Max output current (+5Vsb)
3.5
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
2
ATX power connector (20+4 pin)
Yes
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6-pin)
1
PCI Express power connectors (6+2 pin)
0
Peripheral (Molex) power connectors (4-pin)
8
