MPN:
MRW-5600G

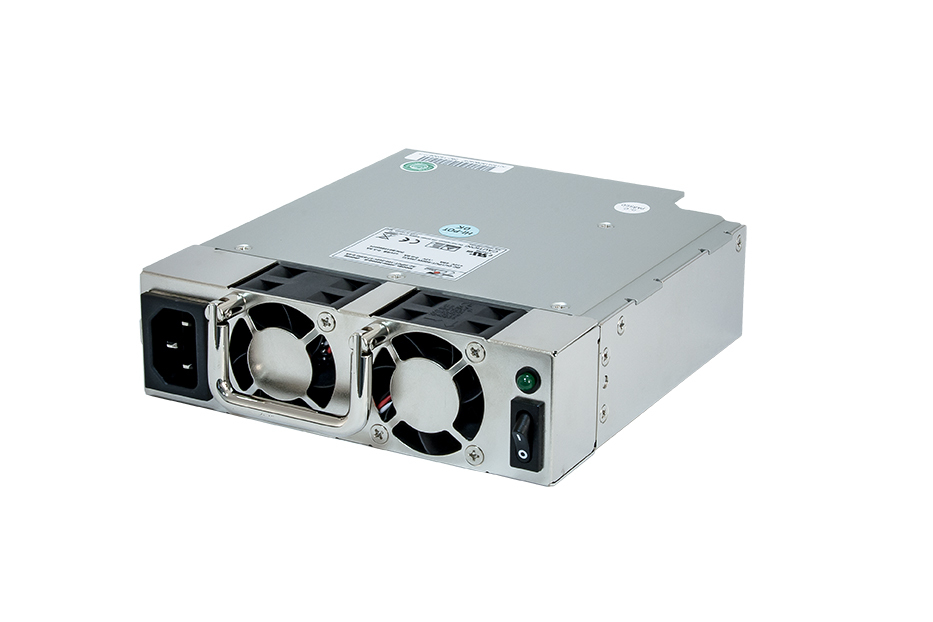

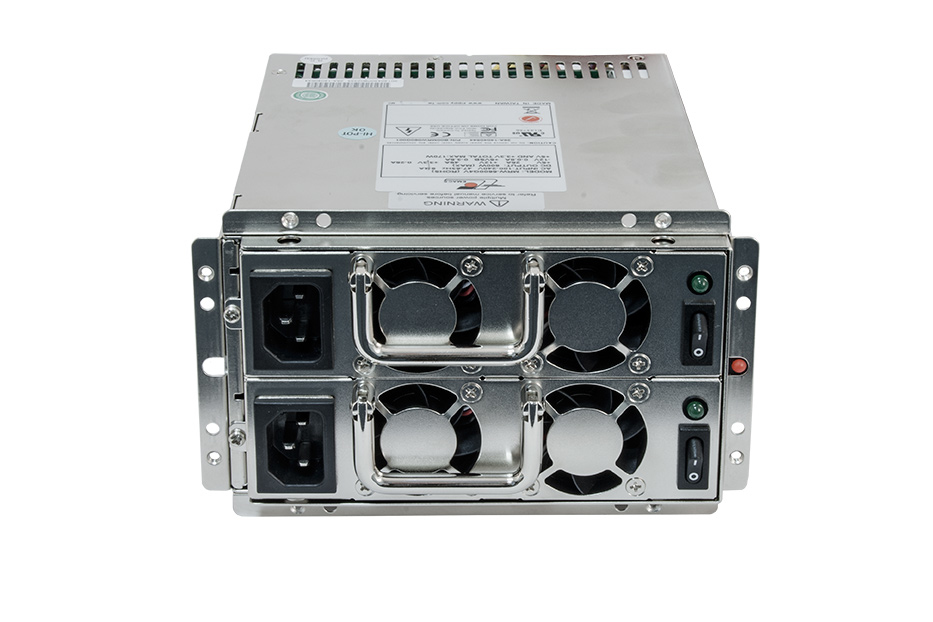

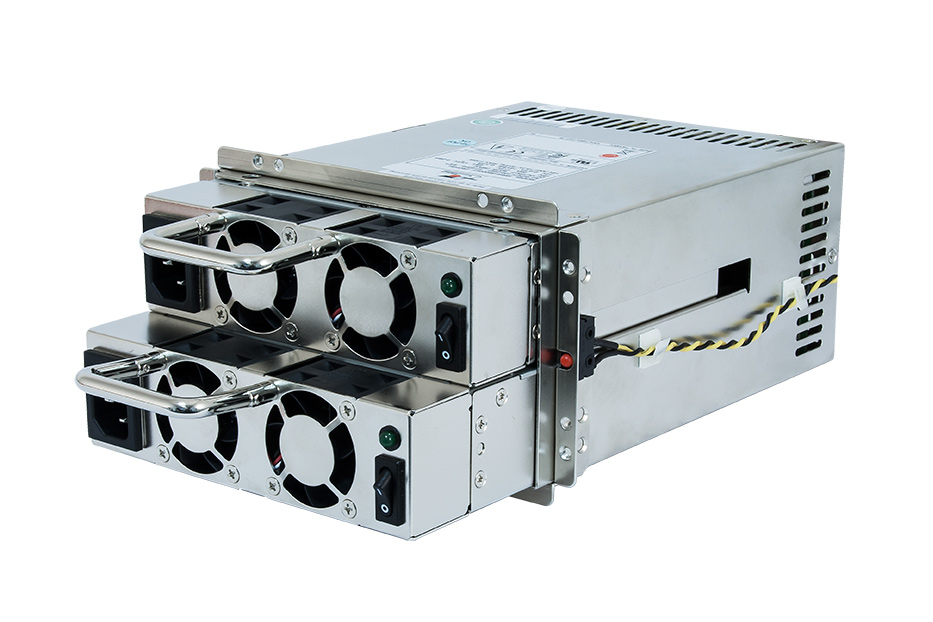

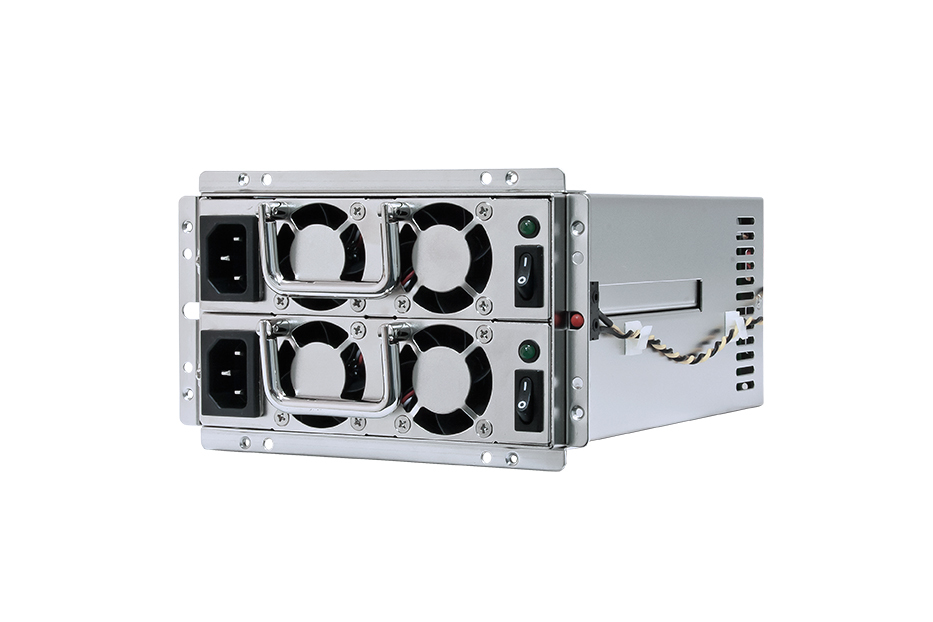

Chieftec MRW-5600G power supply unit 1200 W 24-pin ATX PS/2 Metallic
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 1200 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 185 mm
- Width
- 150 mm
- Height
- 87 mm
- Efficiency
- 90
- ATX version
- 2.3
- Cooling type
- Active
- Fan size
- 40
1 / 4
Shopping actions
Overview
The Chieftec MRW-5600G power supply unit 1200 W 24-pin ATX PS/2 Metallic features 1200 W output, 80 PLUS 80 PLUS Gold efficiency, a 40 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
185 mm
Width
150 mm
Height
87 mm
Colour
Metallic
Cooling
3 SPECS
Cooling type
Active
Fan size
40
Number of fans
4
Power
2 SPECS
Wattage
1200 W
Efficiency rating
80 PLUS Gold
General
24 SPECS
Efficiency
90
ATX version
2.3
Fan location
Side
Certifications
FCC, CISPR EMI
LED indicators
Alarm
AC input voltage
100 - 240
AC input frequency
47 - 63
Combined power (+5V)
170
Combined power (+3.3V)
170
Max output current (+5V)
25
Max output current (-12V)
0.8
Power protection features
Over current,Over voltage,Overload,Short circuit,Under voltage
Max output current (+12V1)
49
Max output current (+3.3V)
25
Max output current (+5Vsb)
3.5
EPS power connector (8-pin)
Yes
Motherboard power connector
24-pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Motherboard power cable length
600
Number of SATA power connectors
6
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
PS/2
Peripheral (Molex) power connectors (4-pin)
9
