MPN:
MRG-5700V

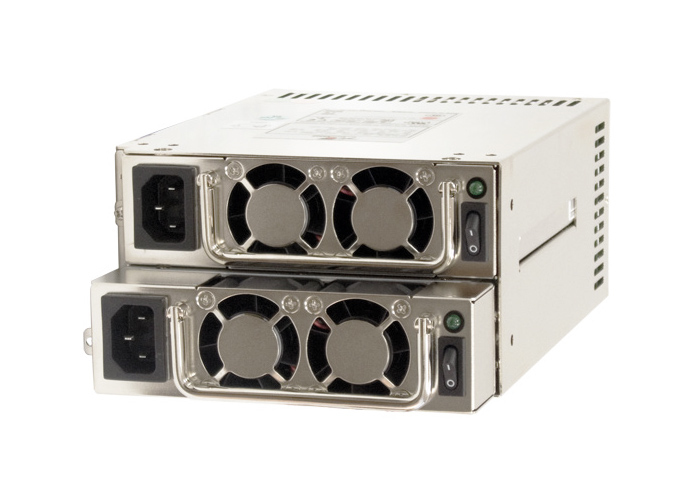

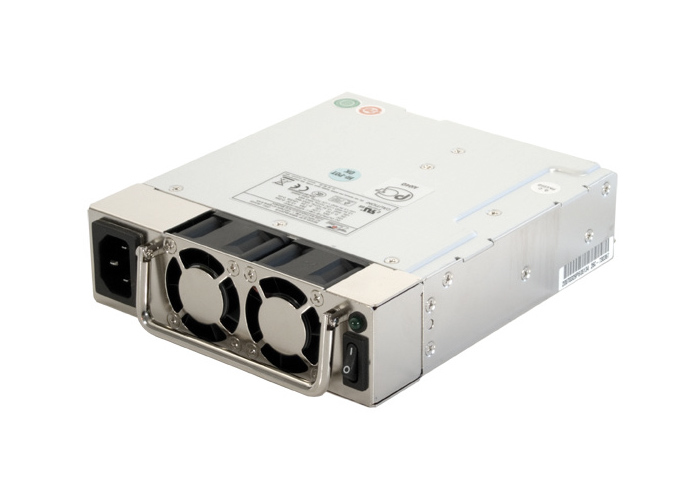

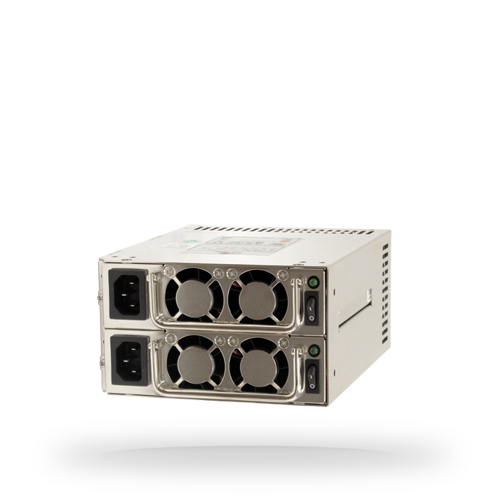

Chieftec MRG-5700V power supply unit 700 W 20+4 pin ATX PS/2 Silver
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 700 W
- Depth
- 210 mm
- Width
- 150 mm
- Height
- 87 mm
- Efficiency
- 80
- ATX version
- 2.3
- Fan size
- 40
- Power factor
- 0.9
- Input current
- 5 - 9
1 / 4
Shopping actions
Overview
The Chieftec MRG-5700V power supply unit 700 W 20+4 pin ATX PS/2 Silver features 700 W output and a 40 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
210 mm
Width
150 mm
Height
87 mm
Colour
Silver
Cooling
2 SPECS
Fan size
40
Number of fans
2
Power
1 SPEC
Wattage
700 W
General
26 SPECS
Efficiency
80
ATX version
2.3
Power factor
0.9
Input current
5 - 9
AC input voltage
100 - 240
AC input frequency
47 - 63
Combined power (+5V)
190
Combined power (+3.3V)
190
Compliance certificates
RoHS
Max output current (+5V)
32
Max output current (-12V)
0.8
Power protection features
Over current,Over voltage,Overheating,Overload,Short circuit,Under voltage
Max output current (+12V1)
57
Max output current (+3.3V)
32
Max output current (+5Vsb)
3.5
EPS power connector (8-pin)
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Number of SATA power connectors
6
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
PS/2
PCI Express power connectors (6-pin)
1
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
5
Market Value History
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
