MPN:
GPS-500C

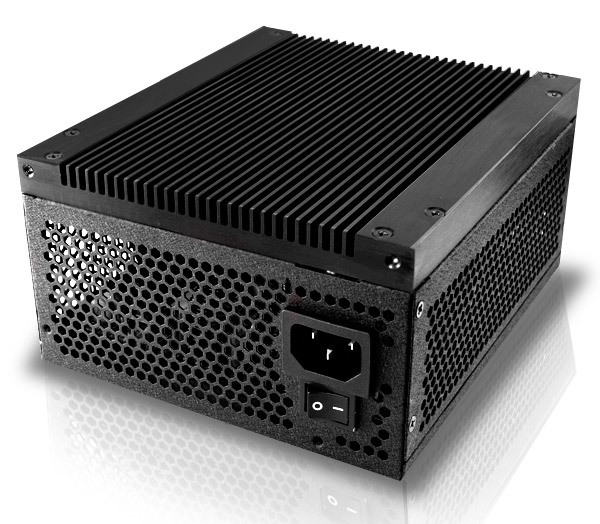

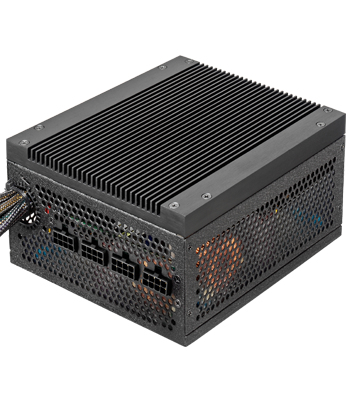

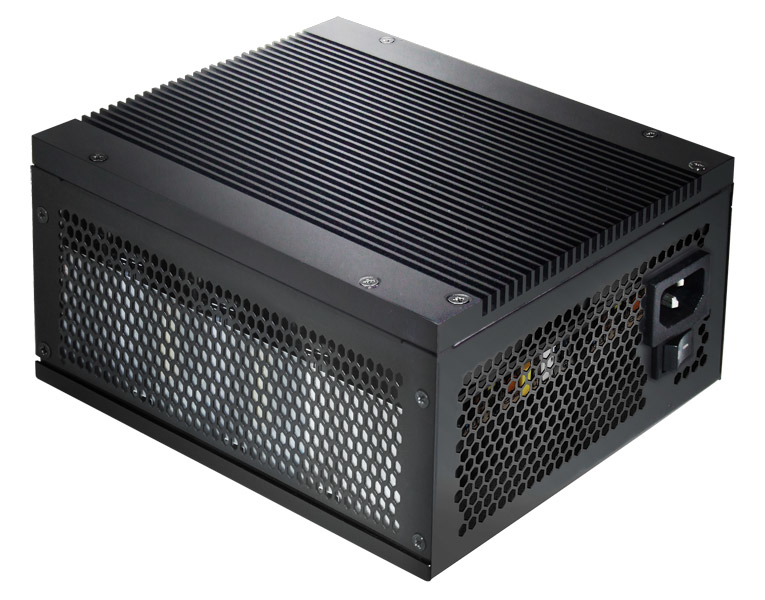

Chieftec GPS-500C power supply unit 500 W 24-pin ATX PS/2 Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 500 W
- Efficiency rating
- 80 PLUS Platinum
- Depth
- 170 mm
- Width
- 150 mm
- Height
- 87 mm
- Purpose
- PC
- Efficiency
- 92
- ATX version
- 2.3
- Cabling type
- Semi-Modular
1 / 3
Shopping actions
Overview
The Chieftec GPS-500C power supply unit 500 W 24-pin ATX PS/2 Black features 500 W output, 80 PLUS 80 PLUS Platinum efficiency and Passive cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
170 mm
Width
150 mm
Height
87 mm
Colour
Black
Power
2 SPECS
Wattage
500 W
Efficiency rating
80 PLUS Platinum
Cooling
1 SPEC
Cooling type
Passive
General
31 SPECS
Purpose
PC
Efficiency
92
ATX version
2.3
Cabling type
Semi-Modular
Power factor
0.9
On/off switch
Yes
AC input voltage
115 - 240
AC input frequency
50 - 60
Combined power (+5V)
100
Combined power (+12V)
498
Combined power (-12V)
6
PCI Express connector
Yes
Combined power (+3.3V)
100
Combined power (+5Vsb)
12.5
Compliance certificates
RoHS
Max output current (+5V)
20
Max output current (+12V)
44
Max output current (-12V)
0.5
Power protection features
Over voltage,Overload,Short circuit,Under voltage
Max output current (+3.3V)
20
Max output current (+5Vsb)
2.5
Floppy disk drive connector
Yes
Motherboard power connector
24-pin ATX
ATX Power connector (24-pin)
Yes
Floppy drive power connector
1
Maximum input current (@110V)
+12V,+3.3V,+5V,+5Vsb,-12V
Number of SATA power connectors
6
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
PS/2
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
5
