MPN:
GPP-500S

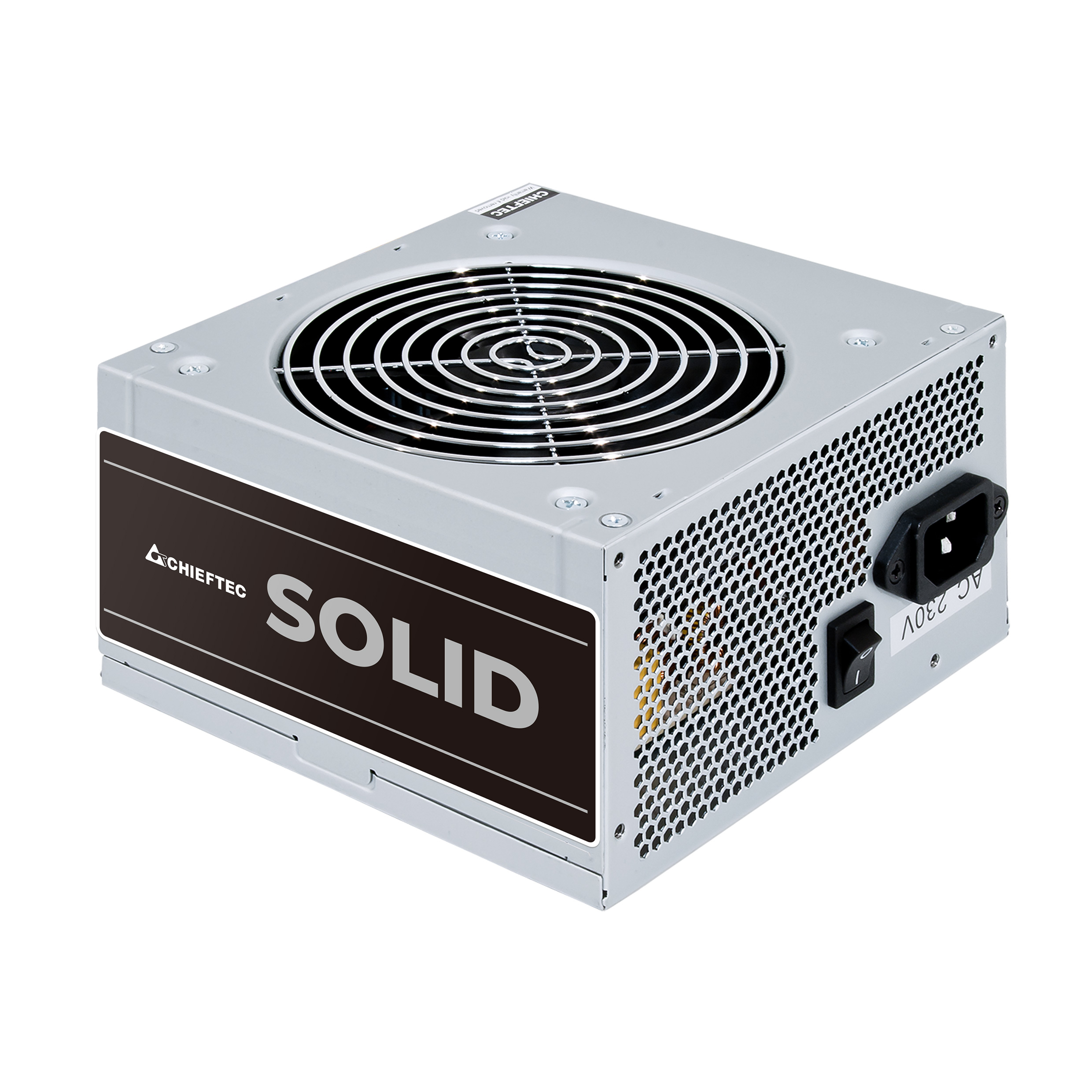

Chieftec GPP-500S power supply unit 500 W 20+4 pin ATX ATX Silver
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 500 W
- Depth
- 140 mm
- Width
- 150 mm
- Height
- 87 mm
- Weight
- 1250 g
- Purpose
- PC
- Efficiency
- 85
- ATX version
- 2.3
- Cabling type
- Non-Modular
Shopping actions
Overview
The Chieftec GPP-500S power supply unit 500 W 20+4 pin ATX ATX Silver features 500 W output, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
140 mm
Width
150 mm
Height
87 mm
Weight
1250 g
Colour
Silver
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Power
1 SPEC
Wattage
500 W
General
30 SPECS
Purpose
PC
Efficiency
85
ATX version
2.3
Cabling type
Non-Modular
Certifications
ErP, RoHS, CE, CB, EAC, TÜV
On/off switch
Yes
AC input voltage
200 - 240
AC input frequency
47 - 63
Combined power (+5V)
110
Combined power (+12V)
456
Combined power (+3.3V)
110
Compliance certificates
CE,RoHS
SATA power cable length
150,400,550
Max output current (+5V)
17
Max output current (-12V)
0.3
Power protection features
Over power,Over voltage,Short circuit,Under voltage
Max output current (+12V1)
38
Max output current (+3.3V)
18
Max output current (+5Vsb)
2.5
Motherboard power connector
20+4 pin ATX
Eco certifications
ErP
EPS power connector (4+4 pin)
Yes
Motherboard power cable length
650
PCI Express power cable length
400
Number of SATA power connectors
5
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
Peripheral (Molex) power cable length
150,400,550
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
3
