MPN:
GPM-850C

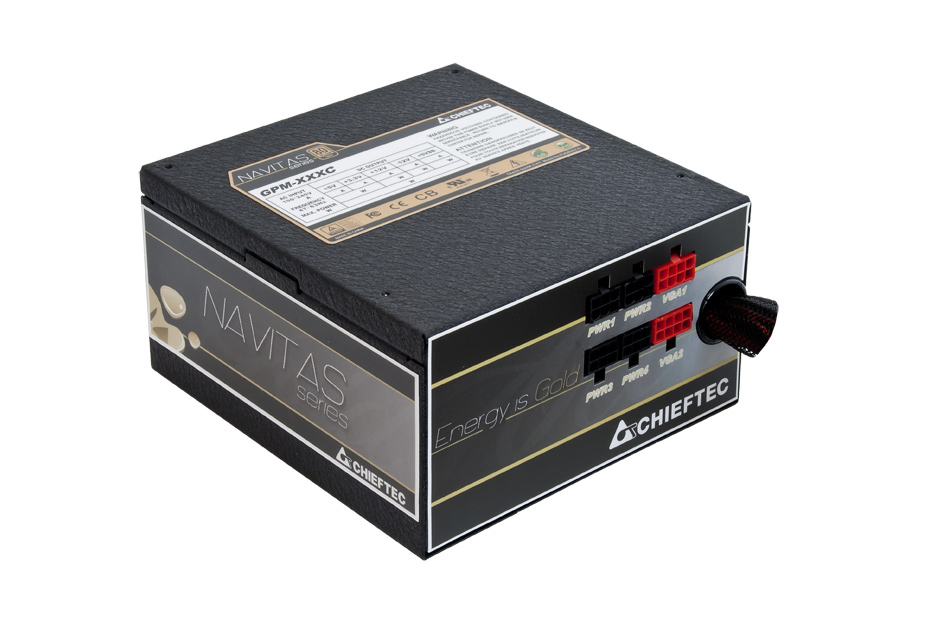

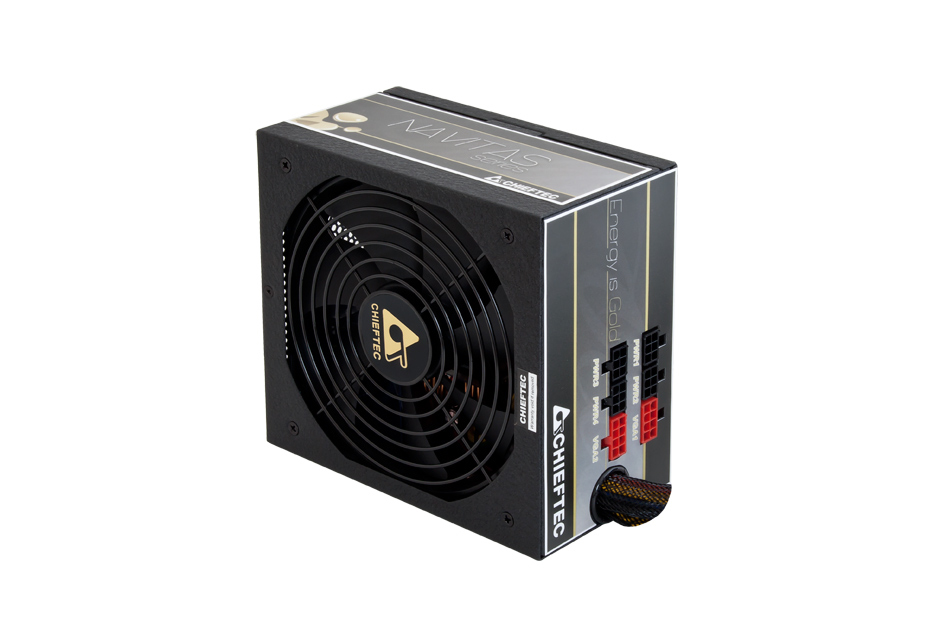

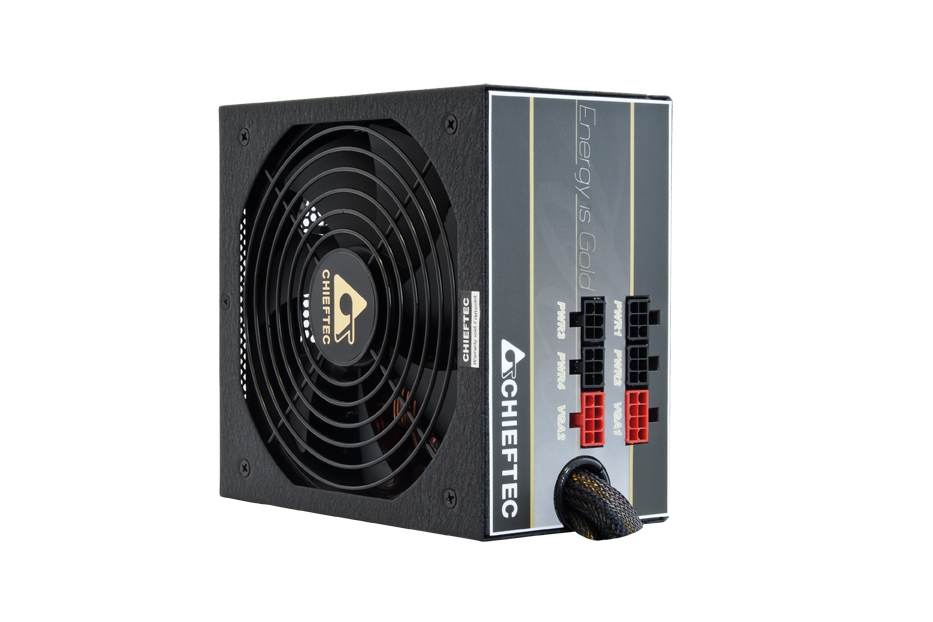

Chieftec GPM-850C power supply unit 850 W 20+4 pin ATX PS/2 Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 850 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 160 mm
- Width
- 150 mm
- Height
- 87 mm
- Purpose
- PC
- Efficiency
- 90
- ATX version
- 2.3
- Cabling type
- Semi-Modular
1 / 6
Shopping actions
Overview
The Chieftec GPM-850C power supply unit 850 W 20+4 pin ATX PS/2 Black features 850 W output, 80 PLUS 80 PLUS Gold efficiency, a 140 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
160 mm
Width
150 mm
Height
87 mm
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
140
Number of fans
1
Power
2 SPECS
Wattage
850 W
Efficiency rating
80 PLUS Gold
General
25 SPECS
Purpose
PC
Efficiency
90
ATX version
2.3
Cabling type
Semi-Modular
Input current
12
On/off switch
No
AC input voltage
100 - 240
AC input frequency
47 - 63
Compliance certificates
RoHS
Max output current (+5V)
20
Max output current (-12V)
0.8
Power protection features
Over current,Over voltage,Overheating,Overload,Short circuit,Under voltage
Max output current (+12V1)
70
Max output current (+3.3V)
20
Max output current (+5Vsb)
3
EPS power connector (8-pin)
Yes
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
Maximum input current (@110V)
+12V1,+3.3V,+5V,-12V,-5Vsb
ATX power connector (20+4 pin)
Yes
Number of SATA power connectors
6
Power supply unit (PSU) form factor
PS/2
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
3
