MPN:
GPF-250P

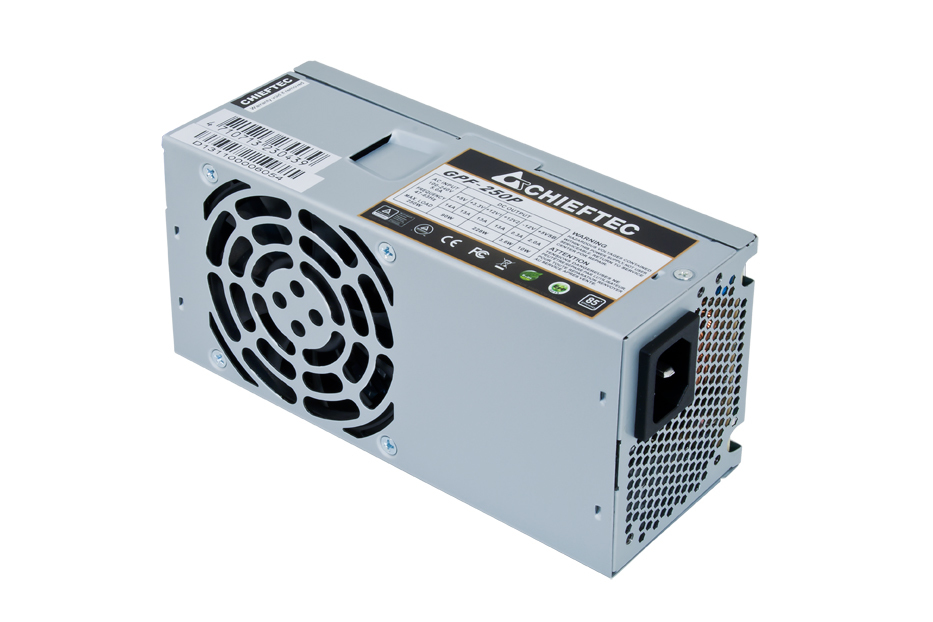

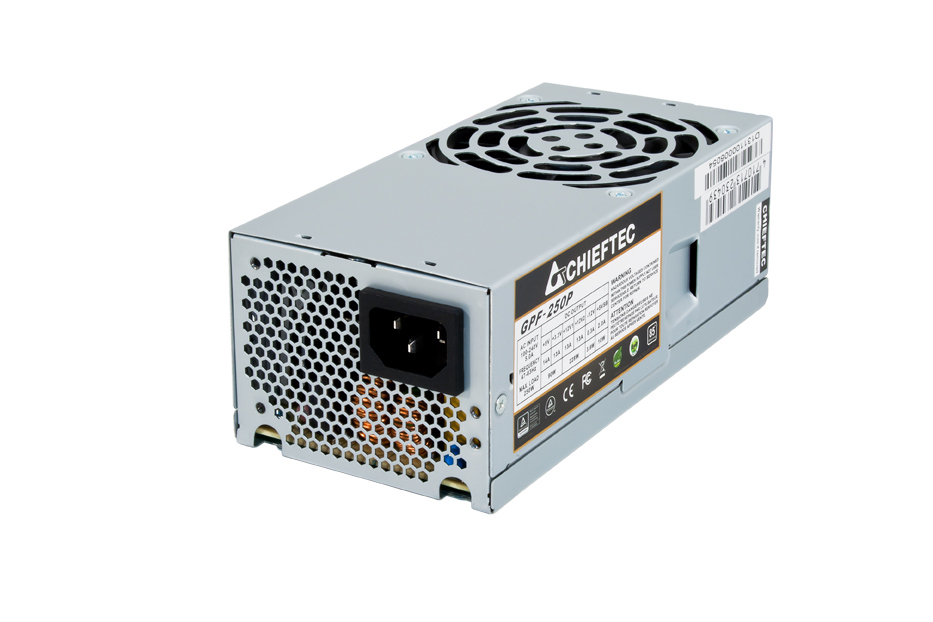

Chieftec GPF-250P power supply unit 250 W 20+4 pin ATX TFX Silver
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 250 W
- Depth
- 175 mm
- Width
- 86 mm
- Height
- 65 mm
- Efficiency
- 85
- Fan size
- 80
- Power factor
- 0.9
- Input current
- 5
- Number of fans
- Y
1 / 2
Shopping actions
Overview
The Chieftec GPF-250P power supply unit 250 W 20+4 pin ATX TFX Silver features 250 W output and a 80 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
175 mm
Width
86 mm
Height
65 mm
Colour
Silver
Cooling
2 SPECS
Fan size
80
Number of fans
1
Power
1 SPEC
Wattage
250 W
General
32 SPECS
Efficiency
85
Power factor
0.9
Input current
5
AC input voltage
100 - 240
AC input frequency
47 - 63
Combined power (+5V)
90
Combined power (+12V)
228
Combined power (-12V)
3.6
PCI Express connector
No
Combined power (+3.3V)
90
Combined power (+5Vsb)
10
Compliance certificates
RoHS
CPU P4 connector (4-pin)
1
Max output current (+5V)
14
Max output current (-12V)
0.3
Power protection features
Over voltage,Overload,Short circuit,Under voltage
Max output current (+12V1)
13
Max output current (+12V2)
13
Max output current (+3.3V)
13
Max output current (+5Vsb)
2
EPS power connector (8-pin)
No
Floppy disk drive connector
No
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
0
Maximum input current (@110V)
+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
ATX power connector (20+4 pin)
Yes
Number of SATA power connectors
2
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
TFX
PCI Express power connectors (6-pin)
0
PCI Express power connectors (6+2 pin)
0
Peripheral (Molex) power connectors (4-pin)
2
