MPN:
GPA-450B8

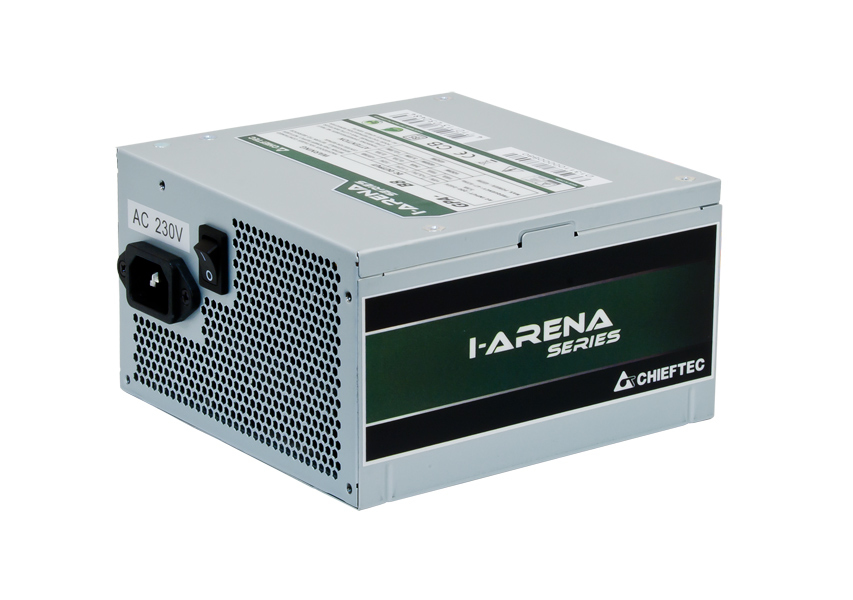

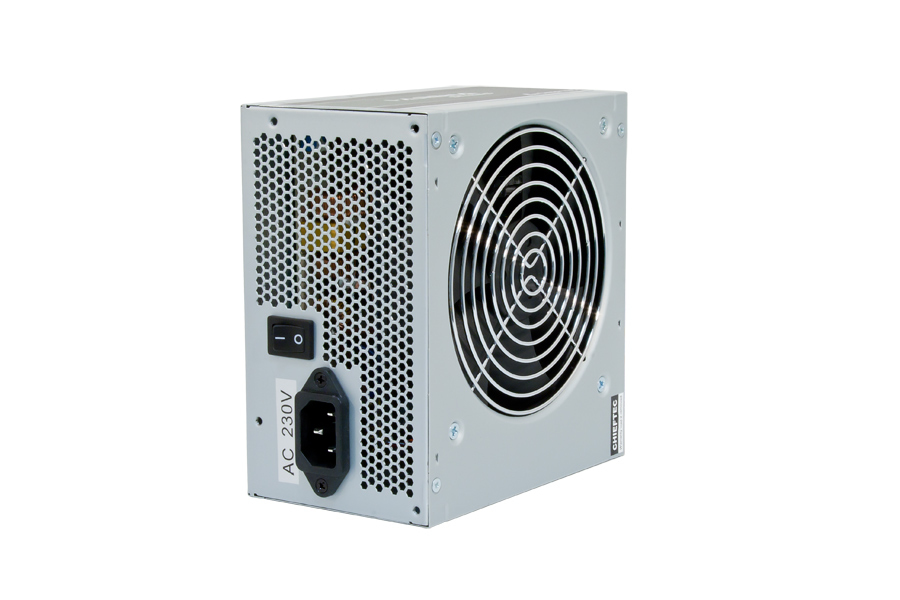

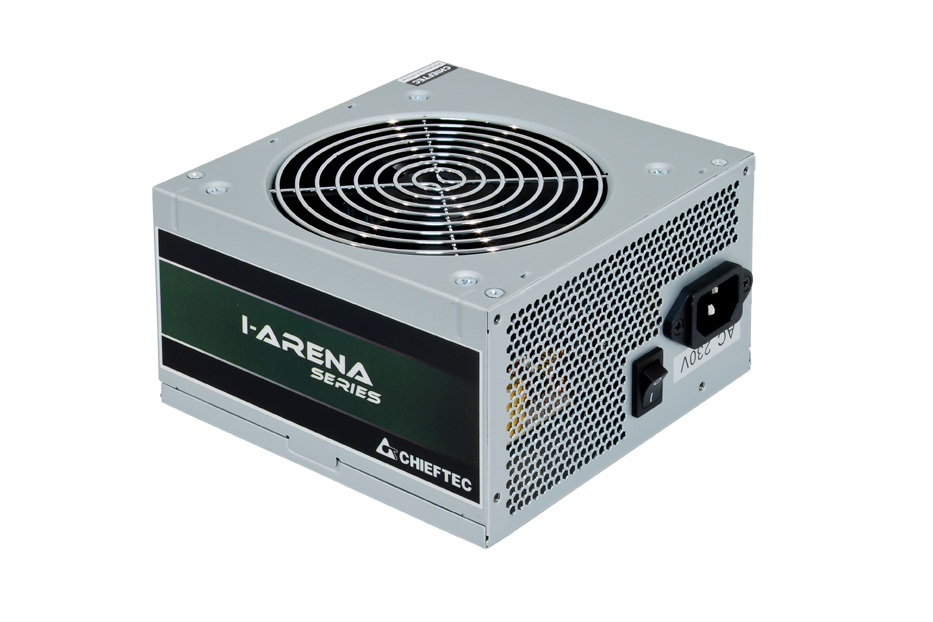

Chieftec GPA-450B8 power supply unit 450 W 20+4 pin ATX PS/2 Metallic
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 450 W
- Depth
- 140 mm
- Width
- 150 mm
- Height
- 87 mm
- Purpose
- PC
- Cabling type
- Non-Modular
- Fan size
- 120
- Colour
- Metallic
- AC input voltage
- 230
1 / 3
Shopping actions
Overview
The Chieftec GPA-450B8 power supply unit 450 W 20+4 pin ATX PS/2 Metallic features 450 W output and a 120 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
140 mm
Width
150 mm
Height
87 mm
Colour
Metallic
Power
1 SPEC
Wattage
450 W
Cooling
1 SPEC
Fan size
120
General
23 SPECS
Purpose
PC
Cabling type
Non-Modular
AC input voltage
230
AC input frequency
47 - 63
Combined power (+5V)
110
Combined power (-12V)
3.6
Combined power (+3.3V)
110
Combined power (+5Vsb)
12.5
Compliance certificates
RoHS
Max output current (+5V)
18
Max output current (-12V)
0.3
Power protection features
Over voltage,Overload,Short circuit,Under voltage
Max output current (+12V1)
38
Max output current (+3.3V)
18
Max output current (+5Vsb)
2.5
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Number of SATA power connectors
3
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
PS/2
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
2
