MPN:
CTG-550-80P

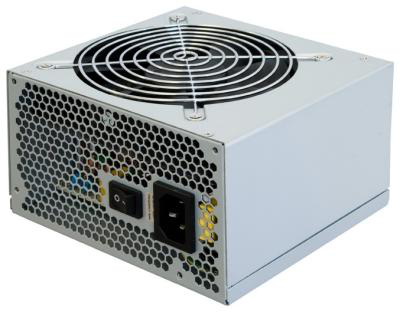

Chieftec CTG-550-80P power supply unit 550 W ATX Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 550 W
- Efficiency rating
- 80 PLUS
- Depth
- 140 mm
- Width
- 150 mm
- Height
- 87 mm
- Purpose
- PC
- Efficiency
- 80
- ATX version
- 2.3
- Cabling type
- Non-Modular
Shopping actions
Overview
The Chieftec CTG-550-80P power supply unit 550 W ATX Grey features 550 W output, 80 PLUS 80 PLUS efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
140 mm
Width
150 mm
Height
87 mm
Colour
Grey
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Power
2 SPECS
Wattage
550 W
Efficiency rating
80 PLUS
General
23 SPECS
Purpose
PC
Efficiency
80
ATX version
2.3
Cabling type
Non-Modular
Fan location
Top
Input current
5
AC input voltage
230
AC input frequency
50
Dimensions
150 x 140 x 87
Combined power (+5V)
150
Combined power (-12V)
3.6
Combined power (+3.3V)
150
Combined power (+5Vsb)
12.5
Max output current (+5V)
25
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Short circuit
Max output current (+12V1)
25
Max output current (+12V2)
25
Max output current (+3.3V)
25
Max output current (+5Vsb)
2.5
Maximum input current (@110V)
+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
