MPN:
CTB-450S

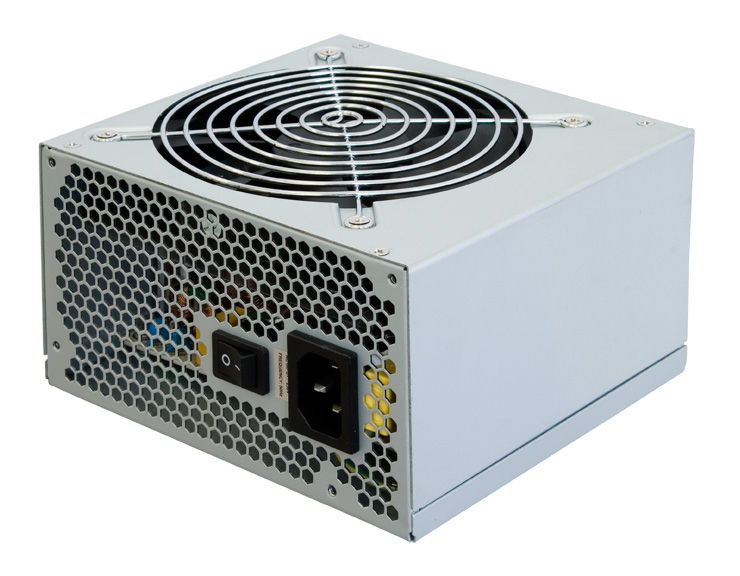

Chieftec CTB-450S power supply unit 450 W 24-pin ATX ATX Grey
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 450 W
- Efficiency rating
- 80 PLUS
- Purpose
- PC
- Peak power
- 450
- ATX version
- 2.3
- Noise level
- 24
- Cabling type
- Non-Modular
- Fan size
- 120
- Number of fans
- Y
Shopping actions
Overview
The Chieftec CTB-450S power supply unit 450 W 24-pin ATX ATX Grey features 450 W output, 80 PLUS 80 PLUS efficiency and a 120 mm fan. Full verified specifications are listed below.
Technical Specifications
Power
2 SPECS
Wattage
450 W
Efficiency rating
80 PLUS
Physical
1 SPEC
Colour
Grey
Cooling
2 SPECS
Fan size
120
Number of fans
1
General
27 SPECS
Purpose
PC
Peak power
450
ATX version
2.3
Noise level
24
Cabling type
Non-Modular
Certifications
FCC, CE, CB, RoHS
AC input voltage
230
Dimensions
150 x 140 x 87
Combined power (+5V)
120
Combined power (+12V)
350
Combined power (-12V)
3.6
Combined power (+3.3V)
120
Combined power (+5Vsb)
12.5
CPU P4 connector (4-pin)
1
Max output current (+5V)
20
Max output current (+12V)
20
Max output current (-12V)
0.3
Power protection features
Over current,Over voltage,Overload,Short circuit,Under voltage,Overheating
Max output current (+3.3V)
24
Max output current (+5Vsb)
2.5
Motherboard power connector
24-pin ATX
Floppy drive power connector
1
Number of SATA power connectors
4
MTBF
100000 h
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6-pin)
1
Peripheral (Molex) power connectors (4-pin)
3
