MPN:
CPS-750S

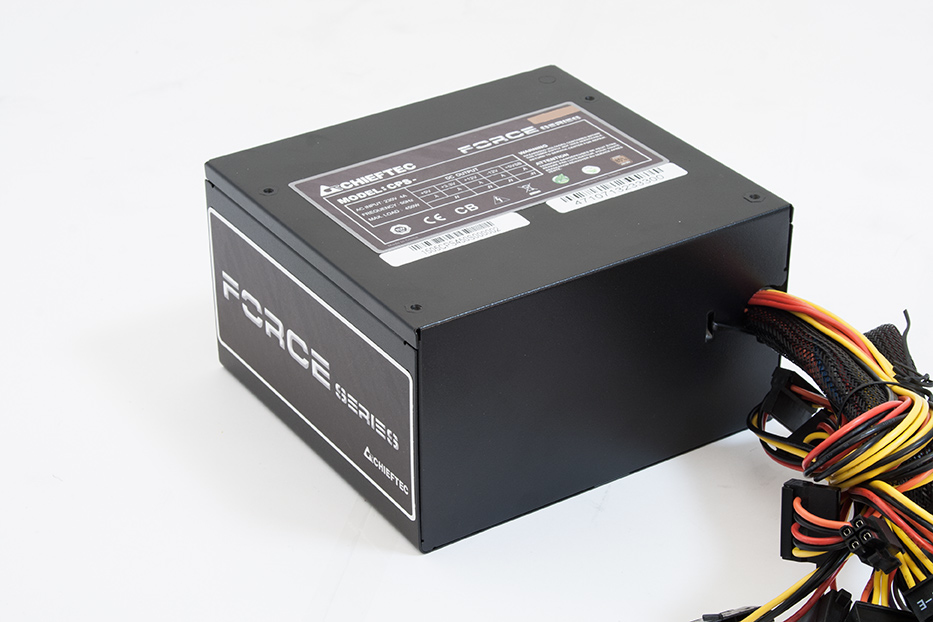

Chieftec CPS-750S power supply unit 750 W 24-pin ATX PS/2 Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 750 W
- Depth
- 140 mm
- Width
- 150 mm
- Height
- 86 mm
- Manual included
- Y
- Purpose
- PC
- Efficiency
- 85
- ATX version
- 2.3
- Cabling type
- Non-Modular
1 / 4
Shopping actions
Overview
The Chieftec CPS-750S power supply unit 750 W 24-pin ATX PS/2 Black features 750 W output, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
140 mm
Width
150 mm
Height
86 mm
Colour
Black
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Power
1 SPEC
Wattage
750 W
General
27 SPECS
Manual included
Yes
Purpose
PC
Efficiency
85
ATX version
2.3
Cabling type
Non-Modular
Fan location
Top
Power factor
0.9
On/off switch
Yes
Warranty card
Yes
AC input voltage
230
AC input frequency
50
Combined power (+5V)
130
Combined power (+3.3V)
130
Max output current (+5V)
22
Max output current (-12V)
0.3
Power protection features
Over voltage,Overload,Short circuit,Under voltage
Max output current (+12V1)
56.25
Max output current (+3.3V)
22
Max output current (+5Vsb)
2.5
Motherboard power connector
24-pin ATX
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V1,+3.3V,+5V,+5Vsb
Number of SATA power connectors
6
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
PS/2
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
2
