MPN:
BPS-700S2

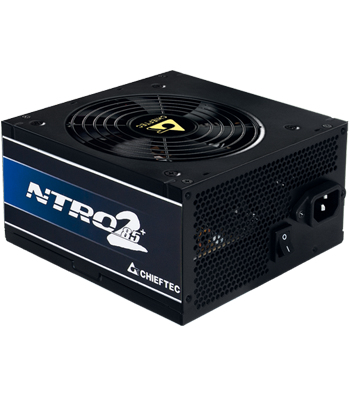

Chieftec BPS-700S2 power supply unit 700 W 20+4 pin ATX ATX Silver
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 700 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 140 mm
- Width
- 150 mm
- Height
- 87 mm
- Purpose
- PC
- Efficiency
- 85
- ATX version
- 2.3
- Cabling type
- Non-Modular
Shopping actions
Overview
The Chieftec BPS-700S2 power supply unit 700 W 20+4 pin ATX ATX Silver features 700 W output, 80 PLUS 80 PLUS Bronze efficiency and a 120 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
140 mm
Width
150 mm
Height
87 mm
Colour
Silver
Power
2 SPECS
Wattage
700 W
Efficiency rating
80 PLUS Bronze
Cooling
1 SPEC
Fan size
120
General
29 SPECS
Purpose
PC
Efficiency
85
ATX version
2.3
Cabling type
Non-Modular
Input current
10
AC input voltage
100 - 240
AC input frequency
47 - 63
Combined power (+5V)
120
Combined power (+12V)
628
Combined power (+3.3V)
120
Compliance certificates
RoHS
Max output current (+5V)
18
Max output current (-12V)
0.3
Power protection features
Over voltage,Overload,Short circuit,Under voltage
Max output current (+12V1)
54
Max output current (+3.3V)
22
Max output current (+5Vsb)
2.5
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V1,+3.3V,+5V,+5Vsb,-12V
ATX power connector (20+4 pin)
Yes
Number of SATA power connectors
6
MTBF
100000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
3
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
