Chieftec logo MPN: BDK-650FC

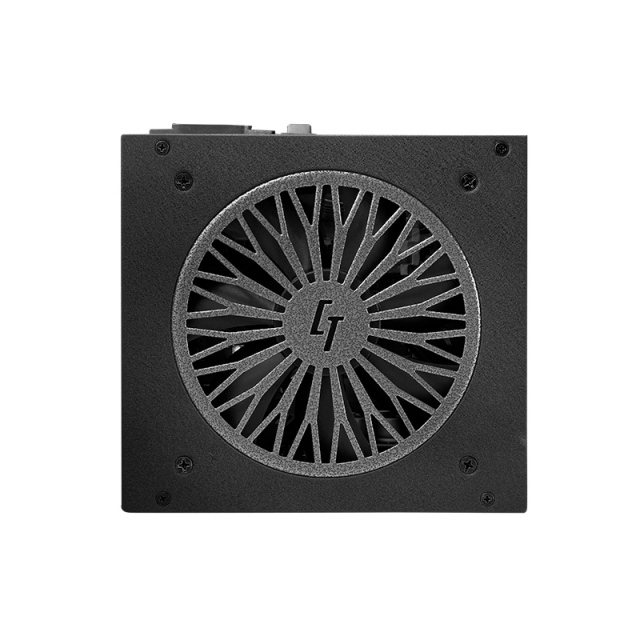

Chieftec BDK-650FC power supply unit 650 W 20+4 pin ATX ATX Black

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Wattage
650 W
Efficiency rating
80 PLUS Bronze
Depth
140 mm
Width
150 mm
Height
86 mm
Weight
1650 g
Purpose
PC/server
ATX version
2.3
Cabling type
Fully-Modular
View 46 specifications
1 / 10
Shopping actions
Check price on Amazon

Overview

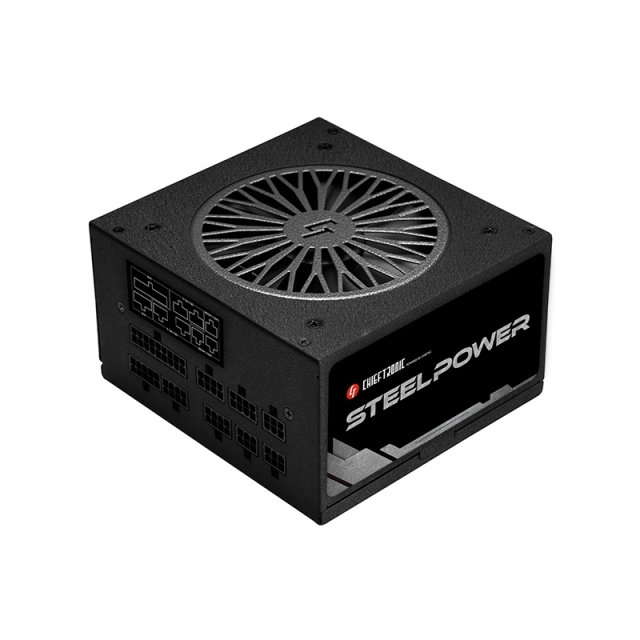

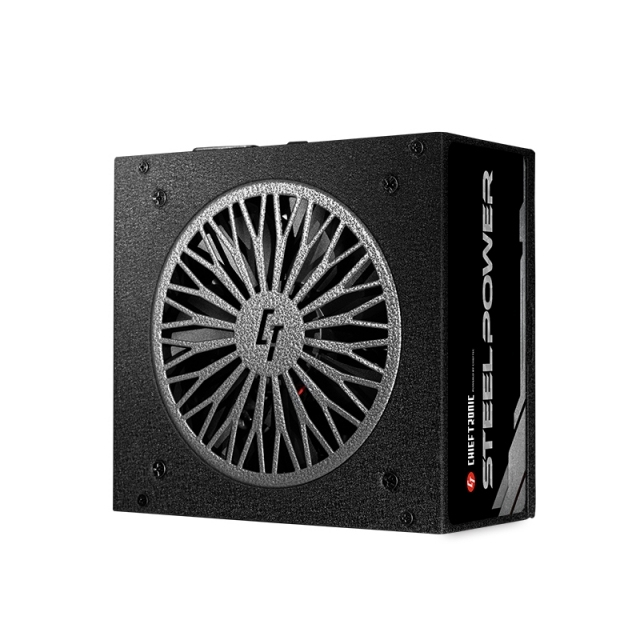

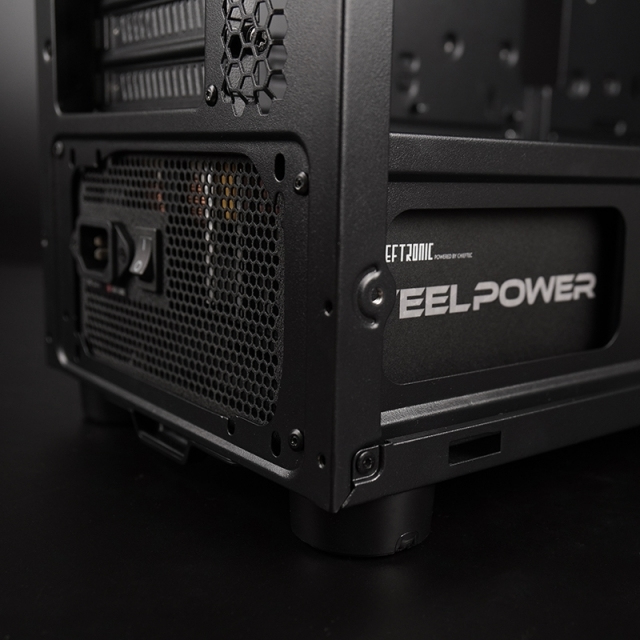

The SteelPower Series from Chieftronic brings many of the well-received and proven upmarket features and components from the PowerPlay series into the mainstream gamer’s market. Gamers can now benefit from the tight voltage regulation and low ripple thanks to the use of half-bridge LLC converters with DC-DC technology as well as premium Japanese capacitors in combination with 80PLUS Bronze efficiency and fully modular cable management. Offered in wattages of 550W, 650W and 750W, the SteelPower series benefits from a high power-density design allowing all the above mentioned to be packed into a compact 14cm long housing with a 120mm FDB silent fan. The design of the PSU comes in a rugged understated look.

Technical Specifications

Physical

6 SPECS
Depth
140 mm
Width
150 mm
Height
86 mm
Weight
1650 g
Colour
Black
Customs (HS) code
84733020

Logistics & Packaging

1 SPEC
Package weight
2200 g

Cooling

3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1

Power

2 SPECS
Wattage
650 W
Efficiency rating
80 PLUS Bronze

General

34 SPECS
Purpose
PC/server
ATX version
2.3
Cabling type
Fully-Modular
Power factor
0.9
Certifications
CB EAC FCC
Input current
10

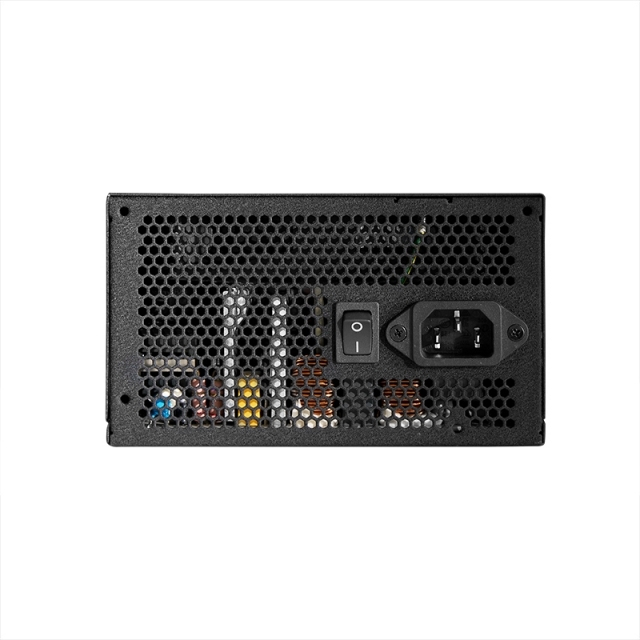

AC input voltage
100 - 240
AC input frequency
47 - 63
Bearing type
FDB
Combined power (+5V)
110
Combined power (+12V)
648
Combined power (-12V)
3.6
Combined power (+3.3V)
110
Combined power (+5Vsb)
12.5
Compliance certificates
CE,RoHS
SATA power cable length
150,500
Max output current (+5V)
20
Max output current (+12V)
54
Max output current (-12V)
0.3
Power protection features
Over current,Over voltage,Overheating,Overload,Short circuit,Under voltage
Sustainability compliance
Yes
Max output current (+3.3V)
20
Max output current (+5Vsb)
2.5

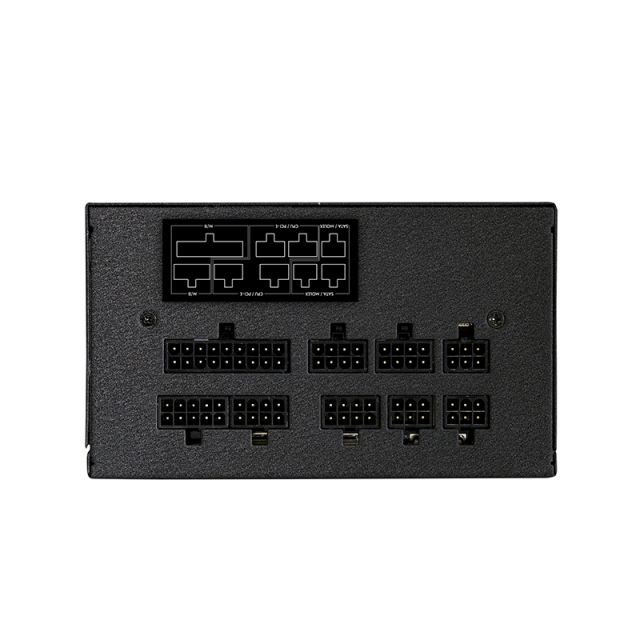

Motherboard power connector
20+4 pin ATX
Eco certifications
ErP
Floppy drive power connector
1
EPS power connector (4+4 pin)
Yes
Motherboard power cable length
650
Number of SATA power connectors
6
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
Peripheral (Molex) power cable length
500
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
3
Powered by Icecat

Market Value History

Price history not started yet

Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.

Sources

Icecat product datasheet

Product lifecycle

In production

Still listed as on-market by the manufacturer — actively sold and supported.

Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
