MPN:
APS-650SB

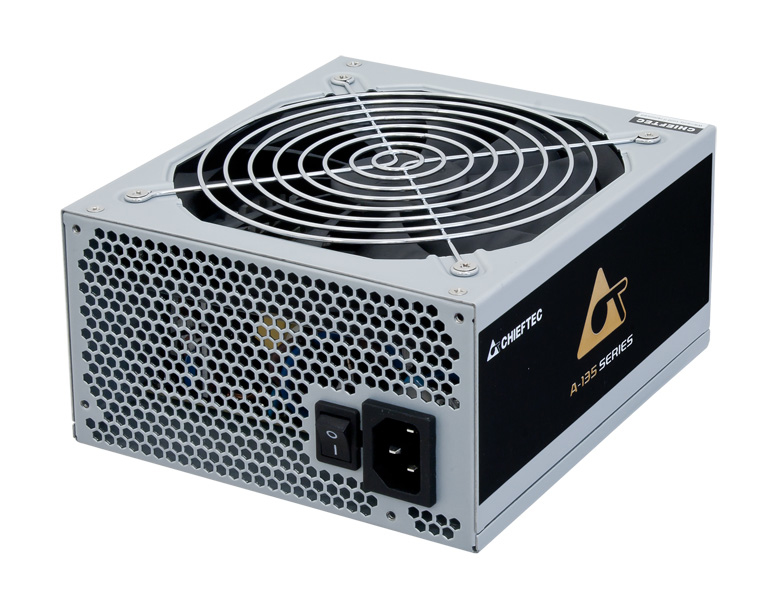

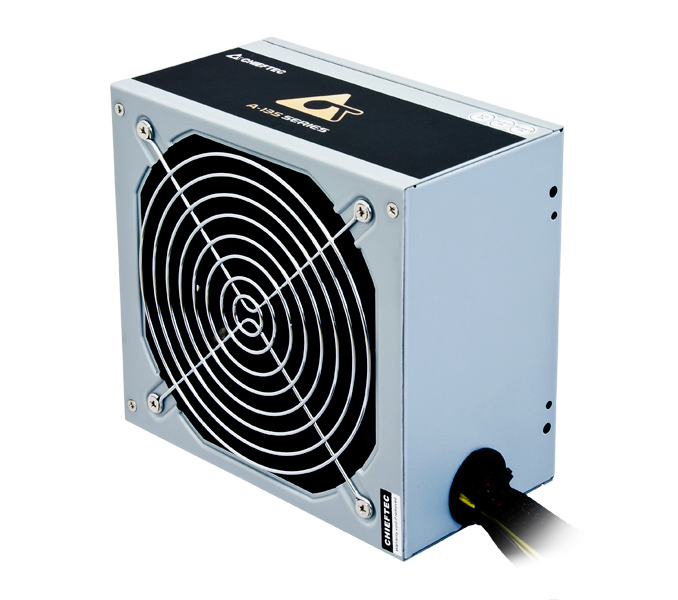

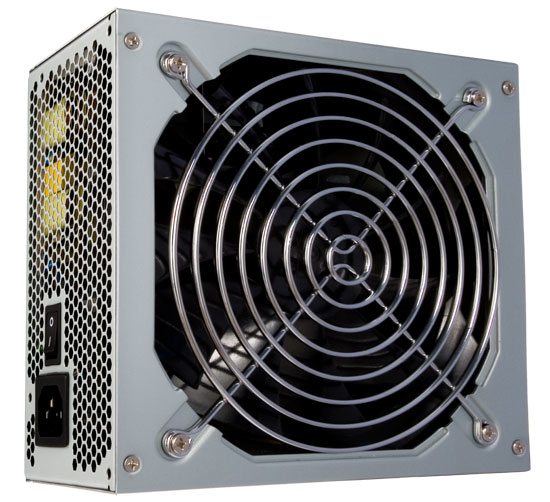

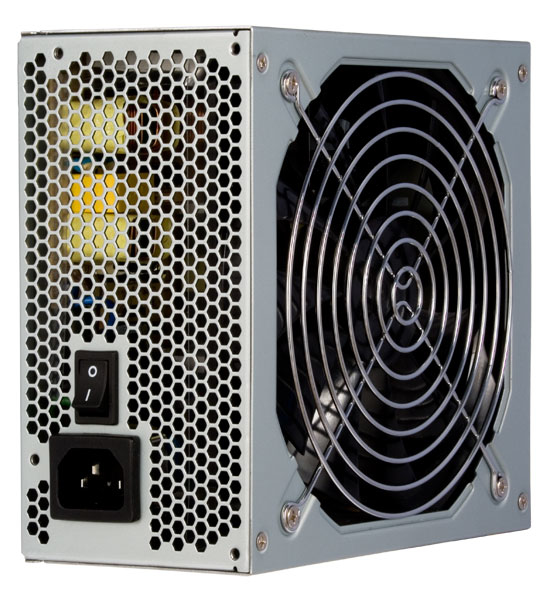

Chieftec APS-650SB power supply unit 650 W 24-pin ATX PS/2 Silver
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 650 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 155 mm
- Width
- 150 mm
- Height
- 87 mm
- ATX version
- 2.3
- Cabling type
- Non-Modular
- Fan size
- 140
- Colour
- Silver
1 / 7
Shopping actions
Overview
The Chieftec APS-650SB power supply unit 650 W 24-pin ATX PS/2 Silver features 650 W output, 80 PLUS 80 PLUS Bronze efficiency and a 140 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
4 SPECS
Depth
155 mm
Width
150 mm
Height
87 mm
Colour
Silver
Power
2 SPECS
Wattage
650 W
Efficiency rating
80 PLUS Bronze
Cooling
1 SPEC
Fan size
140
General
22 SPECS
ATX version
2.3
Cabling type
Non-Modular
AC input voltage
115 - 230
AC input frequency
50 - 60
Combined power (+5V)
120
Combined power (+3.3V)
120
Compliance certificates
RoHS
Max output current (+5V)
22
Max output current (-12V)
0.3
Power protection features
Over voltage,Overload,Short circuit,Under voltage
Max output current (+12V1)
26
Max output current (+12V2)
26
Max output current (+3.3V)
22
Max output current (+5Vsb)
2.5
EPS power connector (8-pin)
Yes
Motherboard power connector
24-pin ATX
Floppy drive power connector
1
Maximum input current (@110V)
+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
PS/2
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
3
