MPN:
BN194

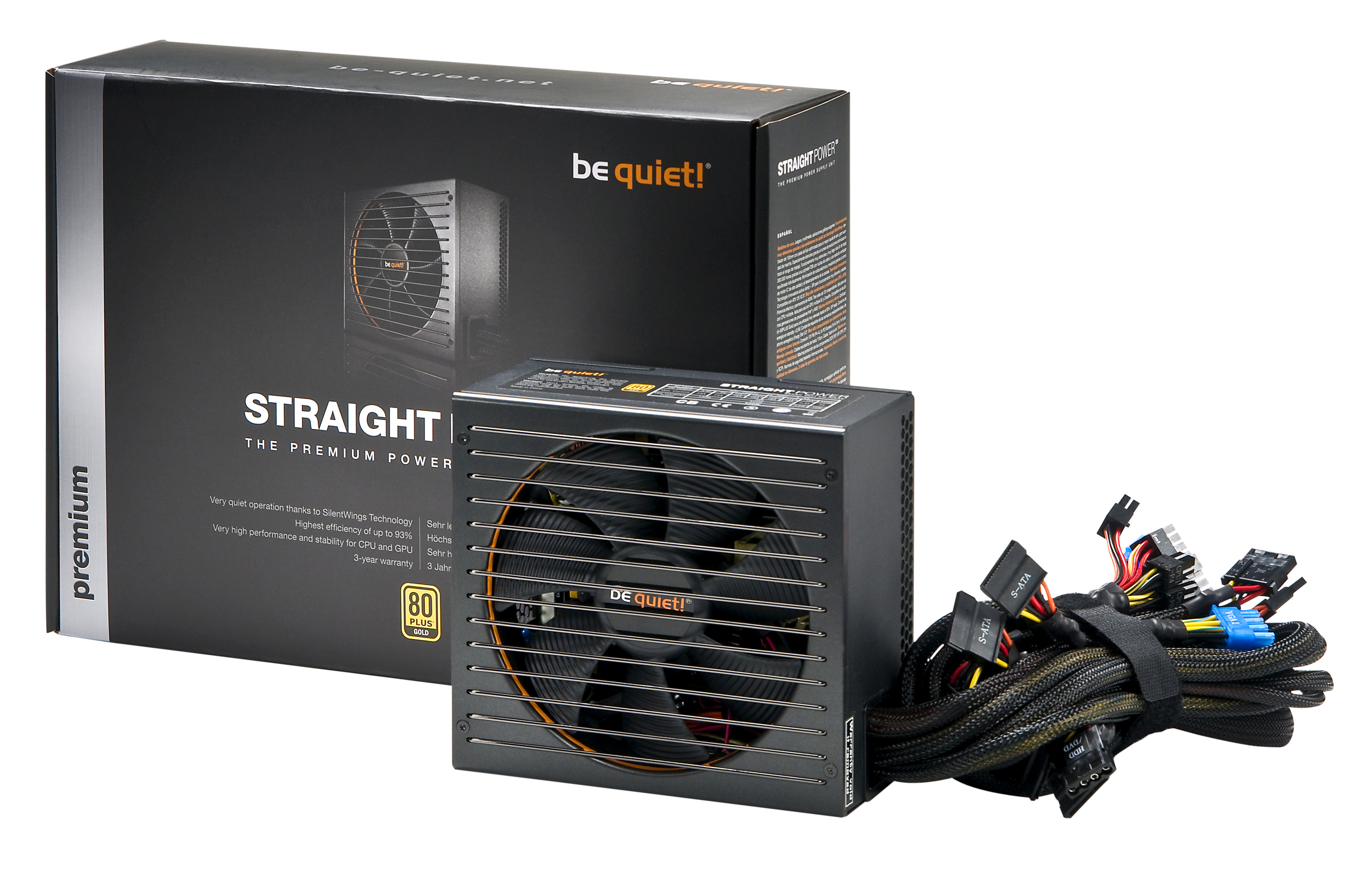

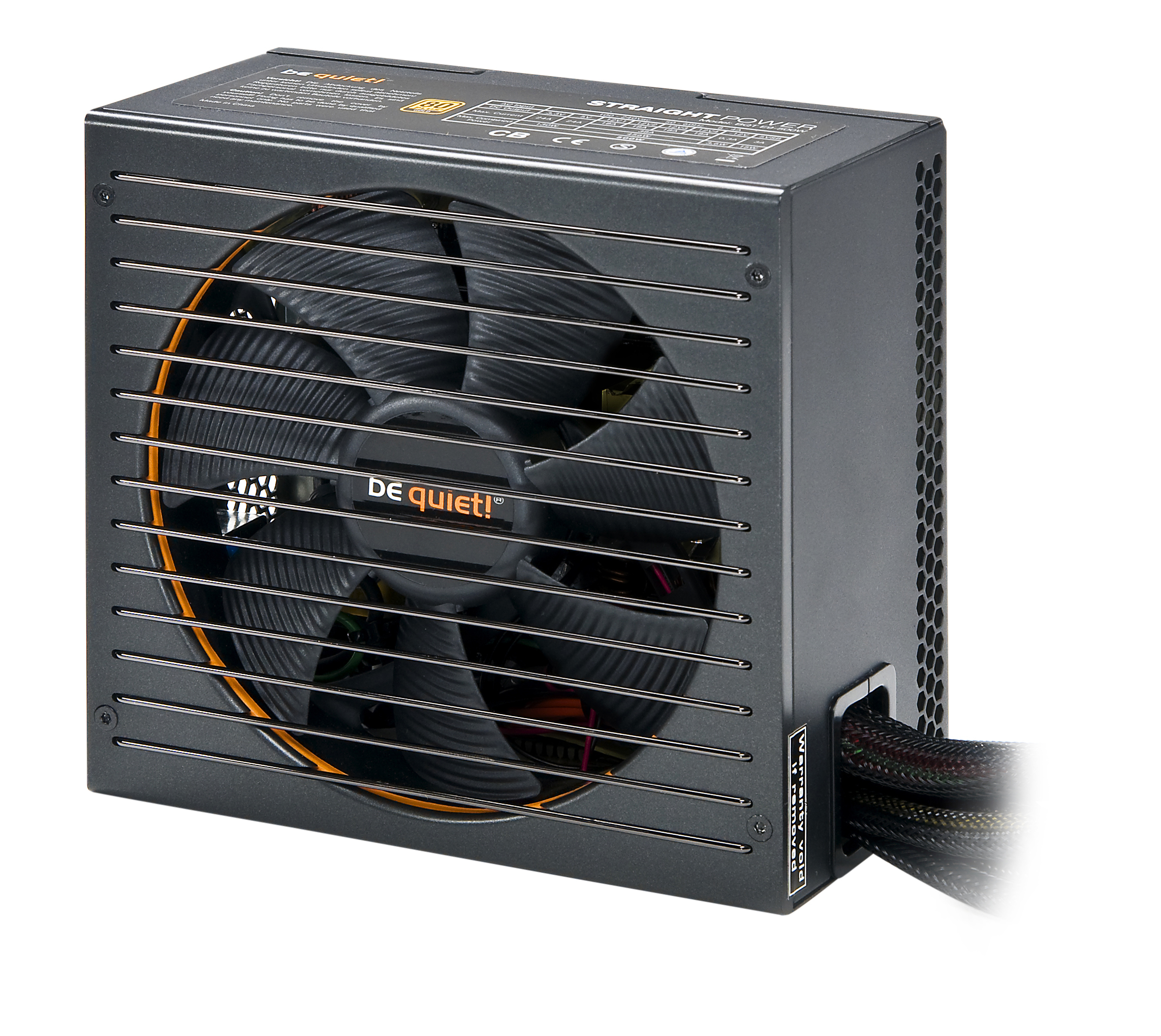

be quiet! Straight Power E9 power supply unit 700 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 700 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 160 mm
- Width
- 150 mm
- Height
- 86 mm
- Weight
- 2510 g
- Purpose
- PC
- Fan speed
- 1410
- Hold time
- 19
1 / 5
Shopping actions
Overview
The be quiet! Straight Power E9 power supply unit 700 W 20+4 pin ATX ATX Black features 700 W output, 80 PLUS 80 PLUS Gold efficiency, a 135 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
160 mm
Width
150 mm
Height
86 mm
Weight
2510 g
Colour
Black
Logistics & Packaging
1 SPEC
Package weight
2930 g
Cooling
3 SPECS
Cooling type
Active
Fan size
135
Number of fans
1
Power
2 SPECS
Wattage
700 W
Efficiency rating
80 PLUS Gold
General
45 SPECS
Purpose
PC
Fan speed
1410
Hold time
19
Efficiency
93.1
Peak power
770
ATX version
2.31
EPS version
2.92
Noise level
23.8
Cabling type
Non-Modular
Power factor
0.99
Certifications
CE, CB, TÜV, Semko (S)
Input current
5 - 10
AC input voltage
100 - 240
AC input frequency
50 - 60
Bearing type
FDB
Combined power (+5V)
160
Combined power (+12V)
672
Combined power (+3.3V)
160
Compliance certificates
RoHS
CPU P4 connector (4-pin)
1
Max output current (+5V)
28
Max output current (+12V)
56
Max output current (-12V)
0.5
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+12V1)
18
Max output current (+12V2)
18
Max output current (+12V3)
22
Max output current (+12V4)
22
Max output current (+3.3V)
28
Max output current (+5Vsb)
3
Package dimensions (WxDxH)
248 x 328 x 102
Motherboard power connector
20+4 pin ATX
Eco certifications
ENERGY STAR
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Noise level (quiet mode, 50%)
13.7
Noise level (silent mode, <30%)
13.7
Number of SATA power connectors
9
MTBF
300000 h
Noise level (full-load mode, 100%)
23.8
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
6
