MPN:
BN307

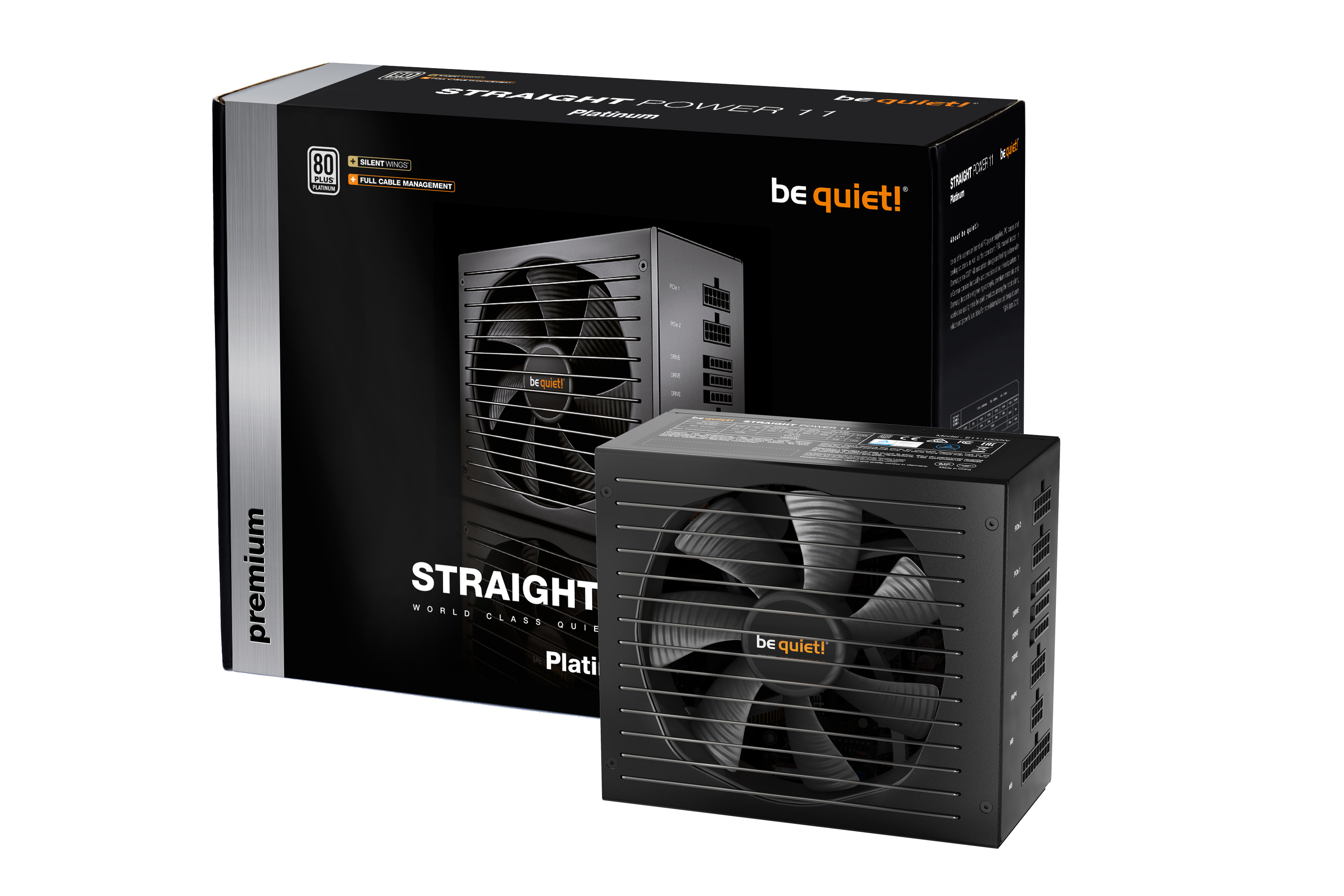

be quiet! Straight Power 11 750W Platinum power supply unit 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 750 W
- Efficiency rating
- 80 PLUS Platinum
- Depth
- 160 mm
- Width
- 150 mm
- Height
- 86 mm
- Manual included
- Y
- Weight
- 1697 g
- Purpose
- PC
- Fan speed
- 0 - 2600
1 / 6
Shopping actions
Overview
The be quiet! Straight Power 11 750W Platinum power supply unit 20+4 pin ATX ATX Black features 750 W output, 80 PLUS 80 PLUS Platinum efficiency, a 135 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Logistics & Packaging
8 SPECS
Package depth
328 mm
Package width
248 mm
Package height
102 mm
Package weight
3040 g
Master (outer) case width
282
Master (outer) case height
346
Master (outer) case length
651
Master (outer) case gross weight
24470
Power
2 SPECS
Wattage
750 W
Efficiency rating
80 PLUS Platinum
Physical
6 SPECS
Depth
160 mm
Width
150 mm
Height
86 mm
Weight
1697 g
Colour
Black
Customs (HS) code
84733020
Cooling
3 SPECS
Cooling type
Active
Fan size
135
Number of fans
1
General
54 SPECS
Manual included
Yes
Purpose
PC
Fan speed
0 - 2600
Hold time
19.2
Efficiency
93.7
Peak power
820
ATX version
2.51
EPS version
2.92
Noise level
20.8
Cabling type
Fully-Modular
Fan location
Top
Packaging type
Box
Power factor
0.99
Certifications
CE, CB, TÜV, FCC, cTUVus, RCM (Australia), BSMI, CU (Russia), CCC
Input current
10/5
Screws included
Yes
AC input voltage
100 - 240
EPS cable length
700
AC input frequency
50 - 60
Bearing type
FDB
Cable ties included
Yes
Combined power (+5V)
130
Combined power (+12V)
750
Combined power (-12V)
3.6
Combined power (+3.3V)
130
Combined power (+5Vsb)
15
Compliance certificates
RoHS
Max output current (+5V)
25
Max output current (+12V)
62.5
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+12V1)
20
Max output current (+12V2)
20
Max output current (+12V3)
24
Max output current (+12V4)
24
Max output current (+3.3V)
25
Max output current (+5Vsb)
3
EPS power connector (8-pin)
Yes
Motherboard power connector
20+4 pin ATX
Eco certifications
ENERGY STAR
Floppy drive power connector
1
EPS power connector (4+4 pin)
Yes
Noise level (quiet mode, 50%)
9.3
Motherboard power cable length
600
PCI Express power cable length
600
Noise level (silent mode, <30%)
8.6
Number of PATA power connectors
4
Number of SATA power connectors
11
MTBF
100000 h
Noise level (full-load mode, 100%)
20.8
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Parallel processing technology support
Dual Graphics
