MPN:
BN214

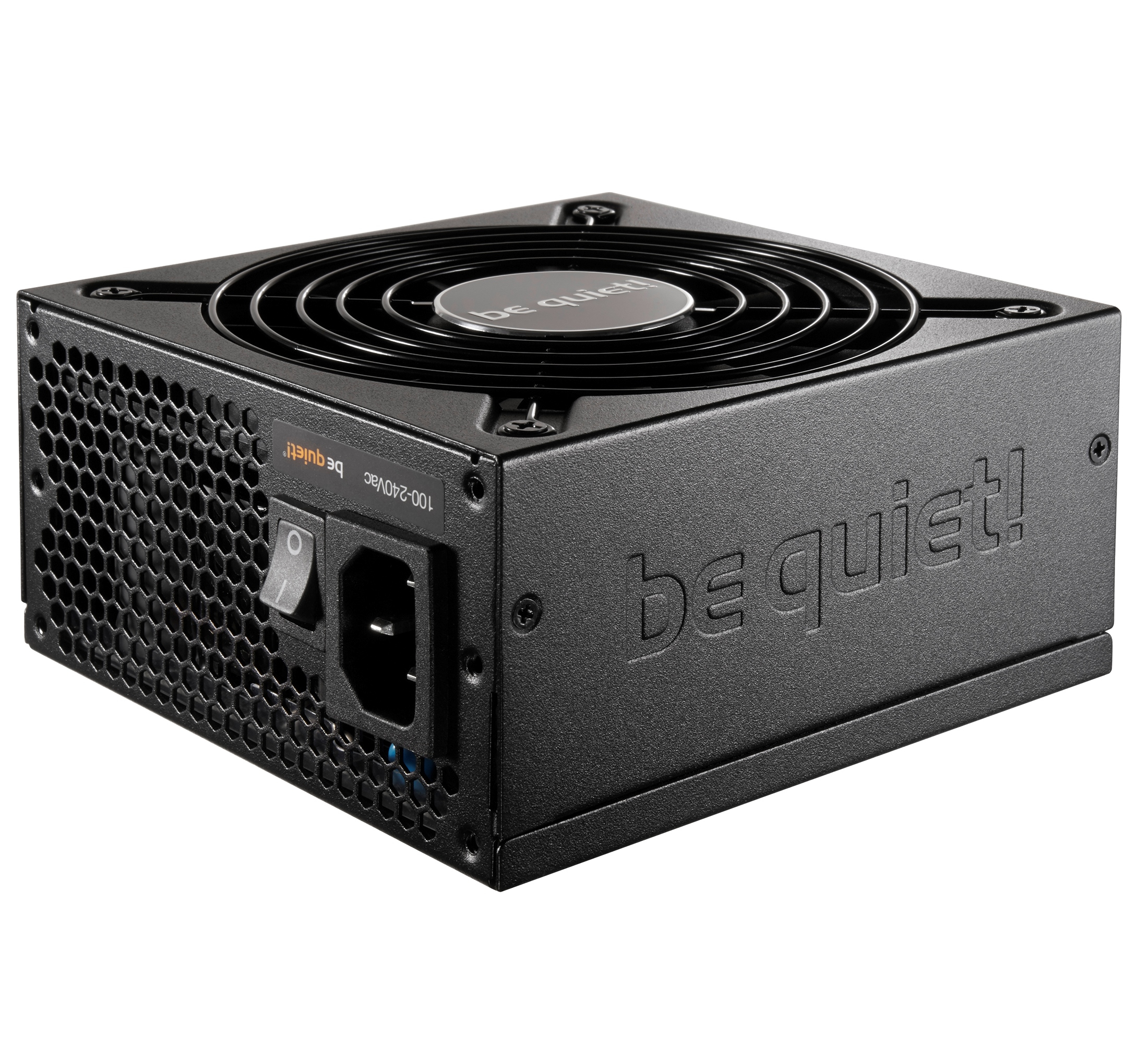

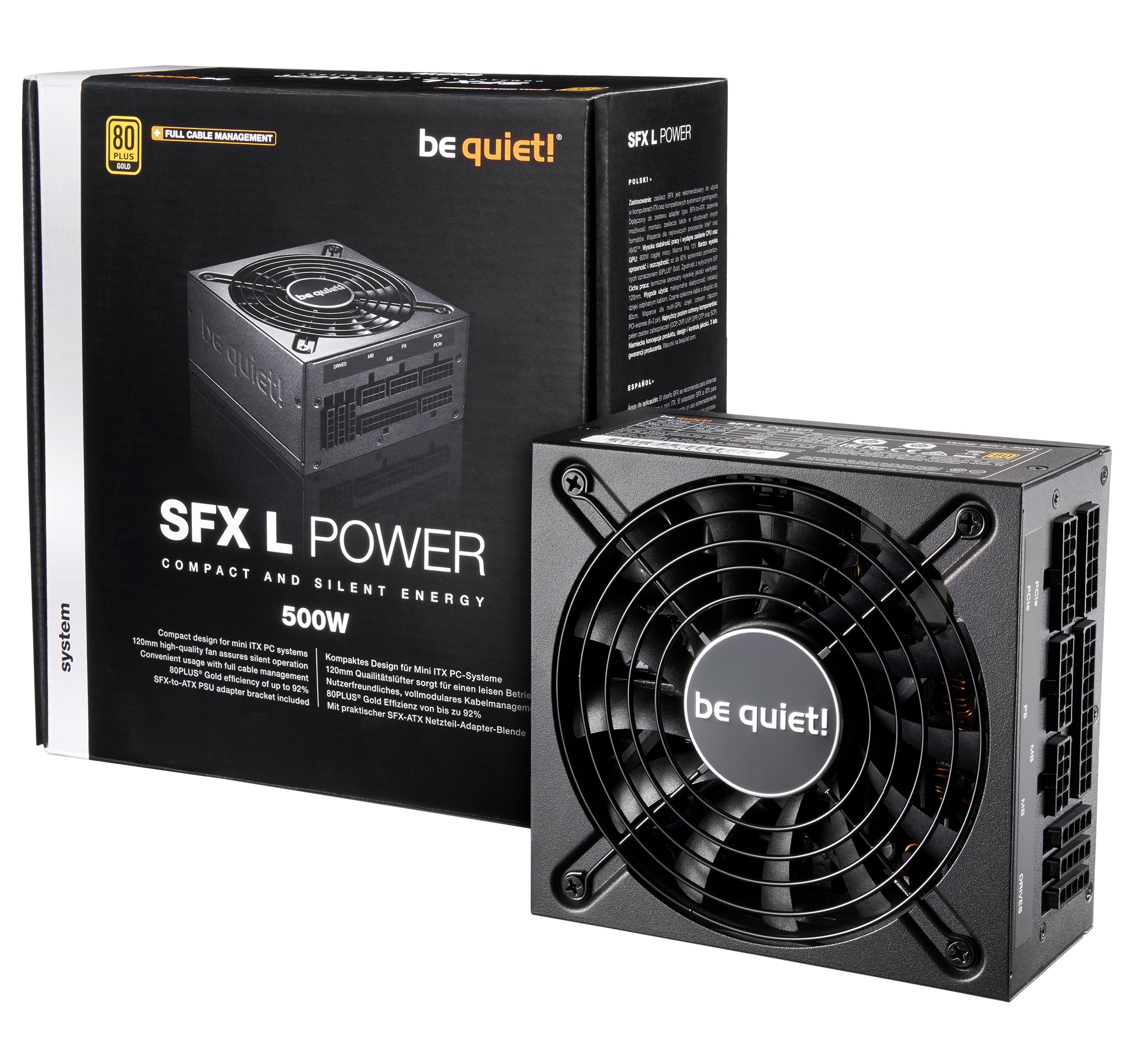

be quiet! SFX L power supply unit 500 W 20+4 pin ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 500 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 130 mm
- Width
- 125 mm
- Height
- 64 mm
- Manual included
- Y
- Weight
- 1140 g
- Purpose
- PC
- Efficiency
- 92
1 / 4
Shopping actions
Overview
The be quiet! SFX L power supply unit 500 W 20+4 pin ATX Black features 500 W output, 80 PLUS 80 PLUS Gold efficiency and a 120 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
130 mm
Width
125 mm
Height
64 mm
Weight
1140 g
Colour
Black
Cooling
2 SPECS
Fan size
120
Number of fans
1
Logistics & Packaging
4 SPECS
Package depth
220 mm
Package width
205 mm
Package height
80 mm
Package weight
2020 g
Power
2 SPECS
Wattage
500 W
Efficiency rating
80 PLUS Gold
General
44 SPECS
Manual included
Yes
Purpose
PC
Efficiency
92
Peak power
550
ATX version
2.4
Cabling type
Fully-Modular
Packaging type
Box
Power factor
0.95
Certifications
CE, CB, TÜV, FCC, cTUVus, RCM
Input current
10
On/off switch
Yes

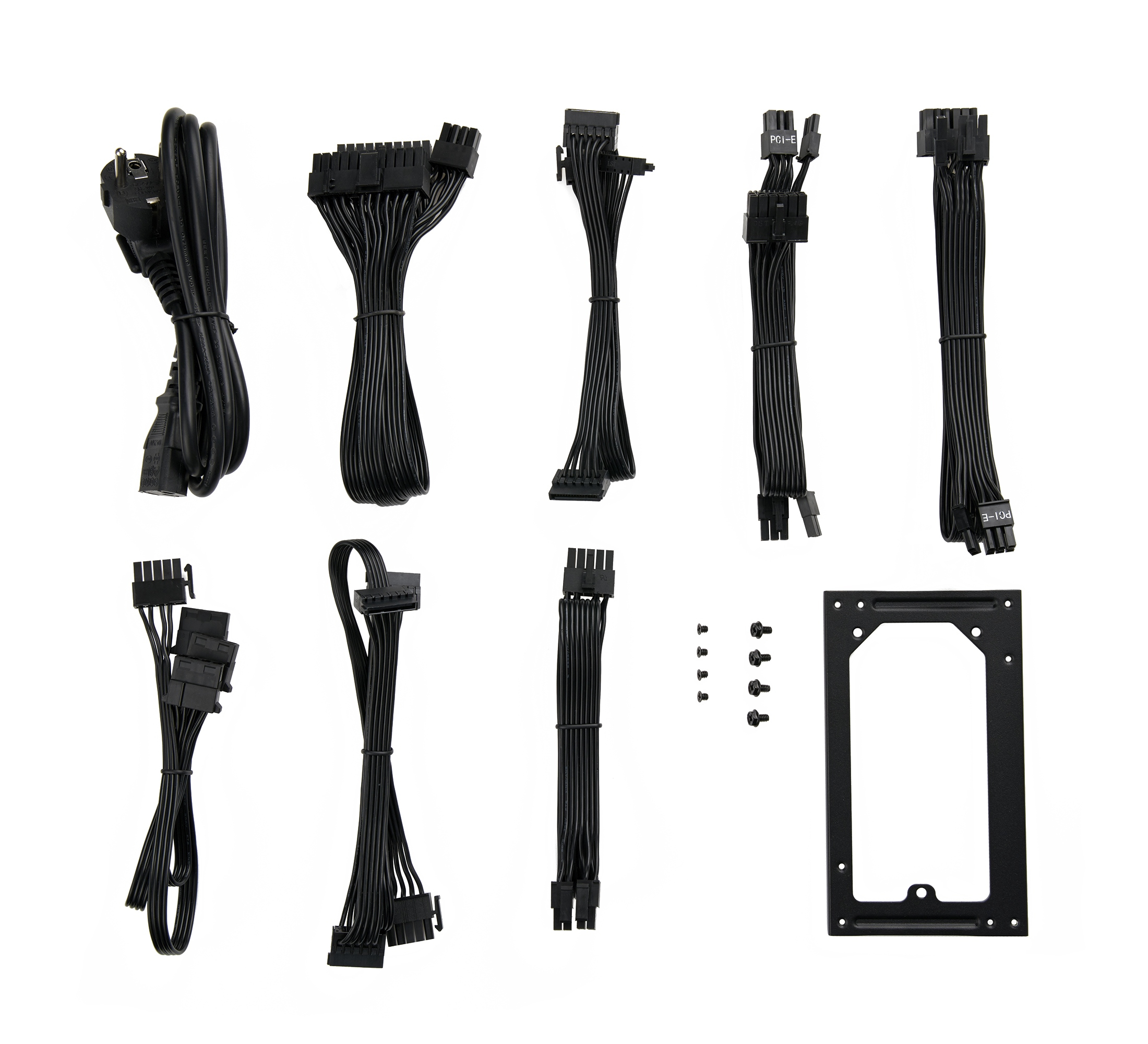

Included cables
AC,PCIe,SATA
Screws included
Yes
AC input voltage
100 - 240
Cable management
Yes
AC input frequency
50 - 60
Bearing type
Sleeve
Cable ties included
Yes
Combined power (+5V)
105
Combined power (+12V)
500
Combined power (-12V)
3.6
Combined power (+3.3V)
105
Combined power (+5Vsb)
15
Compliance certificates
RoHS
SATA power cable length
600,800
Max output current (+5V)
20
Max output current (+12V)
41.7
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+3.3V)
20
Max output current (+5Vsb)
3
Motherboard power connector
20+4 pin ATX
Eco certifications
ENERGY STAR
CPU power connector (4+4 pin)
Yes
Noise level (quiet mode, 50%)
14
Motherboard power cable length
300
Noise level (silent mode, <30%)
9.9
Number of SATA power connectors
6
MTBF
100000 h
Noise level (full-load mode, 100%)
28.5
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
SFX
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
3
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
