MPN:
BN224
be quiet! Pure Power L8 power supply unit 600 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 600 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 150 mm
- Width
- 150 mm
- Height
- 86 mm
- Weight
- 1930 g
- Purpose
- PC
- Hold time
- 16
- Efficiency
- 88
1 / 4
Shopping actions
Overview

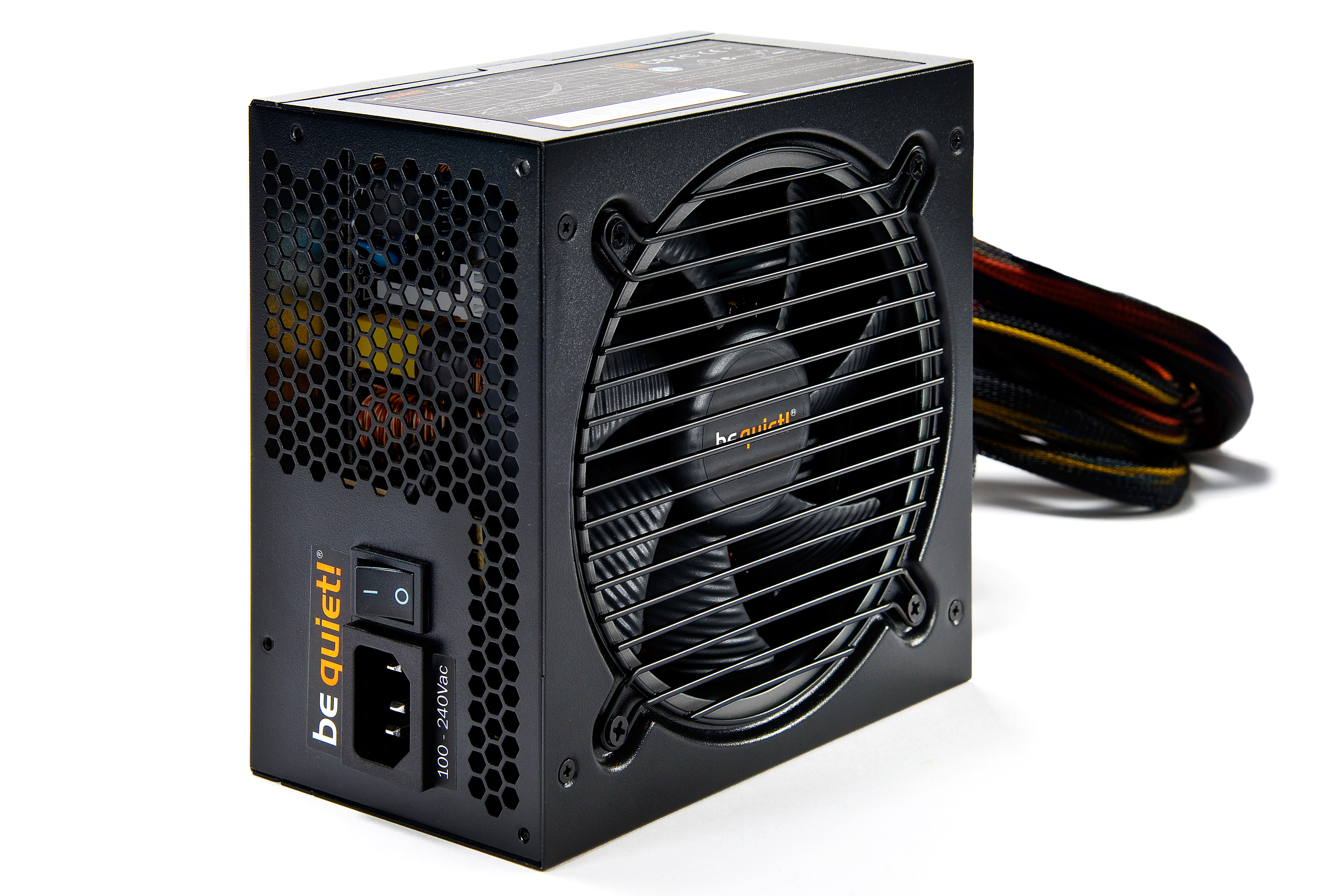

The be quiet! Pure Power L8 power supply unit 600 W 20+4 pin ATX ATX Black features 600 W output, 80 PLUS 80 PLUS Bronze efficiency and a 120 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
150 mm
Width
150 mm
Height
86 mm
Weight
1930 g
Colour
Black
Cooling
1 SPEC
Fan size
120
Logistics & Packaging
4 SPECS
Package depth
230 mm
Package width
105 mm
Package height
280 mm
Package weight
2400 g
Power
2 SPECS
Wattage
600 W
Efficiency rating
80 PLUS Bronze
General
40 SPECS
Purpose
PC
Hold time
16
Efficiency
88
Peak power
650
ATX version
2.4
EPS version
2.92
Noise level
27.4
Cabling type
Non-Modular
Power factor
0.97
Certifications
CE, CB, TUV, FCC, WEEE
Input current
8
AC input voltage
100 - 240
AC input frequency
50 - 60
Combined power (+5V)
140
Combined power (+12V)
540
Combined power (-12V)
3.6
Combined power (+3.3V)
140
Combined power (+5Vsb)
15
Compliance certificates
RoHS
Max output current (+5V)
18
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+12V1)
30
Max output current (+12V2)
30
Max output current (+3.3V)
25
Max output current (+5Vsb)
3
Motherboard power connector
20+4 pin ATX
Eco certifications
ENERGY STAR
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Noise level (quiet mode, 50%)
15.3
ATX power connector (20+4 pin)
Yes
Noise level (silent mode, <30%)
13.4
Number of SATA power connectors
5
MTBF
100000 h
Noise level (full-load mode, 100%)
27.4
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
4
