MPN:
BN181

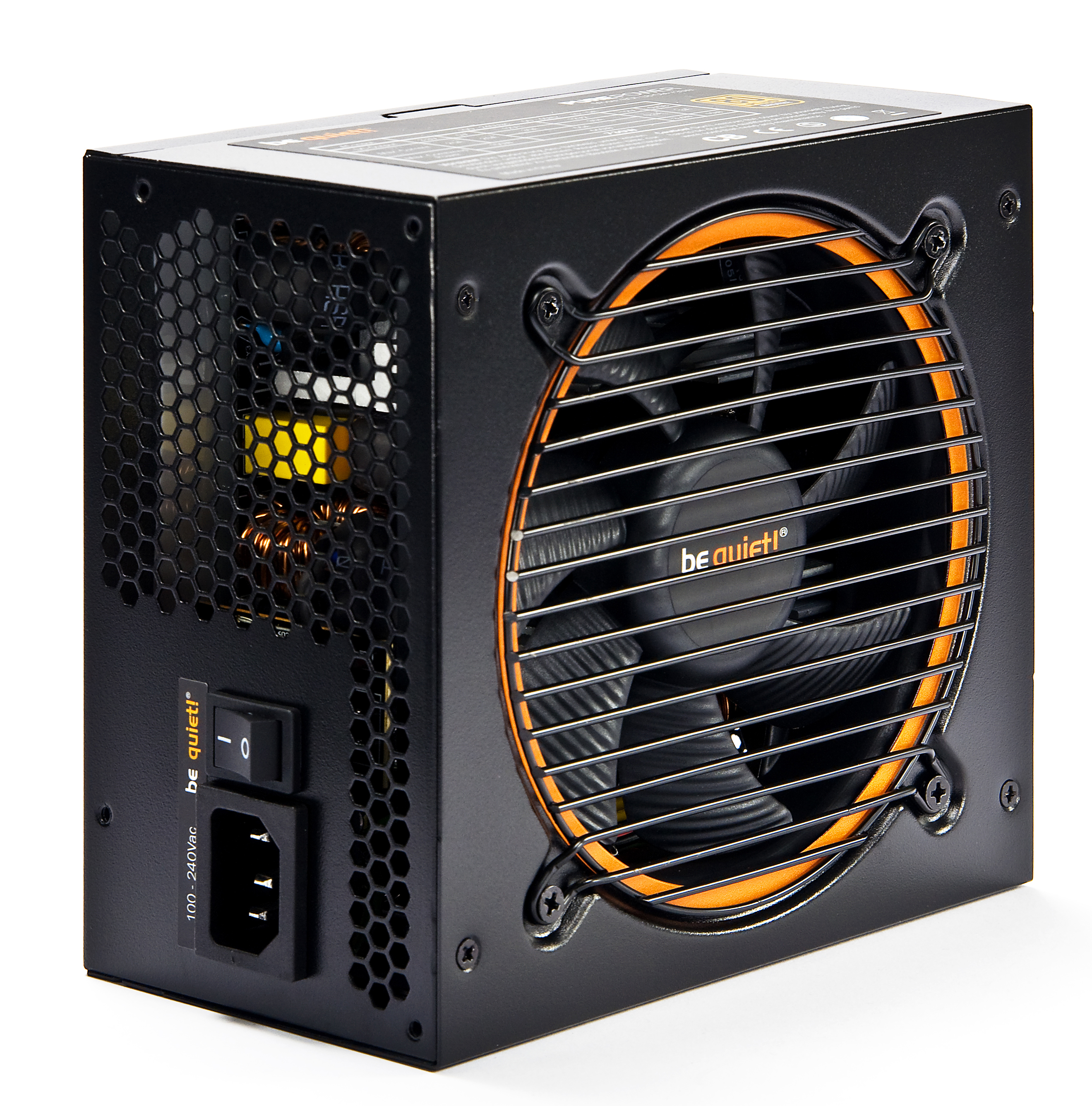

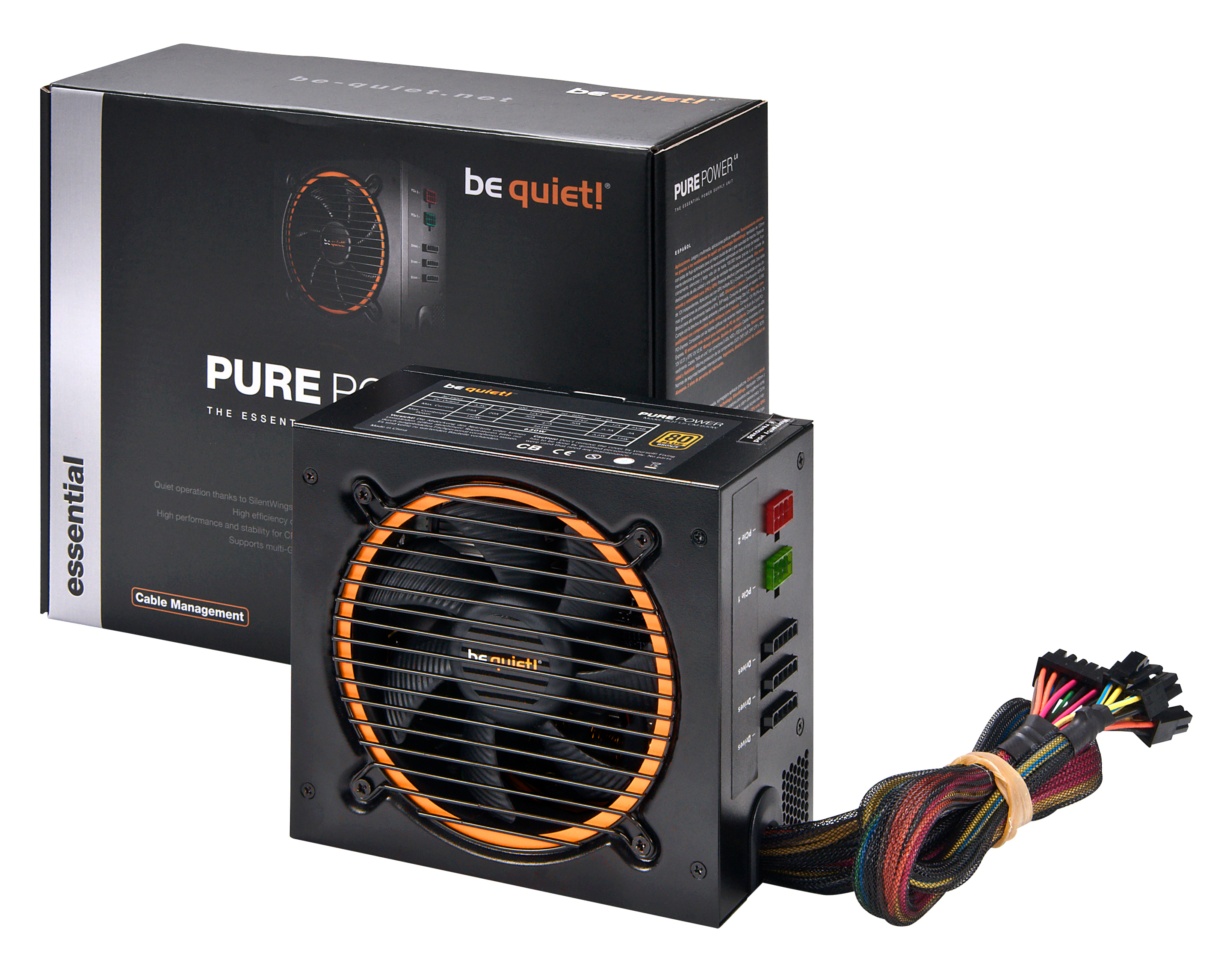

be quiet! Pure Power L8 CM power supply unit 530 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 530 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 160 mm
- Width
- 150 mm
- Height
- 86 mm
- Weight
- 1770 g
- Purpose
- PC
- Fan speed
- 1455
- Hold time
- 14
1 / 5
Shopping actions
Overview
The be quiet! Pure Power L8 CM power supply unit 530 W 20+4 pin ATX ATX Black features 530 W output, 80 PLUS 80 PLUS Bronze efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
160 mm
Width
150 mm
Height
86 mm
Weight
1770 g
Colour
Black
Logistics & Packaging
1 SPEC
Package weight
2550 g
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Power
2 SPECS
Wattage
530 W
Efficiency rating
80 PLUS Bronze
General
44 SPECS
Purpose
PC
Fan speed
1455
Hold time
14
Efficiency
88
Peak power
580
ATX version
2.3
EPS version
2.92
Noise level
23.8
Cabling type
Semi-Modular
Power factor
0.99
Certifications
ErP, WEEE, CE, CB, TUV
Input current
5 - 10
AC input voltage
100 - 240
AC input frequency
50 - 60
Combined power (+5V)
120
Combined power (+12V)
480
Combined power (-12V)
3.6
Combined power (+3.3V)
120
Combined power (+5Vsb)
15
Compliance certificates
RoHS
Max output current (+5V)
15
Max output current (+12V)
40
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+12V1)
28
Max output current (+12V2)
20
Max output current (+3.3V)
24
Max output current (+5Vsb)
3
Package dimensions (WxDxH)
105 x 230 x 280
Motherboard power connector
20+4 pin ATX
Operating temperature
0 - 40
Eco certifications
ENERGY STAR
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Noise level (quiet mode, 50%)
17.2
Noise level (silent mode, <30%)
16.5
Number of SATA power connectors
5
MTBF
100000 h
Noise level (full-load mode, 100%)
23.8
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
4
