MPN:
BN108

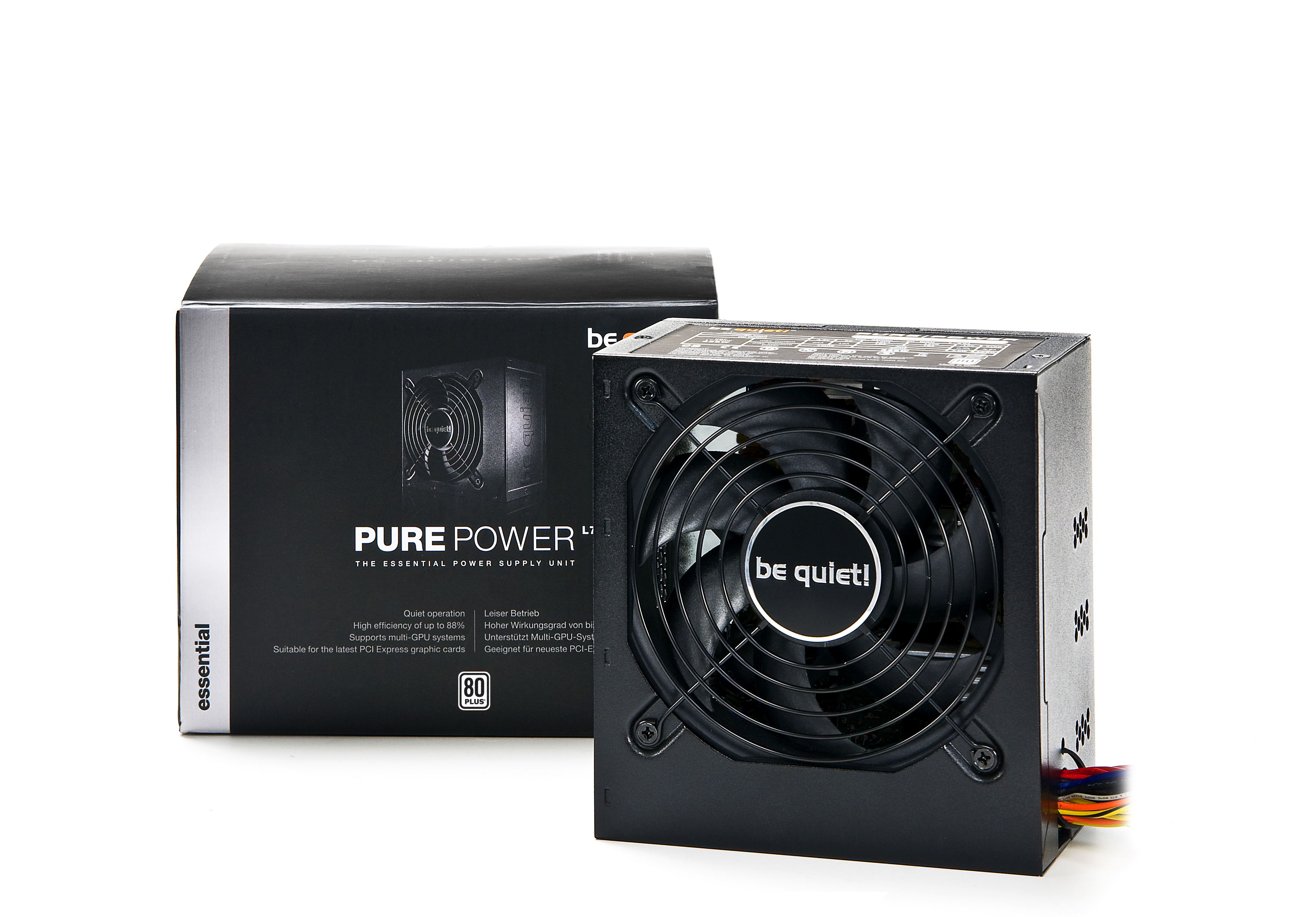

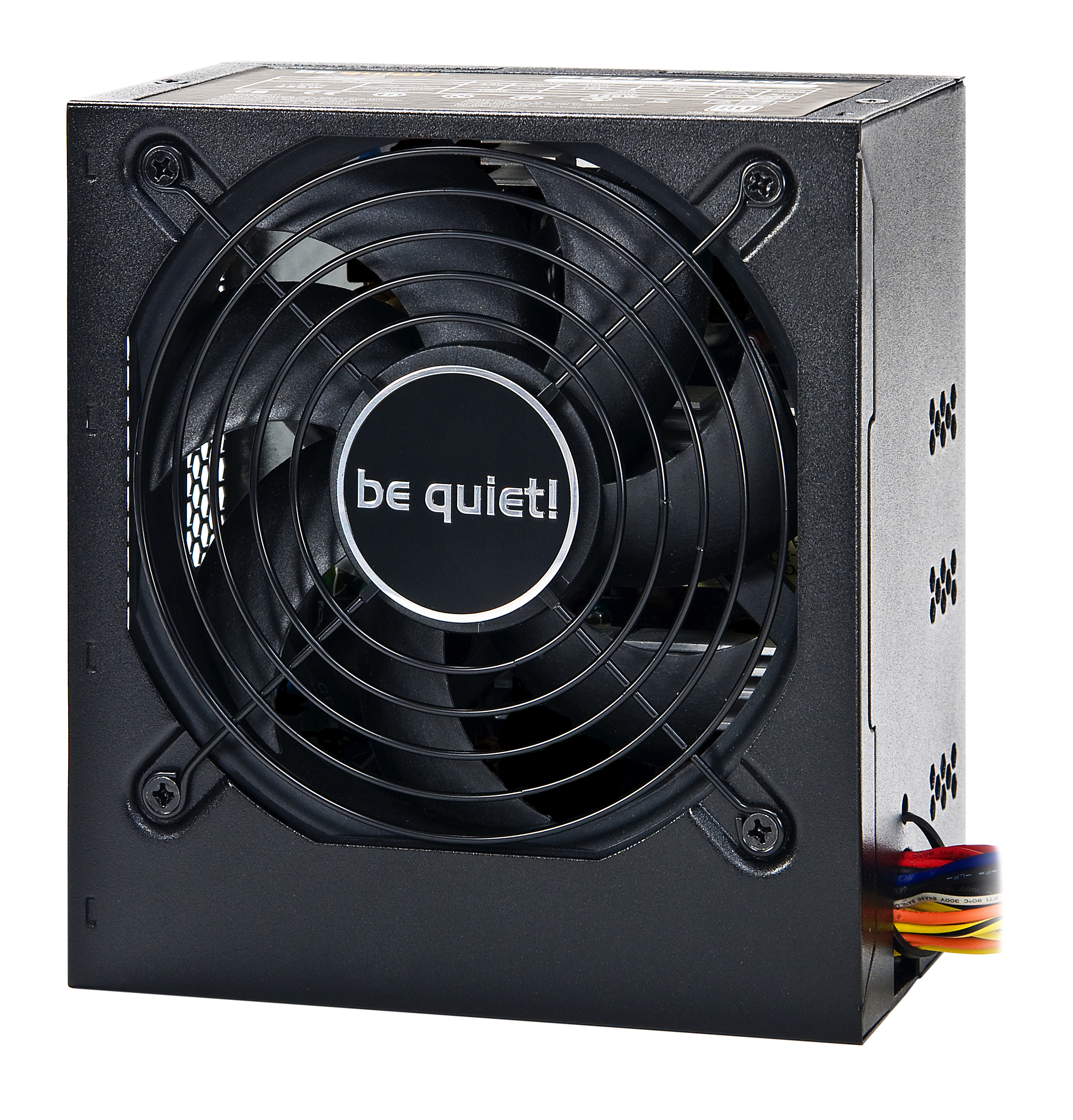

be quiet! Pure Power L7 power supply unit 730 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 730 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 140 mm
- Width
- 150 mm
- Height
- 86 mm
- Weight
- 2050 g
- Purpose
- PC
- Fan speed
- 1668
- Efficiency
- 88
1 / 3
Shopping actions
Overview
The be quiet! Pure Power L7 power supply unit 730 W 20+4 pin ATX ATX Black features 730 W output, 80 PLUS 80 PLUS Bronze efficiency, a 120 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
140 mm
Width
150 mm
Height
86 mm
Weight
2050 g
Colour
Black
Logistics & Packaging
1 SPEC
Package weight
2390 g
Cooling
3 SPECS
Cooling type
Active
Fan size
120
Number of fans
1
Power
2 SPECS
Wattage
730 W
Efficiency rating
80 PLUS Bronze
General
40 SPECS
Purpose
PC
Fan speed
1668
Efficiency
88
Peak power
780
ATX version
2.3
EPS version
2.92
Noise level
31.1
Cabling type
Non-Modular
Power factor
0.99
Certifications
CE, CB, TÜV, Semko
Input current
5 - 10
AC input voltage
100 - 240
AC input frequency
50 - 60
Combined power (+5V)
150
Combined power (+12V)
660
Combined power (-12V)
3.6
Combined power (+3.3V)
150
Combined power (+5Vsb)
15
Compliance certificates
RoHS
Max output current (+5V)
20
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+12V1)
30
Max output current (+12V2)
30
Max output current (+3.3V)
25
Max output current (+5Vsb)
3
Package dimensions (WxDxH)
145 x 185 x 163
Motherboard power connector
20+4 pin ATX
Operating temperature
0 - 40
Eco certifications
ENERGY STAR
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V,+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V,-5V
Number of SATA power connectors
5
MTBF
100000 h
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6-pin)
2
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
4
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
