MPN:
BN201

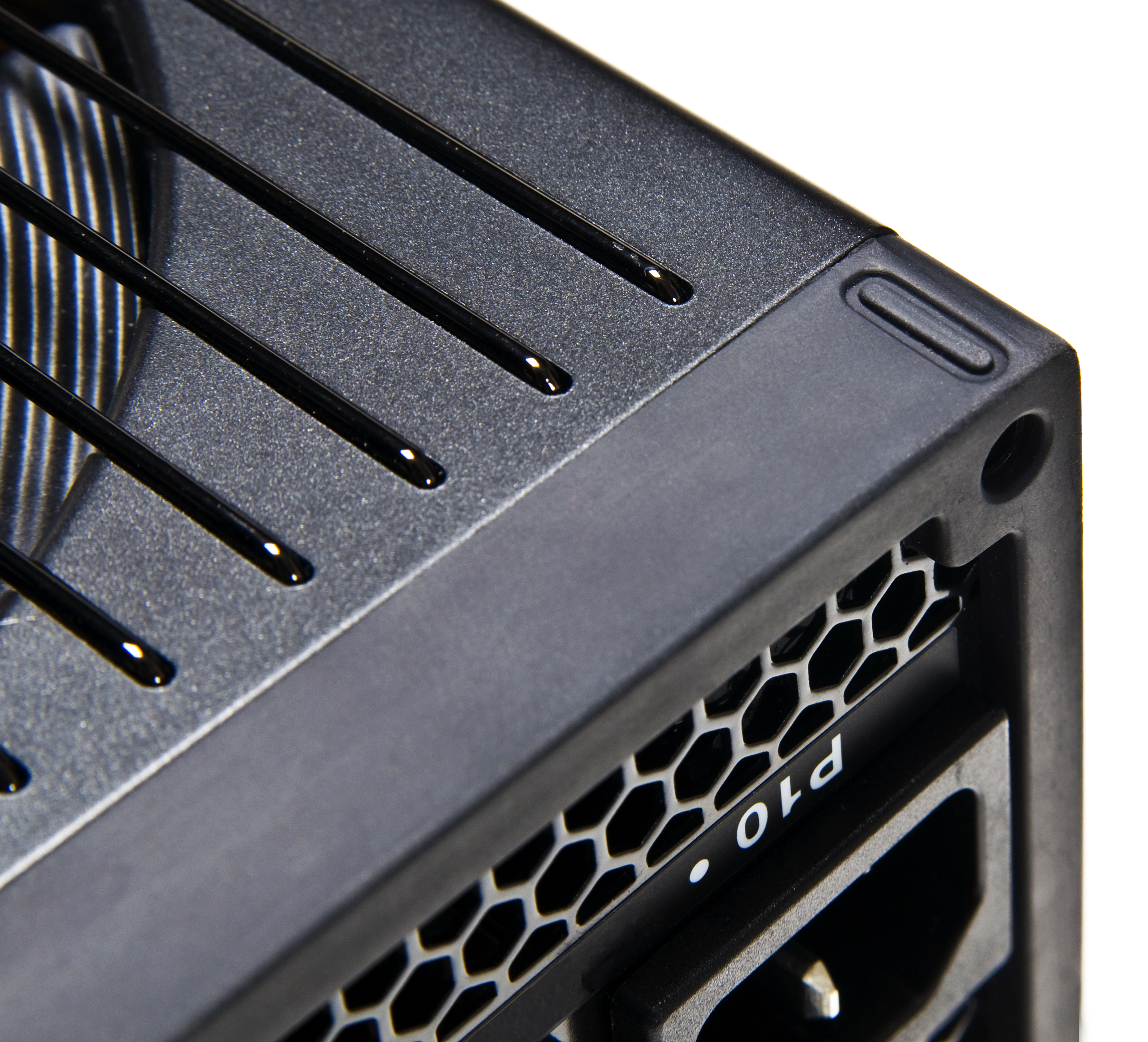

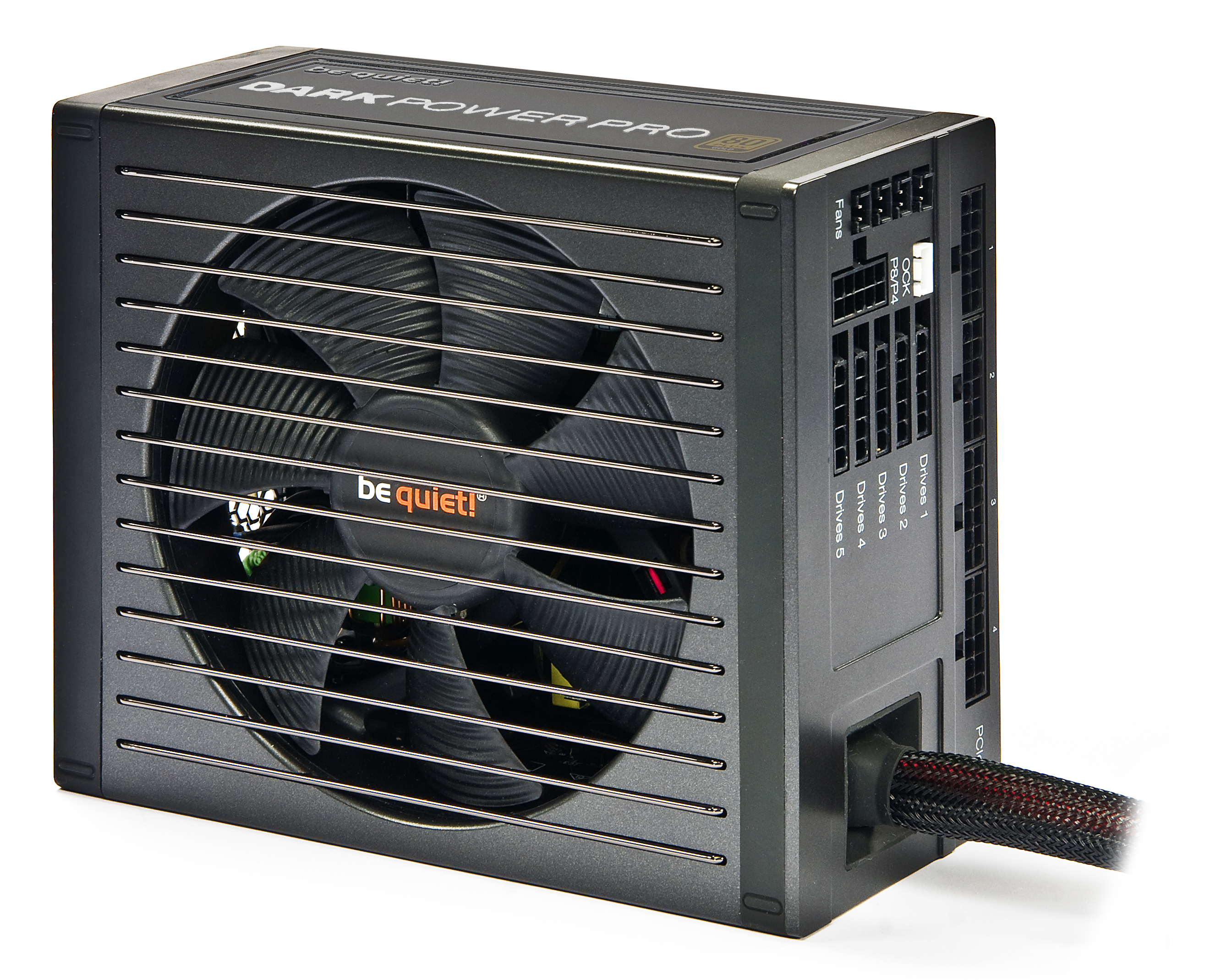

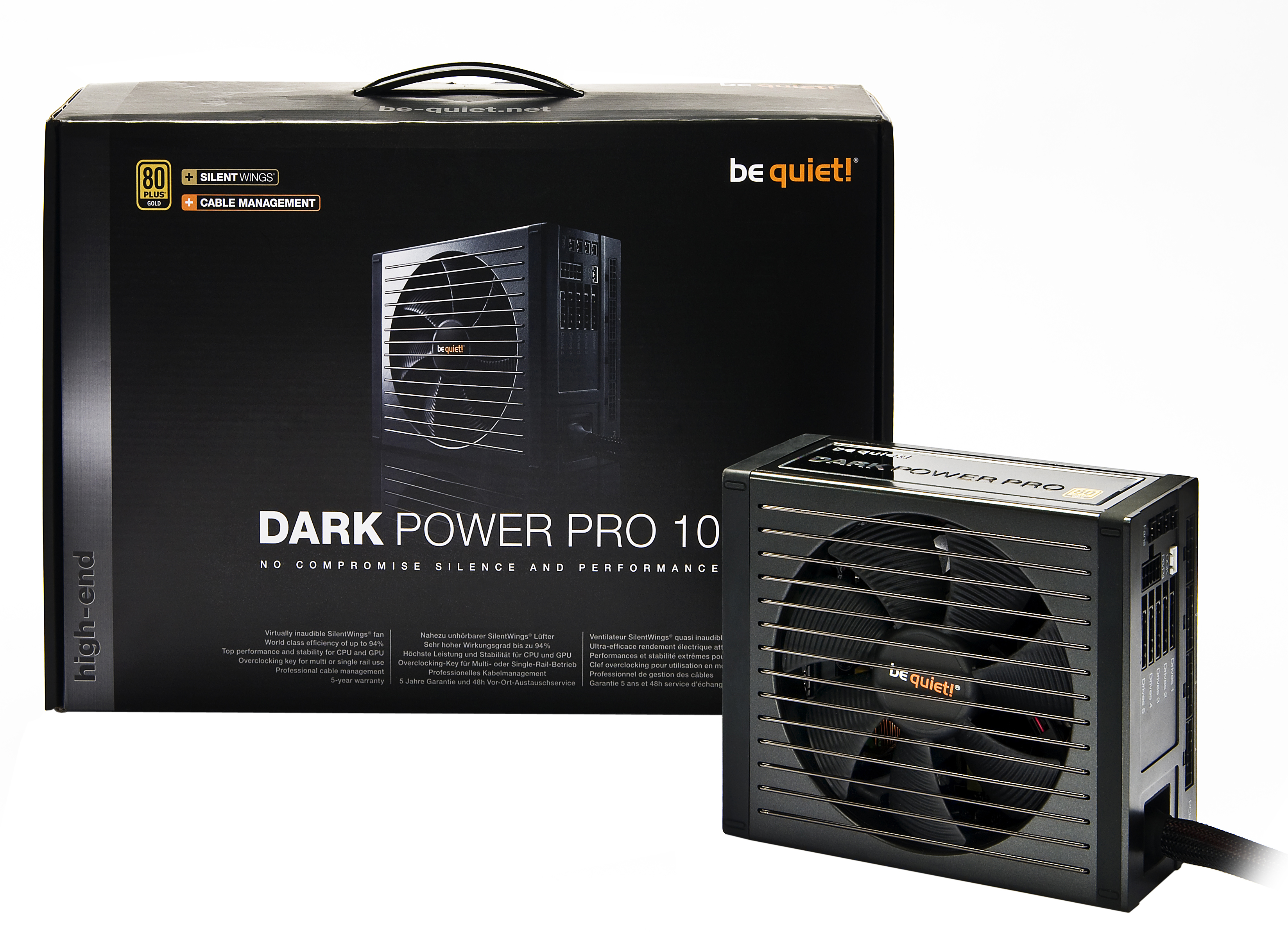

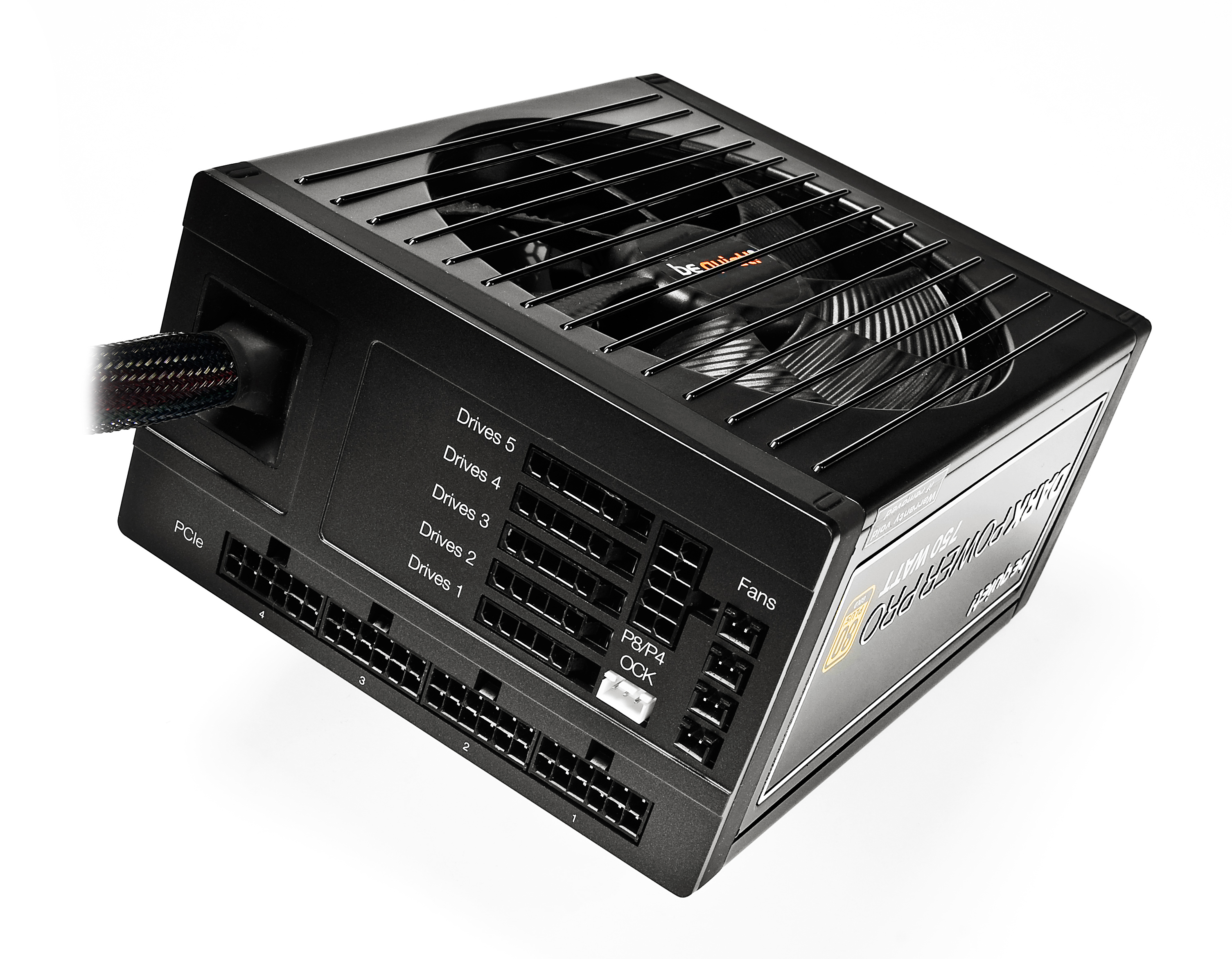

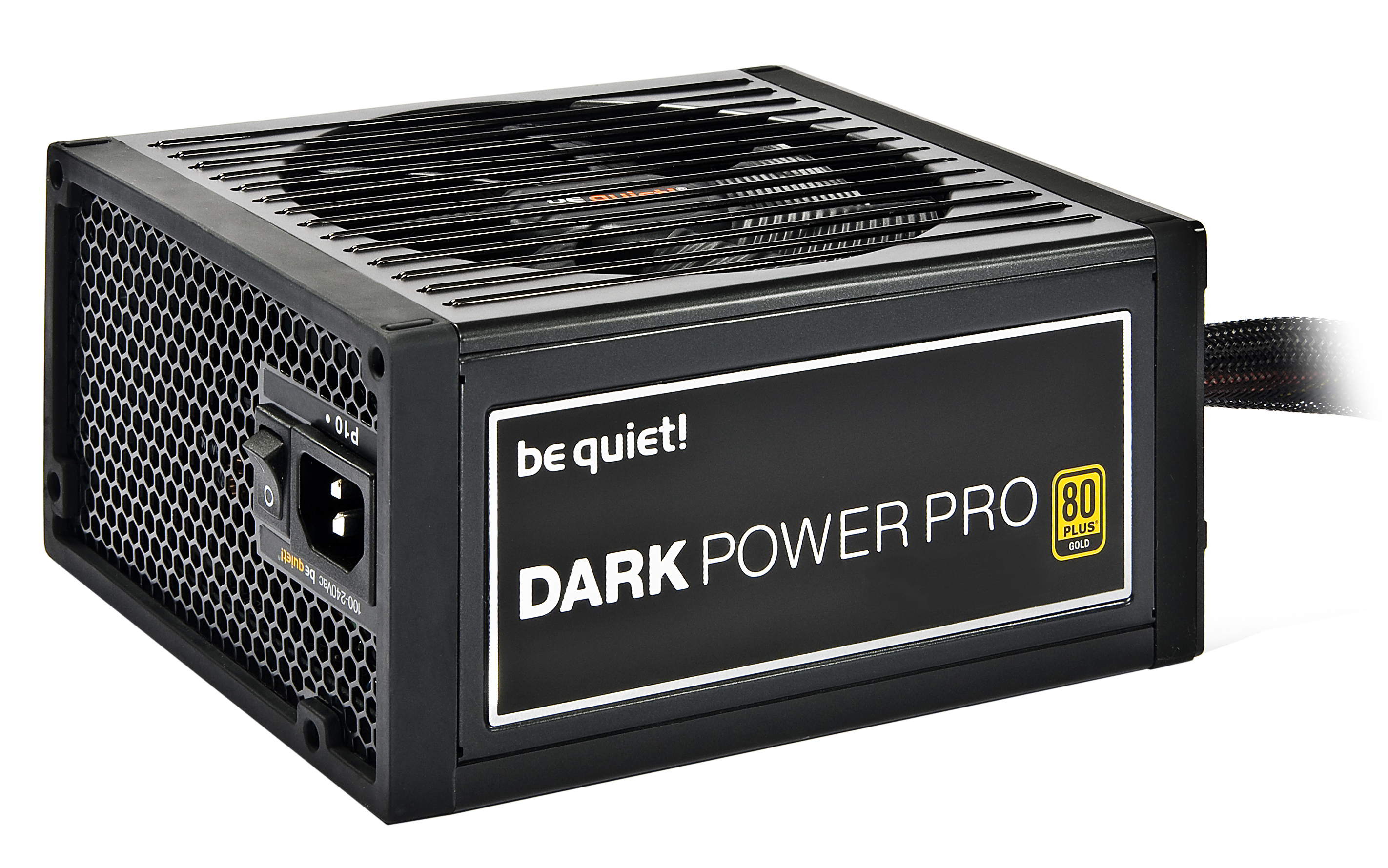

be quiet! Dark Power Pro 10 power supply unit 650 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 650 W
- Efficiency rating
- 80 PLUS Gold
- Depth
- 180 mm
- Width
- 150 mm
- Height
- 86 mm
- Weight
- 3610 g
- Purpose
- PC
- Fan speed
- 1800
- Hold time
- 21
1 / 6
Shopping actions
Overview
The be quiet! Dark Power Pro 10 power supply unit 650 W 20+4 pin ATX ATX Black features 650 W output, 80 PLUS 80 PLUS Gold efficiency, a 135 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
180 mm
Width
150 mm
Height
86 mm
Weight
3610 g
Colour
Black
Logistics & Packaging
1 SPEC
Package weight
4190 g
Cooling
3 SPECS
Cooling type
Active
Fan size
135
Number of fans
1
Power
2 SPECS
Wattage
650 W
Efficiency rating
80 PLUS Gold
General
47 SPECS
Purpose
PC
Fan speed
1800
Hold time
21
Efficiency
93
Peak power
720
ATX version
2.31
EPS version
2.92
Noise level
17.5

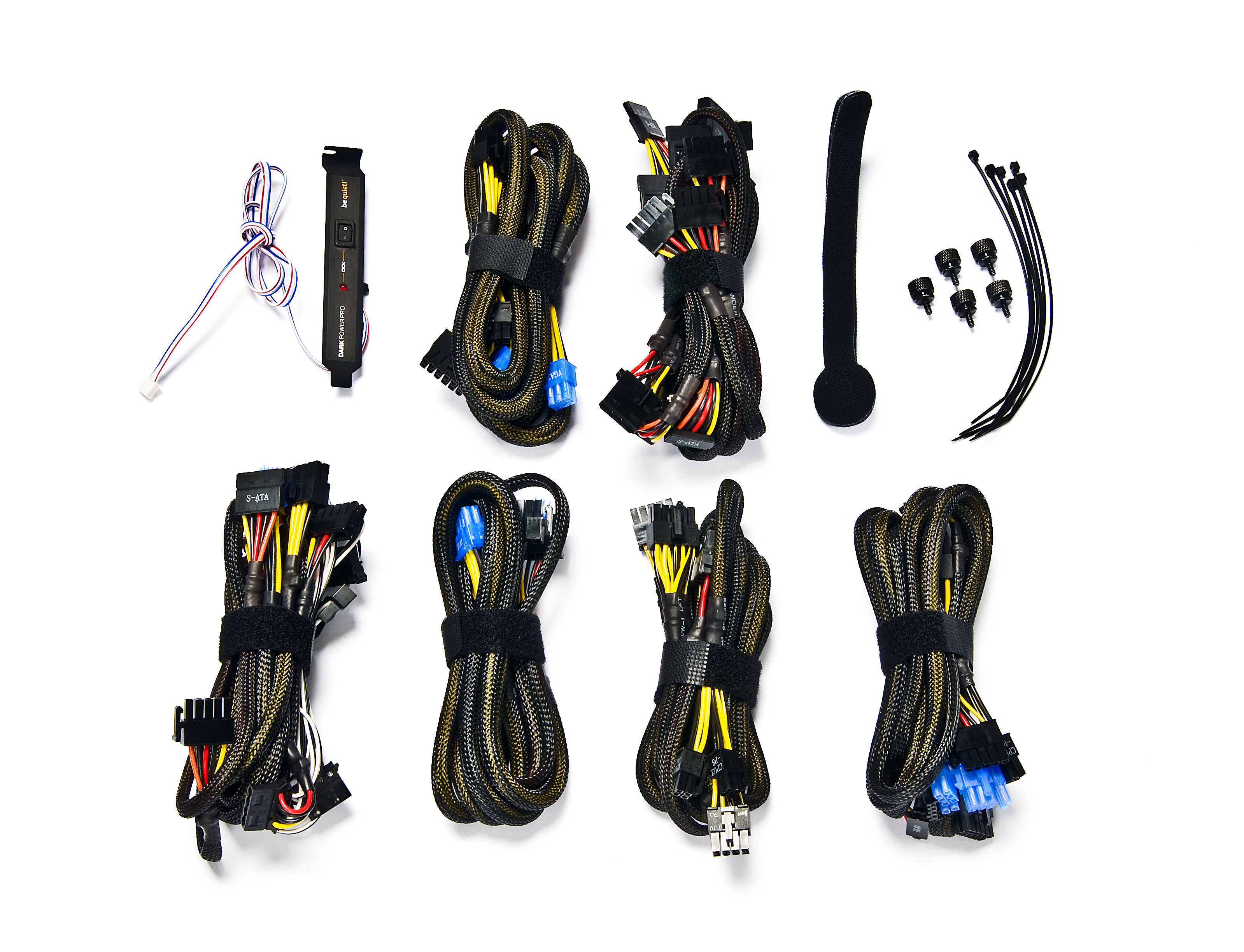

Cabling type
Semi-Modular
Power factor
0.99
Certifications
CE, CB, TÜV, Nemko (N), Semko (S), Fimko (FI), Demko (D), FCC, cTUVus
Input current
4 - 8
AC input voltage
100 - 240
AC input frequency
50 - 60
Bearing type
FDB
Combined power (+5V)
125
Combined power (+12V)
648
Combined power (+3.3V)
125
Compliance certificates
RoHS
Max output current (+5V)
25
Max output current (+12V)
54
Max output current (-12V)
0.5
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+12V1)
20
Max output current (+12V2)
20
Max output current (+12V3)
25
Max output current (+12V4)
25
Max output current (+3.3V)
25
Max output current (+5Vsb)
3
Package dimensions (WxDxH)
272 x 118 x 400
Motherboard power connector
20+4 pin ATX
Operating temperature
0 - 40
Eco certifications
ENERGY STAR
CPU power connectors (8-pin)
1
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Noise level (quiet mode, 50%)
12.9
Noise level (silent mode, <30%)
12.8
Number of SATA power connectors
9
MTBF
300000 h
Noise level (full-load mode, 100%)
17.5
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6-pin)
1
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
7
