MPN:
BN263

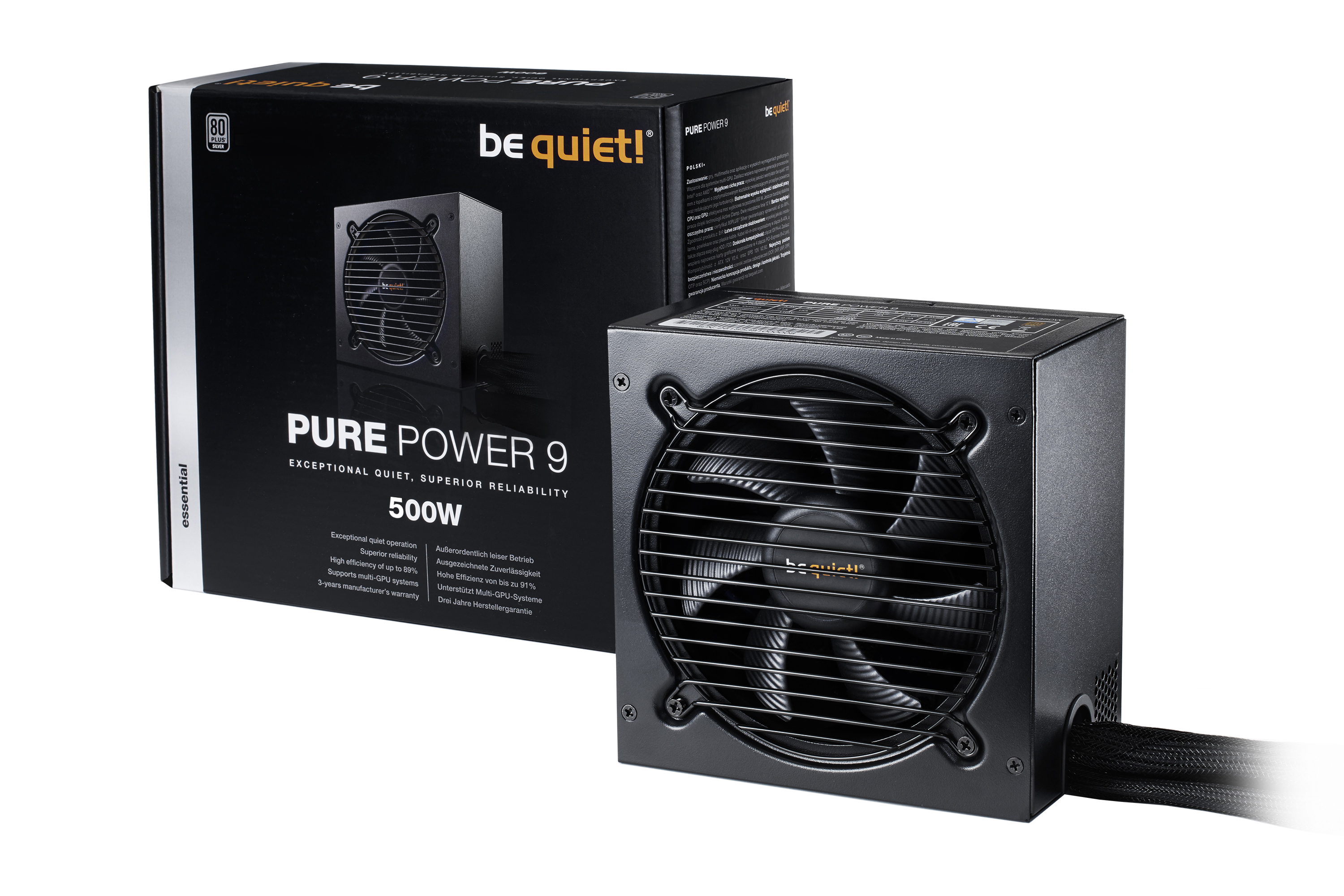

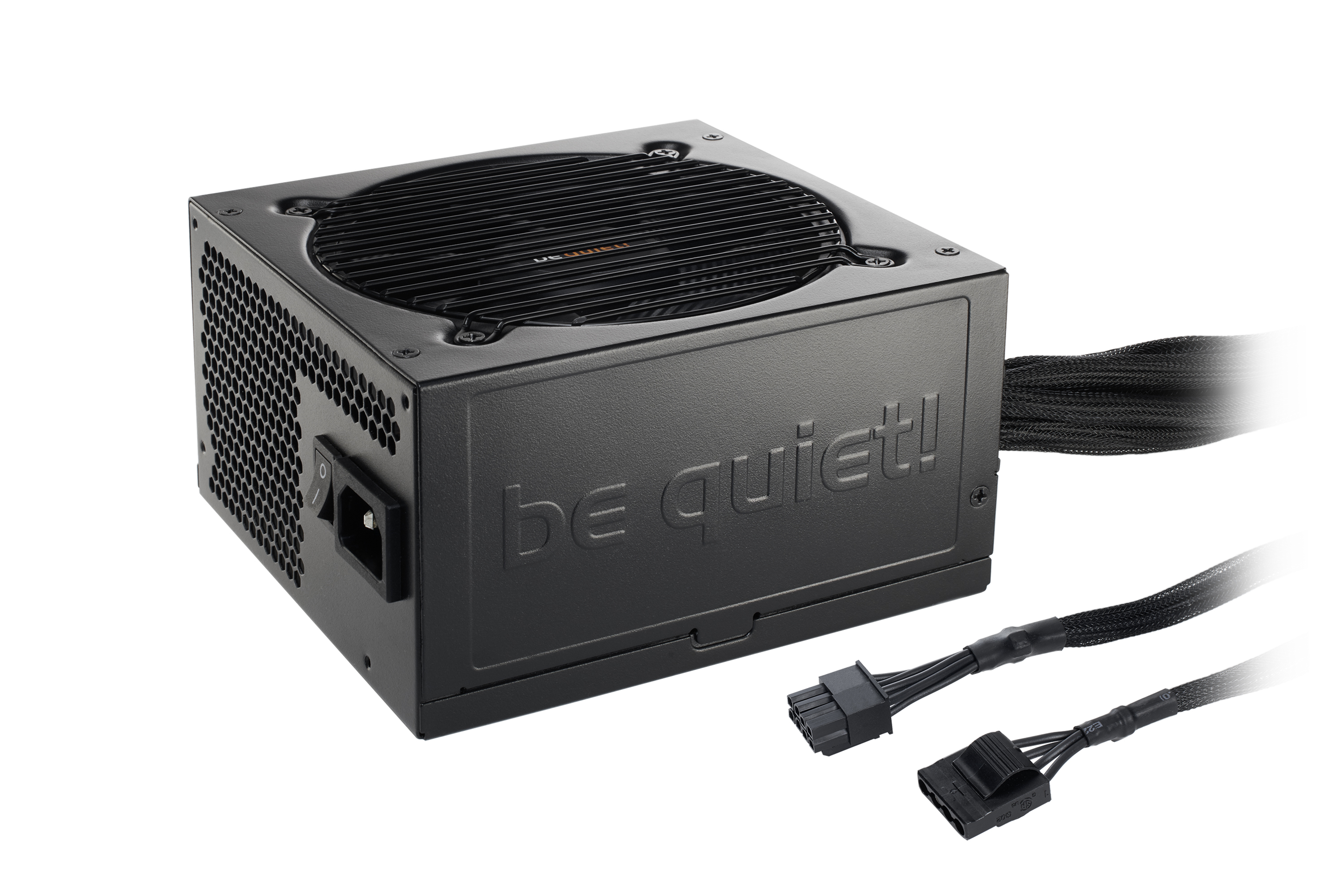

be quiet! BN263 power supply unit 500 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 500 W
- Efficiency rating
- 80 PLUS Silver
- Depth
- 150 mm
- Width
- 150 mm
- Height
- 86 mm
- Manual included
- Y
- Weight
- 1960 g
- Purpose
- PC
- Fan speed
- 1243
1 / 4
Shopping actions
Overview
The be quiet! BN263 power supply unit 500 W 20+4 pin ATX ATX Black features 500 W output, 80 PLUS 80 PLUS Silver efficiency and a 120 mm fan. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
150 mm
Width
150 mm
Height
86 mm
Weight
1960 g
Colour
Black
Cooling
2 SPECS
Fan size
120
Number of fans
1
Logistics & Packaging
4 SPECS
Package depth
210 mm
Package width
240 mm
Package height
96 mm
Package weight
2170 g
Power
2 SPECS
Wattage
500 W
Efficiency rating
80 PLUS Silver
General
46 SPECS
Manual included
Yes
Purpose
PC
Fan speed
1243
Efficiency
91
Peak power
550
ATX version
2.4
Cabling type
Non-Modular
Packaging type
Box
Certifications
CE, CB, TÜV, FCC, cTUVus, RCM (Australia), BSMI, CU (Russia)
Input current
5 - 8
On/off switch
Yes

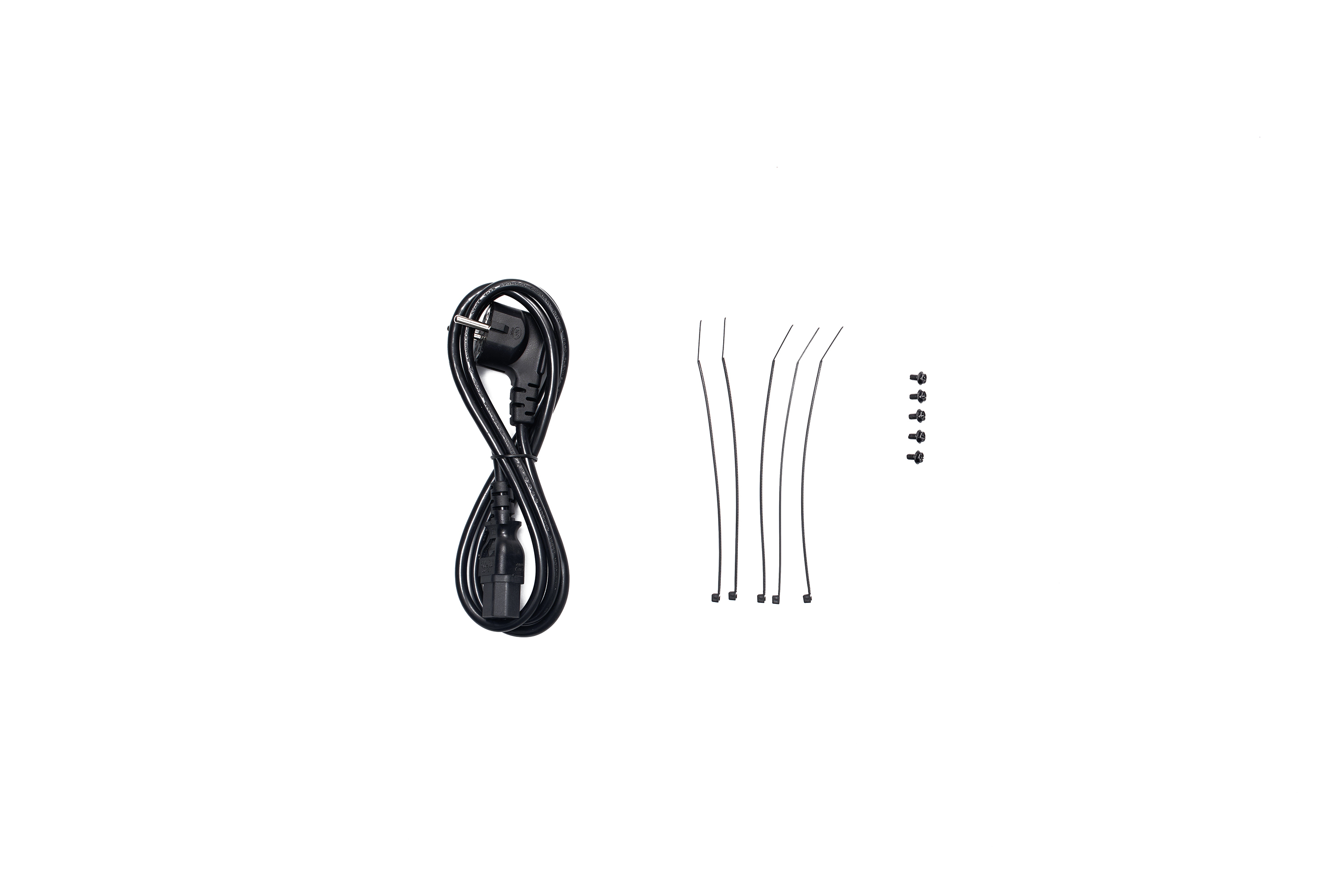

Included cables
AC
AC input voltage
100 - 240
AC input frequency
50 - 60
Bearing type
Rifle
Combined power (+5V)
120
Combined power (+12V)
480
Combined power (-12V)
3.6
PCI Express connector
Yes
Combined power (+3.3V)
120
Combined power (+5Vsb)
15
Compliance certificates
RoHS
Max output current (+5V)
15
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+12V1)
28
Max output current (+12V2)
20
Max output current (+3.3V)
24
Max output current (+5Vsb)
3
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Eco certifications
ENERGY STAR
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Noise level (quiet mode, 50%)
12
ATX power connector (20+4 pin)
Yes
Motherboard power cable length
550
Noise level (silent mode, <30%)
11.4
Number of PATA power connectors
3
Number of SATA power connectors
6
MTBF
100000 h
Noise level (full-load mode, 100%)
23.7
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
0
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
