MPN:
BN212

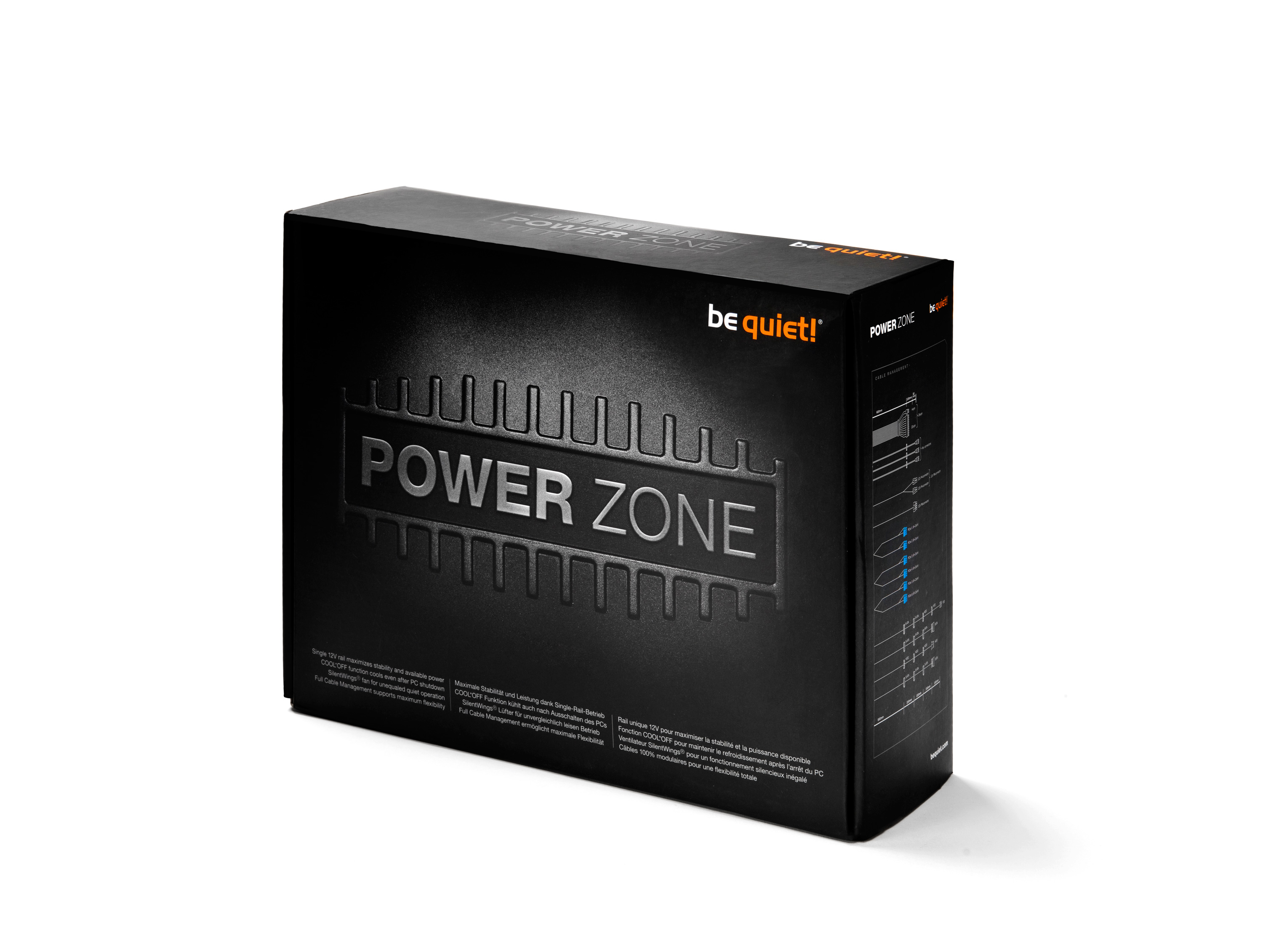

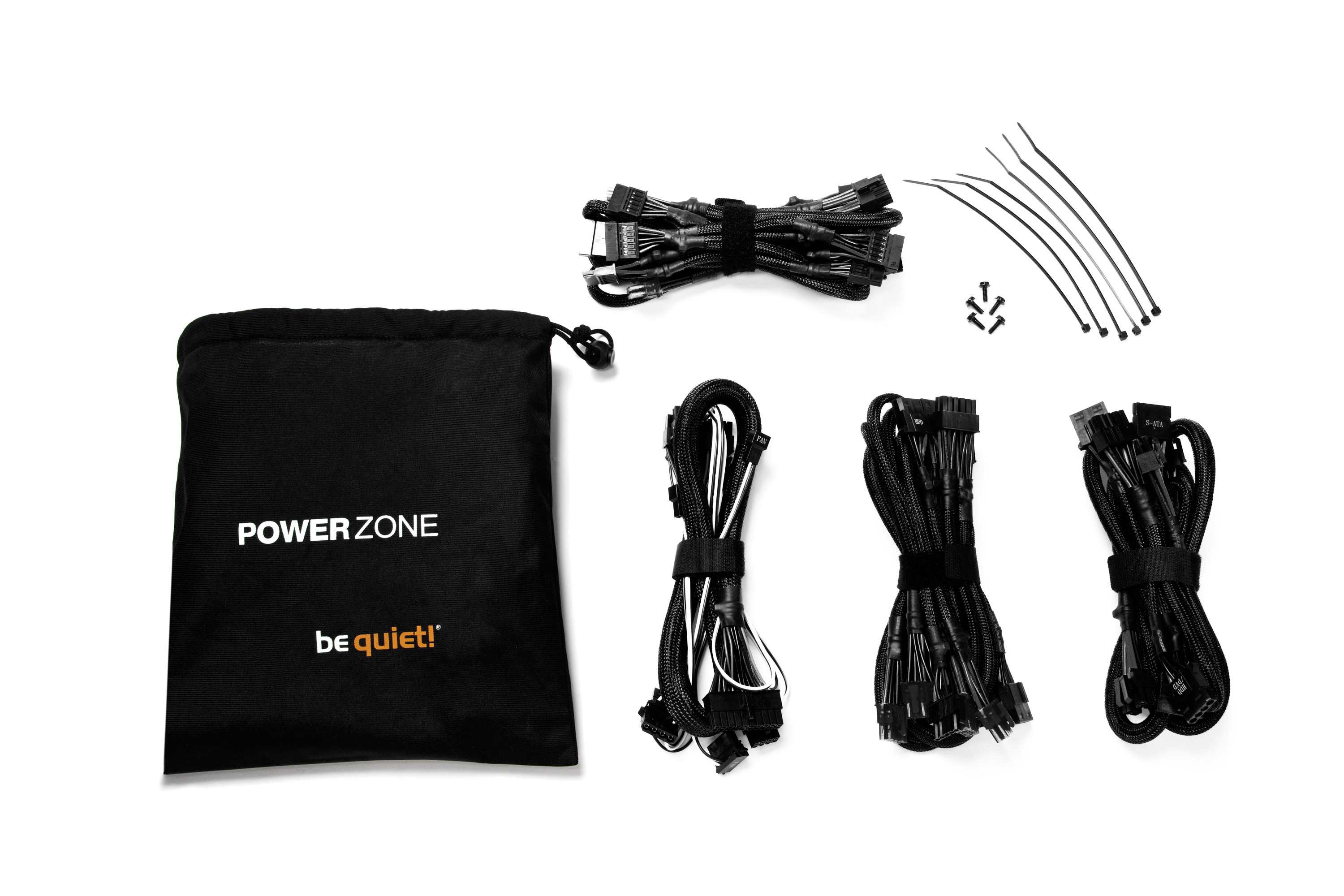

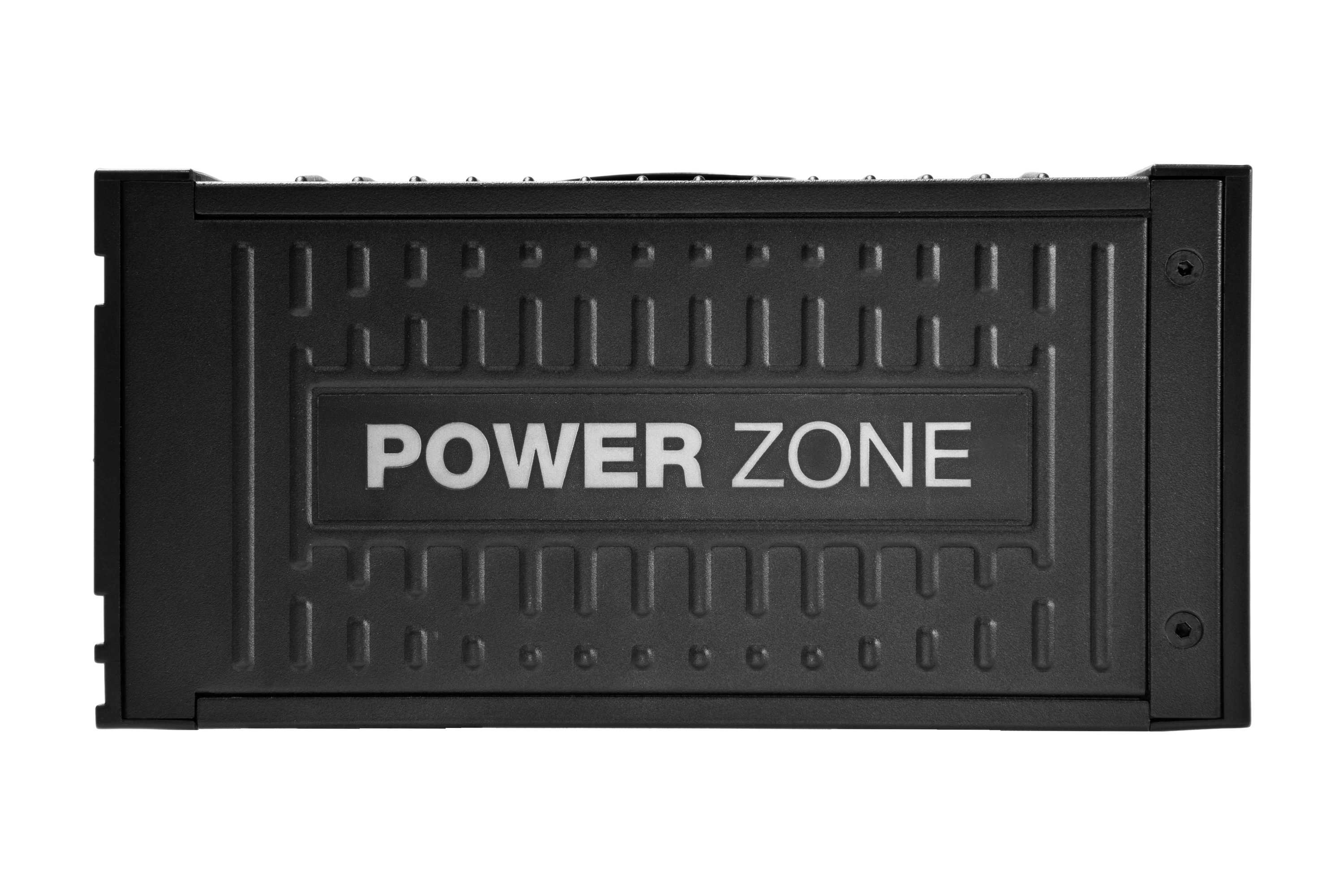

be quiet! BN212 power supply unit 850 W 20+4 pin ATX ATX Black
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Wattage
- 850 W
- Efficiency rating
- 80 PLUS Bronze
- Depth
- 175 mm
- Width
- 150 mm
- Height
- 86 mm
- Manual included
- Y
- Weight
- 2130 g
- Purpose
- PC
- Fan speed
- 2900
1 / 6
Shopping actions
Overview
The be quiet! BN212 power supply unit 850 W 20+4 pin ATX ATX Black features 850 W output, 80 PLUS 80 PLUS Bronze efficiency, a 135 mm fan and Active cooling. Full verified specifications are listed below.
Technical Specifications
Physical
5 SPECS
Depth
175 mm
Width
150 mm
Height
86 mm
Weight
2130 g
Colour
Black
Power
2 SPECS
Wattage
850 W
Efficiency rating
80 PLUS Bronze
Logistics & Packaging
4 SPECS
Package depth
102 mm
Package width
248 mm
Package height
238 mm
Package weight
2620 g
Cooling
3 SPECS
Cooling type
Active
Fan size
135
Number of fans
1
General
43 SPECS
Manual included
Yes
Purpose
PC
Fan speed
2900
Hold time
22
Efficiency
89
Peak power
900
ATX version
2.4
EPS version
2.92
Noise level
35.8
Cabling type
Fully-Modular
Power factor
0.99
Certifications
CE, CB, TÜV, Semko (S), FCC, cTUVus, c-tick, BSMI
Input current
10
AC input voltage
100 - 240
AC input frequency
50 - 60
Bearing type
FDB
Combined power (+5V)
160
Combined power (+12V)
840
Combined power (-12V)
3.6
Combined power (+3.3V)
160
Combined power (+5Vsb)
15
Compliance certificates
RoHS
Max output current (+5V)
25
Max output current (+12V)
70
Max output current (-12V)
0.3
Power protection features
Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Max output current (+3.3V)
25
Max output current (+5Vsb)
3
Motherboard power connector
20+4 pin ATX
Eco certifications
ENERGY STAR
CPU power connectors (8-pin)
1
Floppy drive power connector
1
CPU power connector (4+4 pin)
Yes
Maximum input current (@110V)
+12V,+3.3V,+5V,+5Vsb,-12V
Noise level (quiet mode, 50%)
17.5
Noise level (silent mode, <30%)
15.5
Number of SATA power connectors
9
MTBF
100000 h
Noise level (full-load mode, 100%)
35.8
Power Factor Correction (PFC) type
Active
Power supply unit (PSU) form factor
ATX
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
6
