MPN:
911-7B09-009

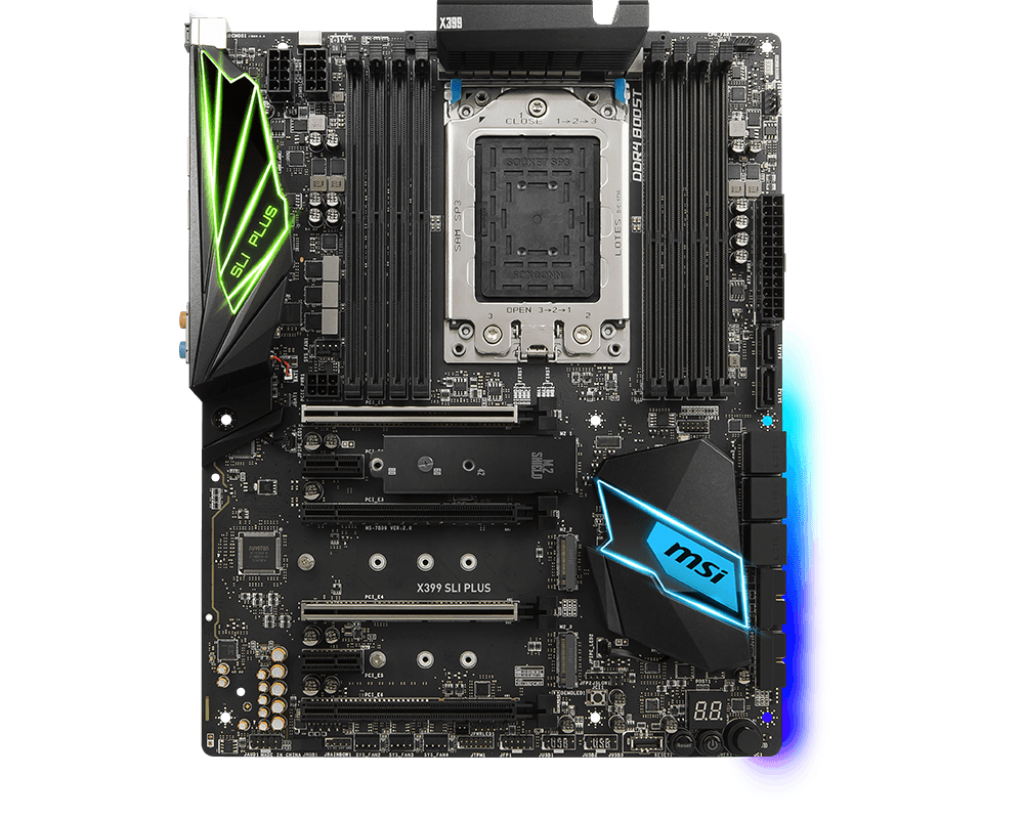

MSI X399 SLI PLUS AMD X399 Socket TR4 ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 243 mm
- Width
- 304 mm
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC1220
- RAID levels
- 0,1,10
- ACPI version
- 6.0
- Ethernet LAN
- Y
- Intended use
- PC
- TPM connector
- Y
Shopping actions
Overview
The MSI X399 SLI PLUS AMD X399 Socket TR4 ATX (Depth: 243 mm). Full verified specifications are listed below.
Technical Specifications
Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
1
DVI-D ports quantity
0
USB 2.0 ports
2
Ethernet ports
1
Memory
2 SPECS
Memory slots
8
Max memory
128 GB
Physical
3 SPECS
Depth
243 mm
Width
304 mm
Form factor
ATX
Processor
2 SPECS
Socket
Socket TR4
CPU brand
AMD
Power
1 SPEC
Power source
ATX
General
50 SPECS
BIOS type
UEFI AMI
Audio chip
Realtek ALC1220
RAID levels
0,1,10
ACPI version
6.0
Ethernet LAN
Yes
Intended use
PC
TPM connector
Yes
LAN controller
Intel I211
Included cables
SATA
Memory channels
Quad-channel
S/PDIF out port
Yes
BIOS memory size
128 MB
Drivers included
Yes
CPU fan connector
Yes
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Memory slots type
DIMM
USB 2.0 connectors
2
Utilities included
Yes
12V power connector
Yes
Chipset
AMD X399
PC health monitoring
CPU,FAN,Temperature
eSATA ports quantity
0
Audio channels
7.1
Front panel connector
Yes
Supported memory types
DDR4-SDRAM
Ethernet interface type
Gigabit Ethernet
Number of M.2 (M) slots
3
Quick installation guide
Yes
FireWire ports
0
Motherboard chipset family
AMD
VGA ports
0
Compatible processor series
AMD Ryzen Threadripper 1000 Series,AMD Ryzen Threadripper 2000 Series
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
8
Supported memory clock speeds
2133,2400,2667,2800,2933,3066,3200,3333,3466,3600
PCI Express x1 (Gen 2.x) slots
2
PCI Express x16 (Gen 3.x) slots
4
Maximum number of SMP processors
1
Number of chassis fan connectors
4
Number of Parallel ATA connectors
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Parallel processing technology support
4-Way CrossFireX,4-Way SLI
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
