MPN:
7A33-003R
MSI X370 SLI PLUS AMD X370 Socket AM4 ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 304 mm
- Wi-Fi
- N
- Width
- 243 mm
- BIOS type
- UEFI
- RAID levels
- 0,1,10
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
- TPM connector
- Y
1 / 6
Shopping actions
Overview
The MSI X370 SLI PLUS AMD X370 Socket AM4 ATX (Depth: 304 mm). Full verified specifications are listed below.
Technical Specifications

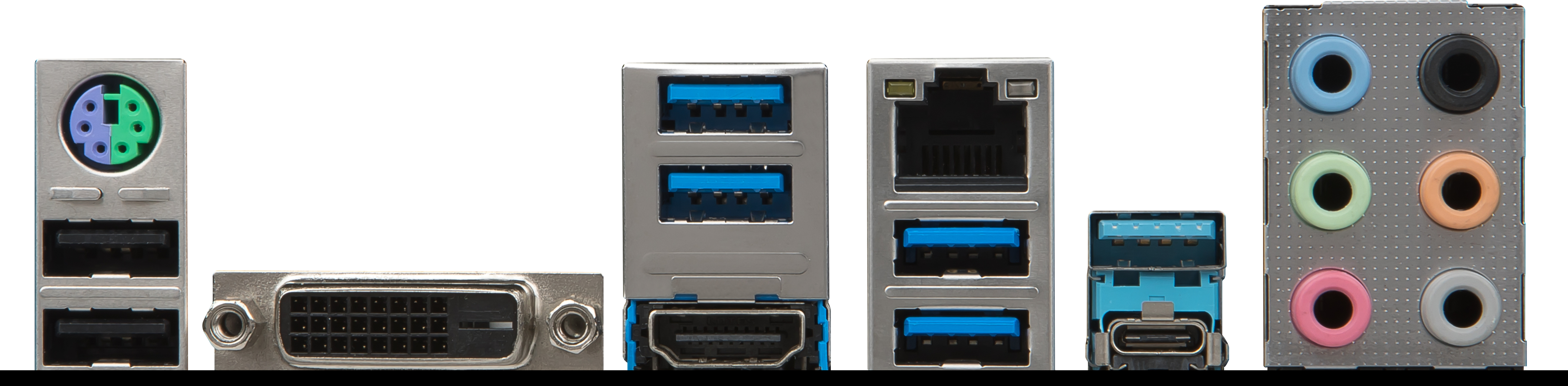

Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
1
DVI-D ports quantity
1
USB 2.0 ports
2
Ethernet ports
1
Memory
2 SPECS
Memory slots
4
Max memory
64 GB
Physical
3 SPECS
Depth
304 mm
Width
243 mm
Form factor
ATX
Processor
2 SPECS
Socket
Socket AM4
CPU brand
AMD
Power
1 SPEC
Power source
ATX
General
53 SPECS
Wi-Fi
No
BIOS type
UEFI
RAID levels
0,1,10
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek RTL8111H
Memory channels
Dual-channel
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
USB 2.0 connectors
2
Chipset
AMD X370
Serial port headers
1
eSATA ports quantity
0
Audio channels
7.1
Front panel connector
Yes
Supported memory types
DDR4-SDRAM
Ethernet interface type
Fast Ethernet,Gigabit Ethernet
Number of M.2 (M) slots
1
FireWire ports
0
Motherboard chipset family
AMD
VGA ports
0
Chassis intrusion connector
Yes
Compatible processor series
AMD A,AMD Athlon,AMD Athlon X4,AMD Ryzen 2000 Series,AMD Ryzen 3000 Series
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
6
Supported memory clock speeds
1866,2133,2400,2667,2933,3200
Supported storage drive types
HDD & SSD
PCI Express x1 (Gen 2.x) slots
3
PCI Express x16 (Gen 2.x) slots
1
PCI Express x16 (Gen 3.x) slots
2
Serial port via internal header
Yes
Number of chassis fan connectors
4
Linux distributions supported
Yes
Number of Parallel ATA connectors
0
Parallel port via internal header
Yes
Supported memory module capacities
4GB,8GB,16GB
Windows versions supported
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Parallel processing technology support
2-Way CrossFireX,2-Way SLI,3-Way CrossFireX
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
