MPN:
7C06-001R

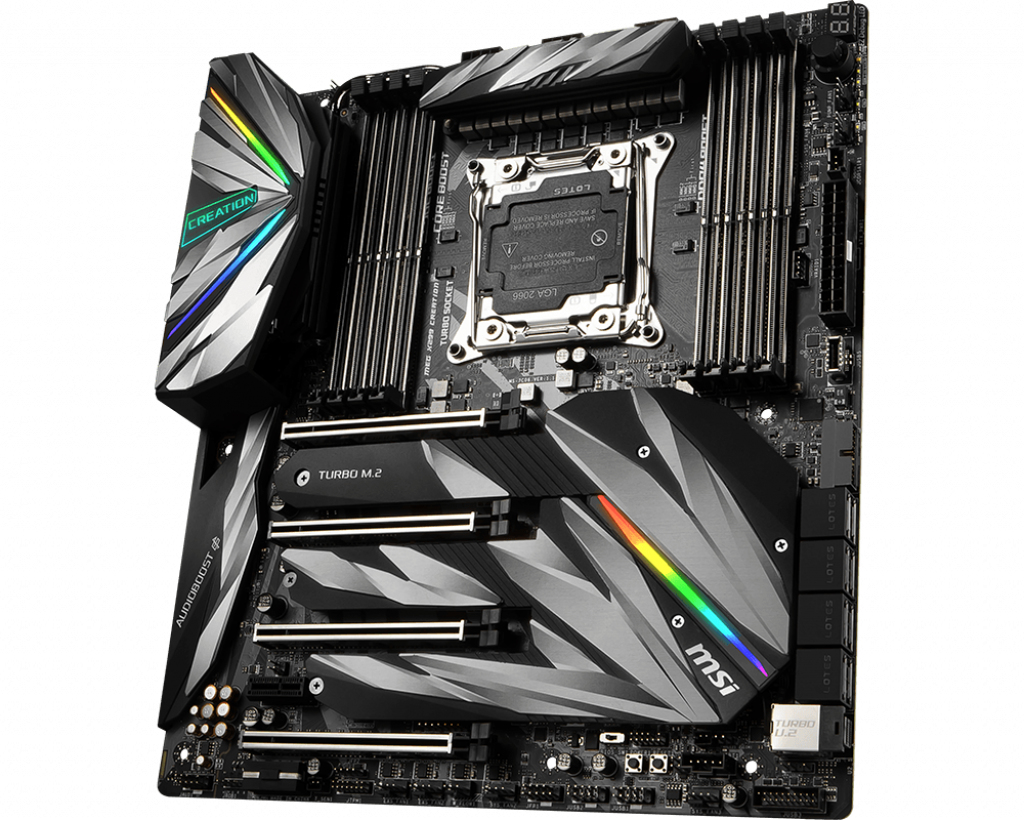

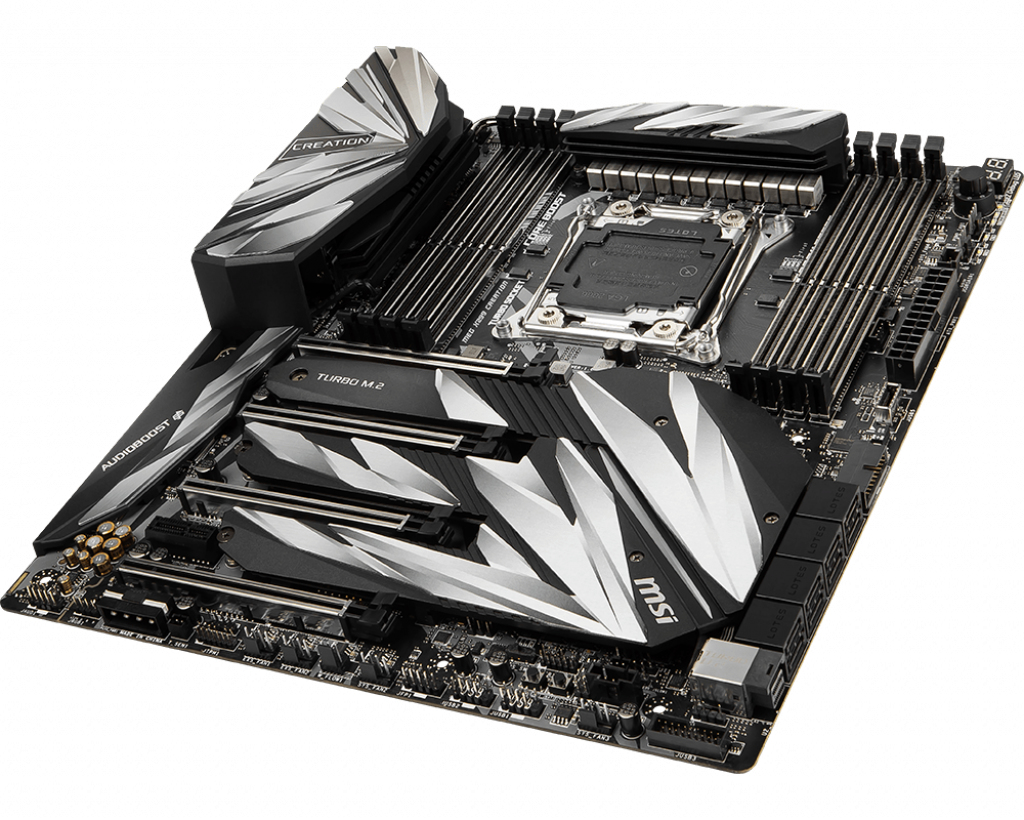

MSI MEG X299 Creation Intel® X299 LGA 2066 (Socket R4) Extended ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 272 mm
- Wi-Fi
- Y
- Width
- 305 mm
- Manual included
- Y
- BIOS type
- UEFI AMI
- Bluetooth
- Y
- Audio chip
- Realtek ALC1220
- RAID levels
- 0,1,5,10
- Ethernet LAN
- Y
1 / 5
Shopping actions
Overview
The MSI MEG X299 Creation Intel® X299 LGA 2066 (Socket R4) Extended ATX (Depth: 272 mm). Full verified specifications are listed below.
Technical Specifications

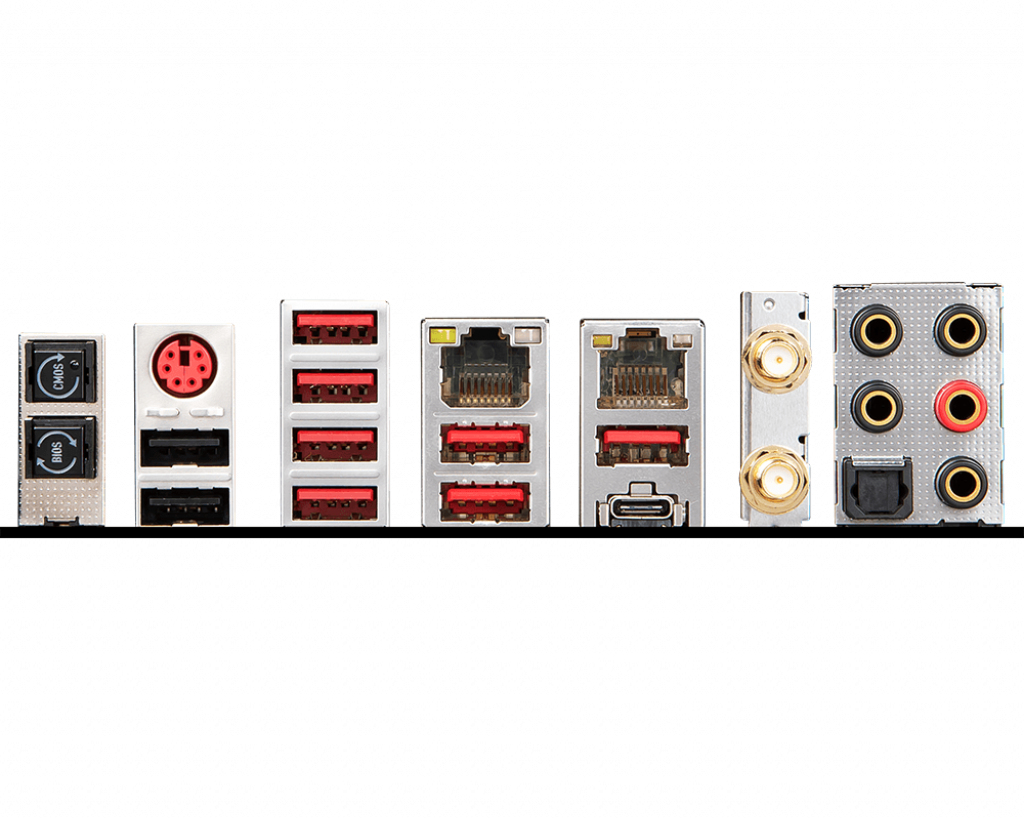

Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
1
DVI-D ports quantity
0
USB 2.0 ports
2
Ethernet ports
2
Memory
1 SPEC
Memory slots
4
Physical
3 SPECS
Depth
272 mm
Width
305 mm
Form factor
Extended ATX
Processor
2 SPECS
Socket
LGA 2066 (Socket R4)
CPU brand
Intel
General
59 SPECS
Wi-Fi
Yes
Manual included
Yes
BIOS type
UEFI AMI
Bluetooth
Yes
Audio chip
Realtek ALC1220
RAID levels
0,1,5,10
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek RTL8125-CG,Intel I219-V
Included cables
SATA
Memory channels
Quad-channel
S/PDIF out port
Yes
Wi-Fi standard
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Drivers included
Yes
Bluetooth version
5.0
CPU fan connector
Yes
Clear CMOS button
Yes
Headphone outputs
1
Memory slots type
DIMM
USB 2.0 connectors
2
Chipset
Intel X299
Thunderbolt headers
1
WiFi-AP antenna jack
2
Audio channels
7.1
Front panel connector
Yes
Supported memory types
DDR4-SDRAM
Ethernet interface type
2.5 Gigabit Ethernet,Gigabit Ethernet
Quick installation guide
Yes
FireWire ports
0
Motherboard chipset family
Intel
VGA ports
0
Chassis intrusion connector
Yes
Compatible processor series
Intel Core X-series
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Supported CPU sockets
LGA 2066
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
8
Supported memory clock speeds
4100,2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3800,4000,4200
Supported storage drive types
HDD & SSD
Intel® Optane™ Memory Ready
Yes
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
4
Number of chassis fan connectors
6
Linux distributions supported
Yes
Number of Parallel ATA connectors
0
Intel Extreme Memory Profile (XMP)
Yes
Supported storage drive interfaces
SATA III,U.2
Windows versions supported
Windows 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Parallel processing technology support
CrossFire,SLI
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Market Value History
Price history not started yet
Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
