MPN:
H310M PRO-VDH

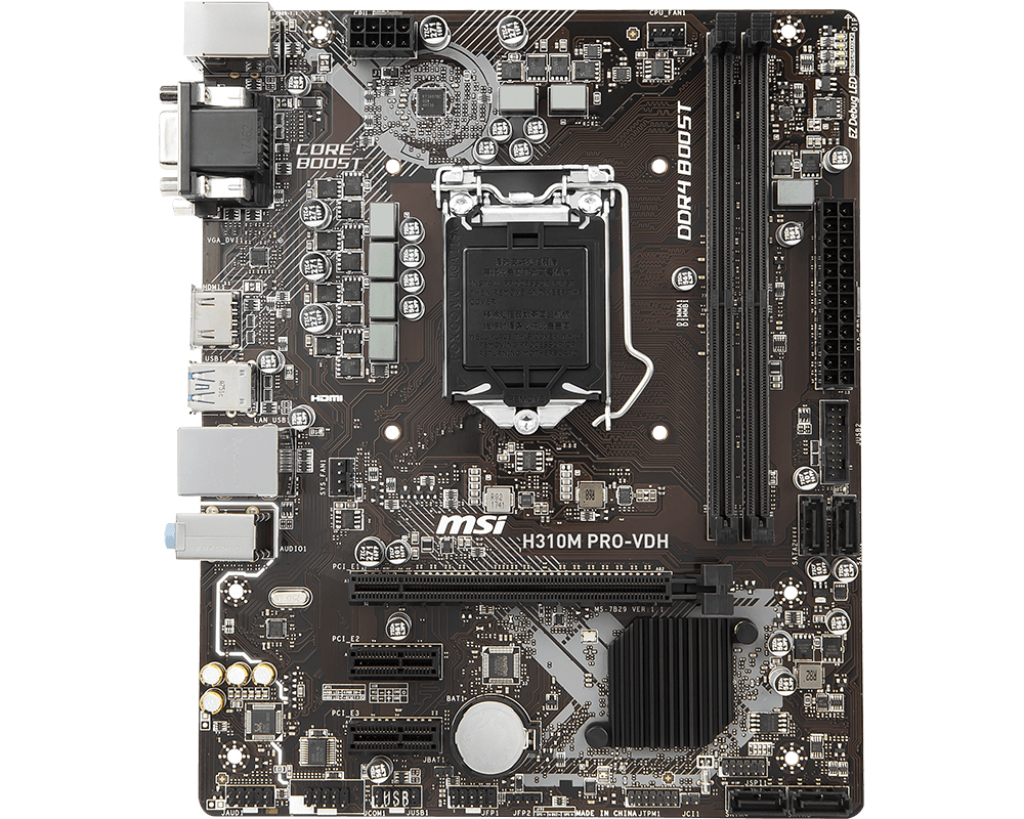

MSI H310M PRO-VDH motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 185 mm
- Wi-Fi
- N
- Width
- 226 mm
- BIOS type
- UEFI
- Audio chip
- Realtek ALC887
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
- TPM connector
- Y
1 / 5
Shopping actions
Overview
The MSI H310M PRO-VDH motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX (Depth: 185 mm). Full verified specifications are listed below.
Technical Specifications
Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
1
DVI-D ports quantity
1
USB 2.0 ports
4
Ethernet ports
1
Graphics
2 SPECS
DirectX version
12.0
Max resolution
4096 x 2160
Power
1 SPEC
Power source
ATX
Physical
3 SPECS
Depth
185 mm
Width
226 mm
Form factor
Micro ATX
Processor
2 SPECS
Socket
LGA 1151 (Socket H4)
CPU brand
Intel
Memory
2 SPECS
Memory slots
2
Max memory
32 GB
General
54 SPECS
Wi-Fi
No
BIOS type
UEFI
Audio chip
Realtek ALC887
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek RTL8111H
Included cables
SATA
Memory channels
Dual-channel
Drivers included
Yes
CPU fan connector
Yes
Headphone outputs
1
Memory slots type
DIMM
Unbuffered memory
Yes
ECC сompatibility
non-ECC
USB 2.0 connectors
1
Chipset
Intel H310
Serial port headers
1
Graphics card family
Intel
PCI Express x1 slots
2
eSATA ports quantity
0
Audio channels
7.1
Integrated graphics
Yes
Supported memory types
DDR4-SDRAM
Ethernet interface type
Gigabit Ethernet
Quick installation guide
Yes
Discrete graphics support
Yes
FireWire ports
0
Motherboard chipset family
Intel
VGA ports
1
Chassis intrusion connector
Yes
Compatible processor series
Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Pentium
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Intel Core i3/i5/i7/i9 series
i3-8xxx,i5-8xxx,i7-8xxx
Number of SATA III connectors
4
Supported memory clock speeds
2133,2400,2666
PCI Express x1 (Gen 2.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
Serial port via internal header
Yes
Maximum number of SMP processors
1
Number of chassis fan connectors
1
Number of Parallel ATA connectors
0
Supported memory clock speed (max)
2666
Supported storage drive interfaces
SATA III
Windows versions supported
Windows 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
