MPN:
7982-011R

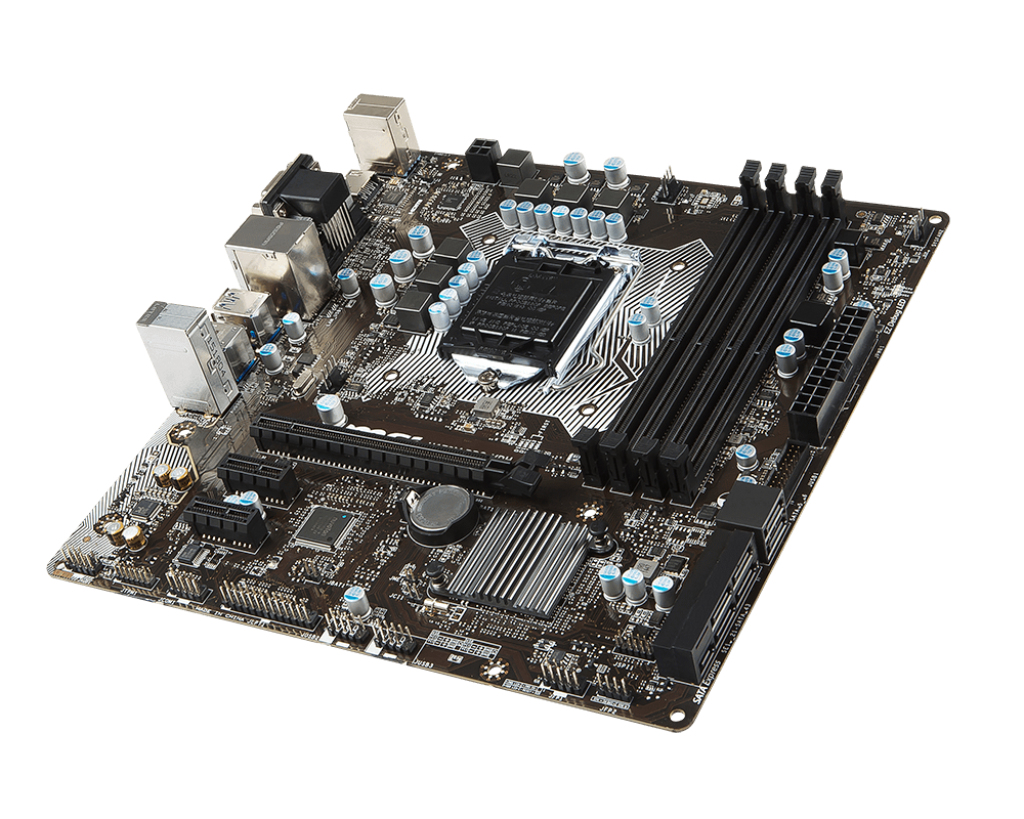

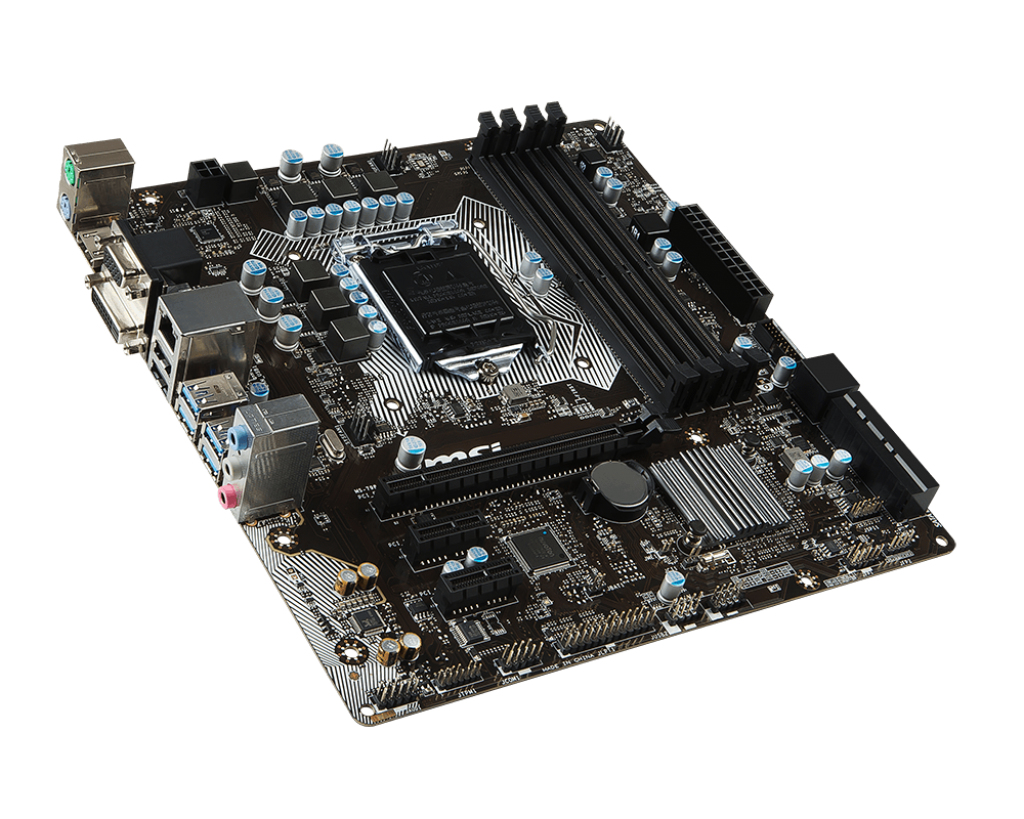

MSI H170M PRO-VDH Intel® H170 LGA 1151 (Socket H4) micro ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 228 mm
- Width
- 235 mm
- BIOS type
- UEFI
- Audio chip
- Realtek ALC887
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
- TPM connector
- Y
- LAN controller
- Realtek RTL8111H
1 / 5
Shopping actions
Overview
The MSI H170M PRO-VDH Intel® H170 LGA 1151 (Socket H4) micro ATX (Depth: 228 mm). Full verified specifications are listed below.
Technical Specifications

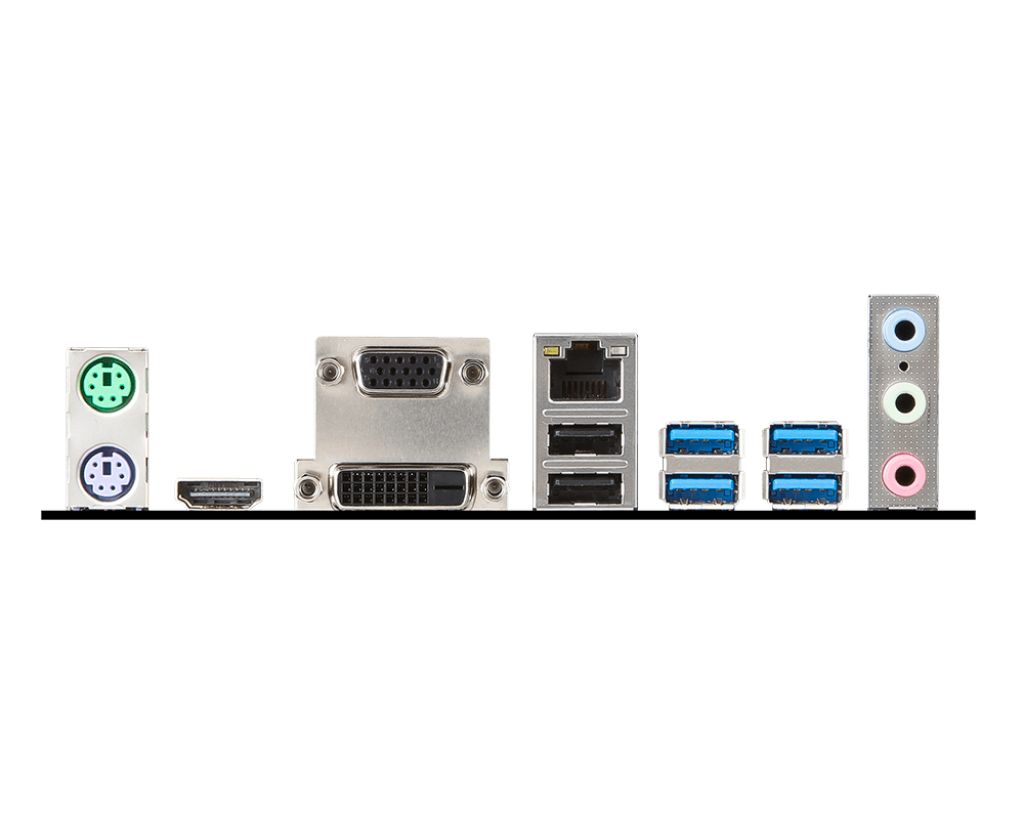

Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
2
DVI-D ports quantity
1
USB 2.0 ports
2
Ethernet ports
1
Graphics
2 SPECS
DirectX version
12.0
Max resolution
4096 x 2160
Storage
1 SPEC
SATA ports
6
Physical
3 SPECS
Depth
228 mm
Width
235 mm
Form factor
Micro ATX
Processor
2 SPECS
Socket
LGA 1151 (Socket H4)
CPU brand
Intel
Memory
2 SPECS
Memory slots
4
Max memory
64 GB
Power
1 SPEC
Power source
ATX
General
44 SPECS
BIOS type
UEFI
Audio chip
Realtek ALC887
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek RTL8111H
Memory channels
Dual-channel
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
Memory slots type
DIMM
ECC сompatibility
ECC & non-ECC
USB 2.0 connectors
2
12V power connector
Yes
Chipset
Intel H170
eSATA ports quantity
0
Audio channels
7.1
Front panel connector
Yes
Supported memory types
DDR4-SDRAM
FireWire ports
0
Motherboard chipset family
Intel
VGA ports
1
Chassis intrusion connector
Yes
Compatible processor series
Intel Celeron,Intel Pentium
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Intel Core i3/i5/i7/i9 series
i3-6xxx,i5-6xxx,i7-6xxx
Number of SATA III connectors
6
Supported memory clock speeds
2133
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
Number of chassis fan connectors
1
Number of Parallel ATA connectors
0
Intel Extreme Memory Profile (XMP)
Yes
Supported storage drive interfaces
SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Peripheral (Molex) power connectors (4-pin)
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
