MPN:
7808-010R
MSI B75MA-E33 Intel B75 LGA 1155 (Socket H2) micro ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 173 mm
- Width
- 244 mm
- BIOS type
- UEFI
- PCI slots
- Y
- Audio chip
- Realtek ALC887
- Cooling type
- Passive
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
1 / 5
Shopping actions
Overview

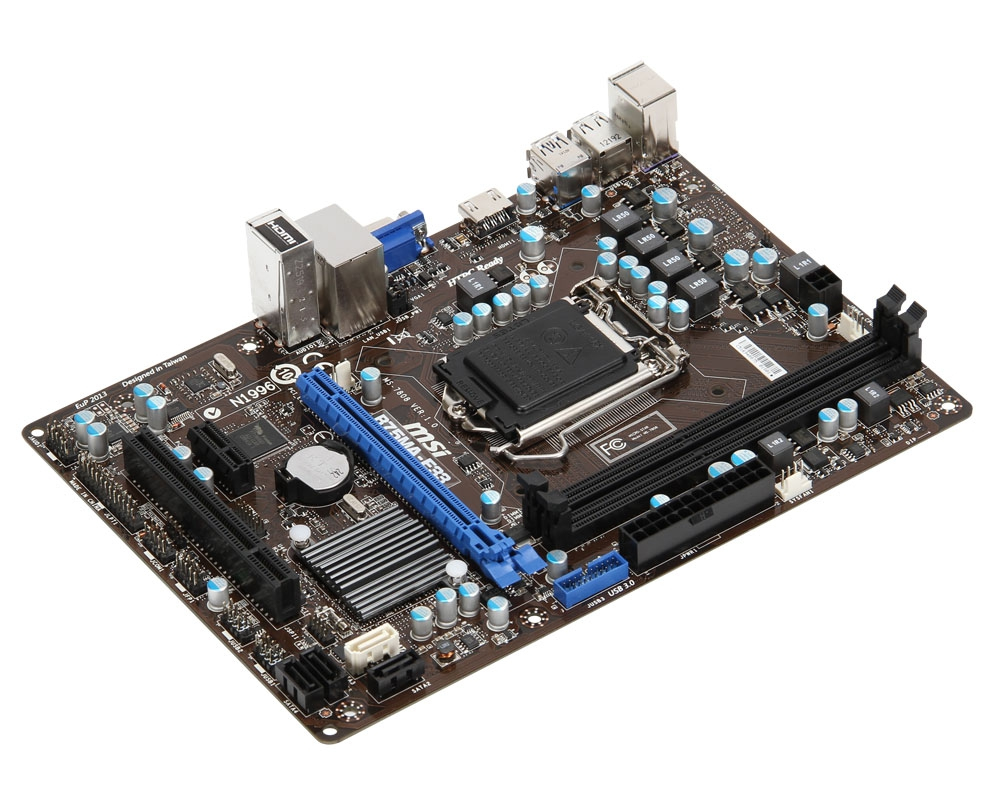

The MSI B75MA-E33 Intel B75 LGA 1155 (Socket H2) micro ATX features Passive cooling. Full verified specifications are listed below.
Technical Specifications

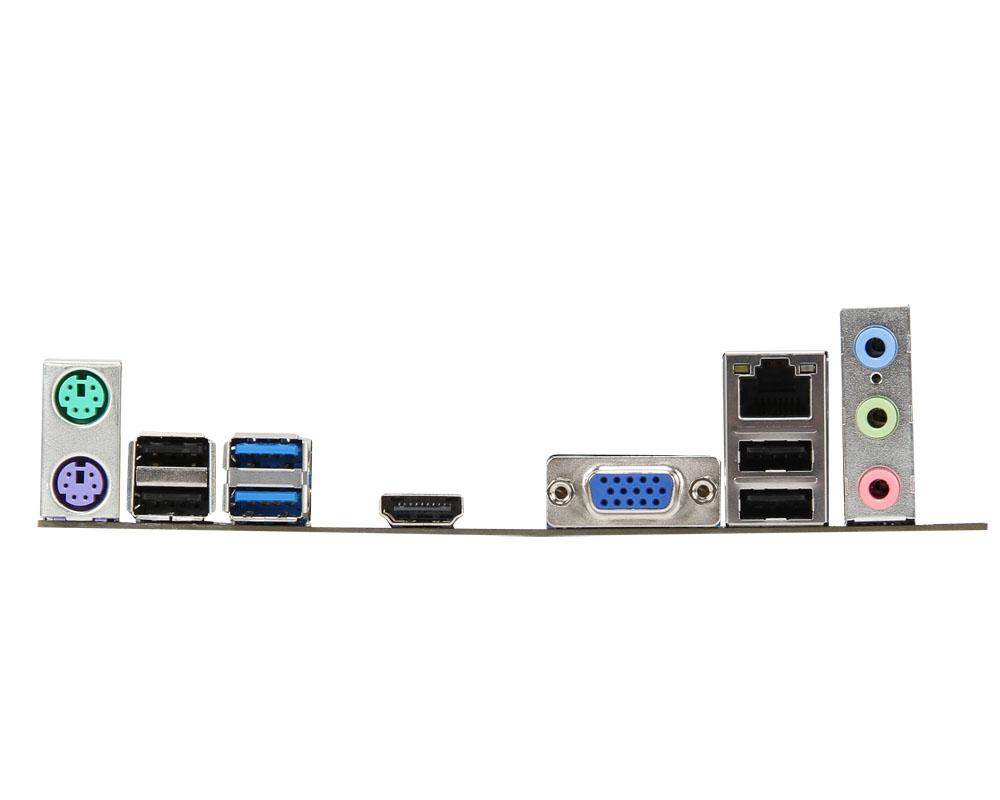

Ports & Connectivity
4 SPECS
HDMI ports
1
PS/2 ports
1
USB 2.0 ports
4
Ethernet ports
1
Memory
2 SPECS
Memory slots
2
Max memory
16 GB
Power
1 SPEC
Power source
ATX
Physical
3 SPECS
Depth
173 mm
Width
244 mm
Form factor
Micro ATX
Processor
2 SPECS
Socket
LGA 1155 (Socket H2)
CPU brand
Intel
Graphics
1 SPEC
Max resolution
2048 x 1536
Cooling
1 SPEC
Cooling type
Passive
General
44 SPECS
BIOS type
UEFI
PCI slots
1
Audio chip
Realtek ALC887
Audio output
3
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek RTL8111E
Included cables
SATA
Memory channels
Dual-channel
Drivers included
Yes
CPU fan connector
Yes
Clear CMOS jumper
Yes
Memory slots type
DIMM
Parallel connector
Yes
USB 2.0 connectors
2
Chipset
Intel B75
Graphics card family
Intel
PCI Express x1 slots
1
Audio channels
7.1
PCI Express x16 slots
1
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
Number of COM connectors
1
Controller interface type
Intel B75
Discrete graphics support
Yes
PCI Express slots version
2.0,3.0
Motherboard chipset family
Intel
PCI Express configurations
1x1,1x16
VGA ports
1
Chassis intrusion connector
Yes
Compatible processor series
Intel Celeron,Intel Pentium
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
3
Number of SATA III connectors
1
Number of EATX power connectors
1
Maximum number of SMP processors
1
Number of chassis fan connectors
2
Supported storage drive interfaces
SATA II,SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Parallel processing technology support
Not supported
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
