MPN:
B75A-G41
MSI B75A-G41 motherboard Intel B75 LGA 1155 (Socket H2) ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 216 mm
- Width
- 305 mm
- BIOS type
- UEFI
- PCI slots
- 2
- Audio chip
- Realtek ALC887
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
- TPM connector
- Y
1 / 5
Shopping actions
Overview
The MSI B75A-G41 motherboard Intel B75 LGA 1155 (Socket H2) ATX (Depth: 216 mm). Full verified specifications are listed below.
Technical Specifications

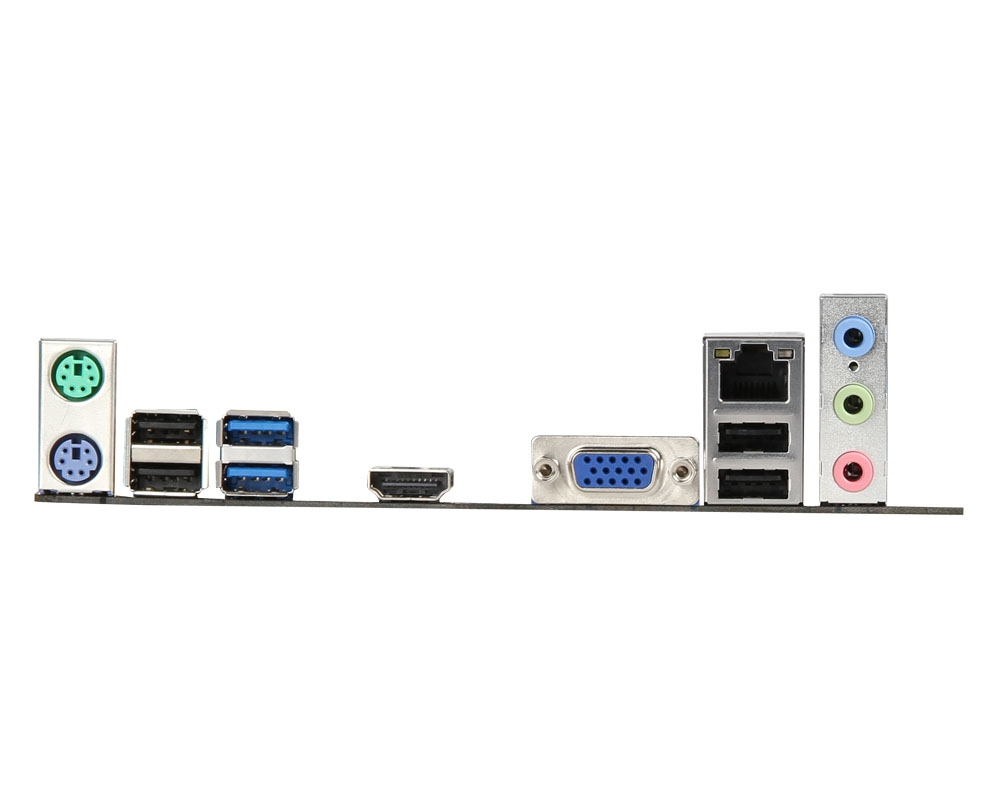

Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
1
DVI-D ports quantity
0
USB 2.0 ports
4
Ethernet ports
1
Memory
2 SPECS
Memory slots
4
Max memory
32 GB
Power
1 SPEC
Power source
ATX
Physical
3 SPECS
Depth
216 mm
Width
305 mm
Form factor
ATX
Processor
2 SPECS
Socket
LGA 1155 (Socket H2)
CPU brand
Intel
Graphics
1 SPEC
DirectX version
11
General
43 SPECS
BIOS type
UEFI
PCI slots
2
Audio chip
Realtek ALC887
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek RTL8111E
Memory channels
Dual-channel
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
Memory slots type
DIMM
Parallel connector
Yes
USB 2.0 connectors
2
Chipset
Intel B75
Serial port headers
1
PCI Express x1 slots
2
eSATA ports quantity
0
Audio channels
7.1
PCI Express x16 slots
2
Integrated graphics
No
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
PCI Express slots version
2.0,3.0
FireWire ports
0
Motherboard chipset family
Intel
VGA ports
1
Chassis intrusion connector
Yes
Compatible processor series
Intel Celeron G,Intel Pentium
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Max graphics memory
1760 GB
Number of SATA II connectors
5
Number of SATA III connectors
1
Supported memory clock speeds
1066,1333,1600,1800,2000,2200,2400
Number of EATX power connectors
1
Number of chassis fan connectors
4
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA II,SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Parallel processing technology support
2-Way CrossFireX
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
