MPN:
B360MBAZKA
MSI B360M Bazooka Intel® B360 LGA 1151 (Socket H4) micro ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 244 mm
- Wi-Fi
- N
- Width
- 244 mm
- BIOS type
- UEFI AMI
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
- TPM connector
- Y
- LAN controller
- Realtek RTL8111H
1 / 5
Shopping actions
Overview
The MSI B360M Bazooka Intel® B360 LGA 1151 (Socket H4) micro ATX (Depth: 244 mm). Full verified specifications are listed below.
Technical Specifications

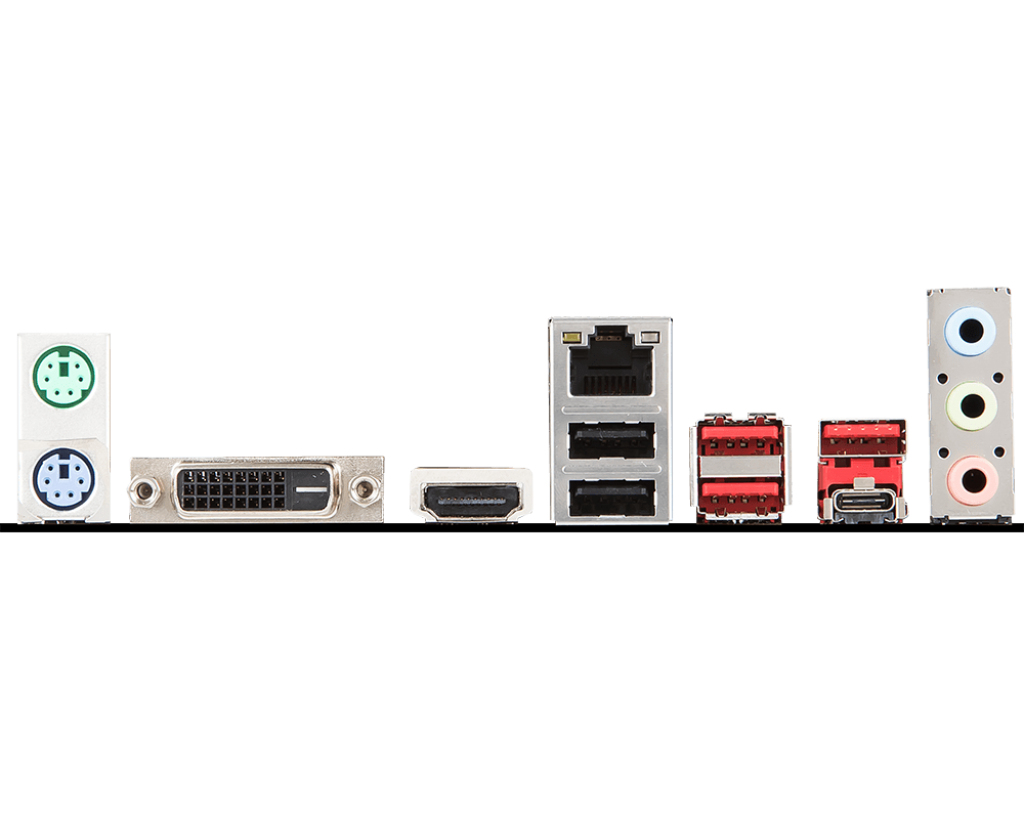

Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
2
DVI-D ports quantity
1
USB 2.0 ports
2
Ethernet ports
1
Memory
2 SPECS
Memory slots
4
Max memory
64 GB
Physical
3 SPECS
Depth
244 mm
Width
244 mm
Form factor
Micro ATX
Processor
2 SPECS
Socket
LGA 1151 (Socket H4)
CPU brand
Intel
Power
1 SPEC
Power source
ATX
General
56 SPECS
Wi-Fi
No
BIOS type
UEFI AMI
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek RTL8111H
Included cables
SATA
Memory channels
Dual-channel
Drivers included
Yes
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
Memory slots type
DIMM
ECC сompatibility
non-ECC
Parallel connector
Yes
USB 2.0 connectors
2
Chipset
Intel B360
Serial port headers
1
eSATA ports quantity
0
Audio channels
7.1
Front panel connector
Yes
Supported memory types
DDR4-SDRAM
Ethernet interface type
Gigabit Ethernet
Parallel ports
1
Number of mounting holes
8
Quick installation guide
Yes
FireWire ports
0
Motherboard chipset family
Intel
VGA ports
0
Chassis intrusion connector
Yes
Compatible processor series
Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
6
Supported memory clock speeds
2133,2400,2666
Supported storage drive types
HDD & SSD
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
Serial port via internal header
Yes
Maximum number of SMP processors
1
Number of chassis fan connectors
2
Linux distributions supported
Yes
Number of Parallel ATA connectors
0
Parallel port via internal header
Yes
Supported storage drive interfaces
SATA III
Windows versions supported
Windows 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Parallel processing technology support
Not supported
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Market Value History
Sources
Product lifecycle
In production
Still listed as on-market by the manufacturer — actively sold and supported.
Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
