MPN:
911-7697-005

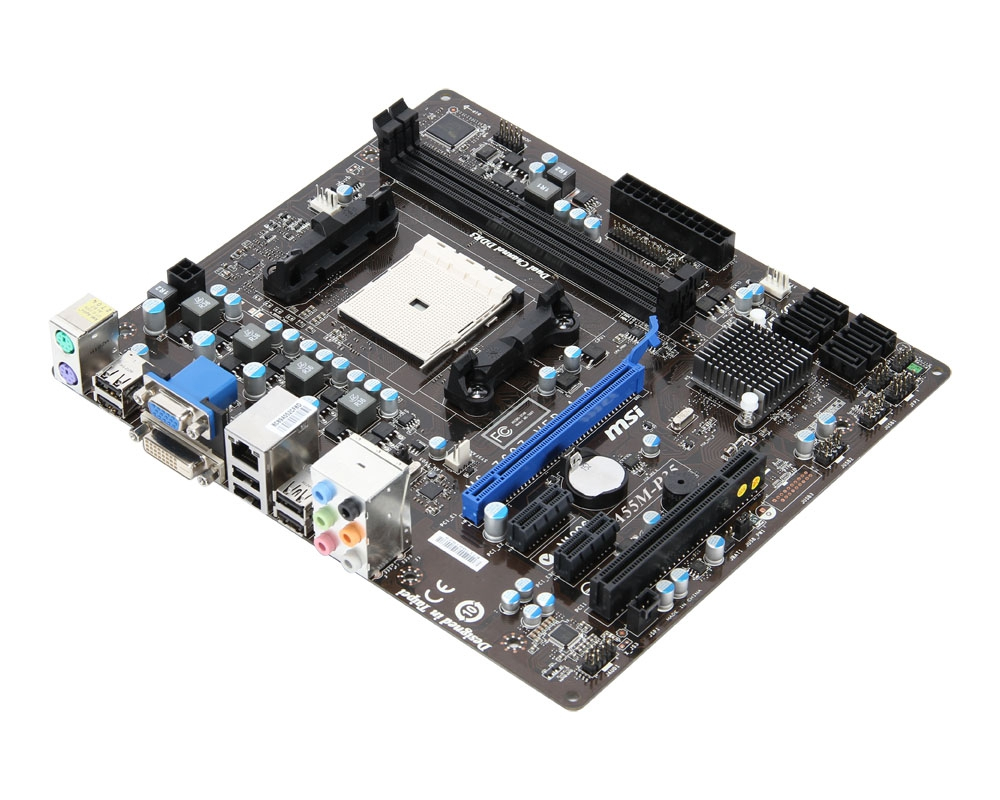

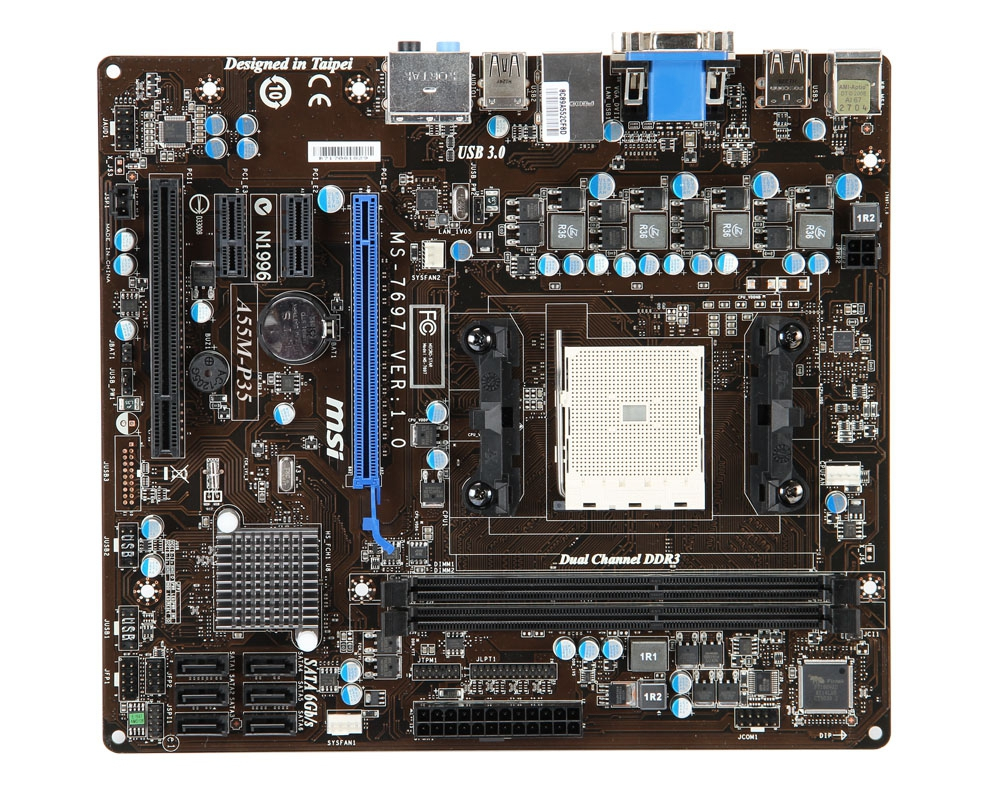

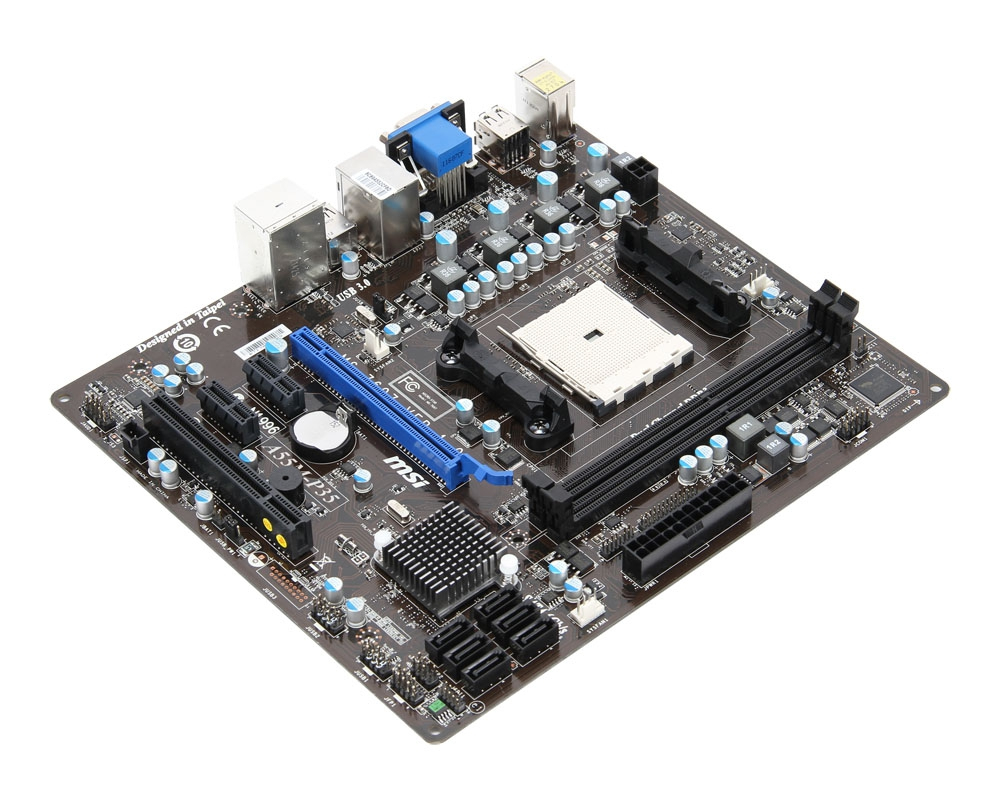

MSI A55M-P35 AMD A55 Socket FM1 micro ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 215 mm
- Width
- 244 mm
- Bluetooth
- N
- PCI slots
- Y
- Audio chip
- Realtek ALC887
- RAID levels
- 0,1,10
- Intended use
- PC
- Dual Link DVI
- Y
- Microphone input
- Y
1 / 5
Shopping actions
Overview
The MSI A55M-P35 AMD A55 Socket FM1 micro ATX (Depth: 215 mm). Full verified specifications are listed below.
Technical Specifications

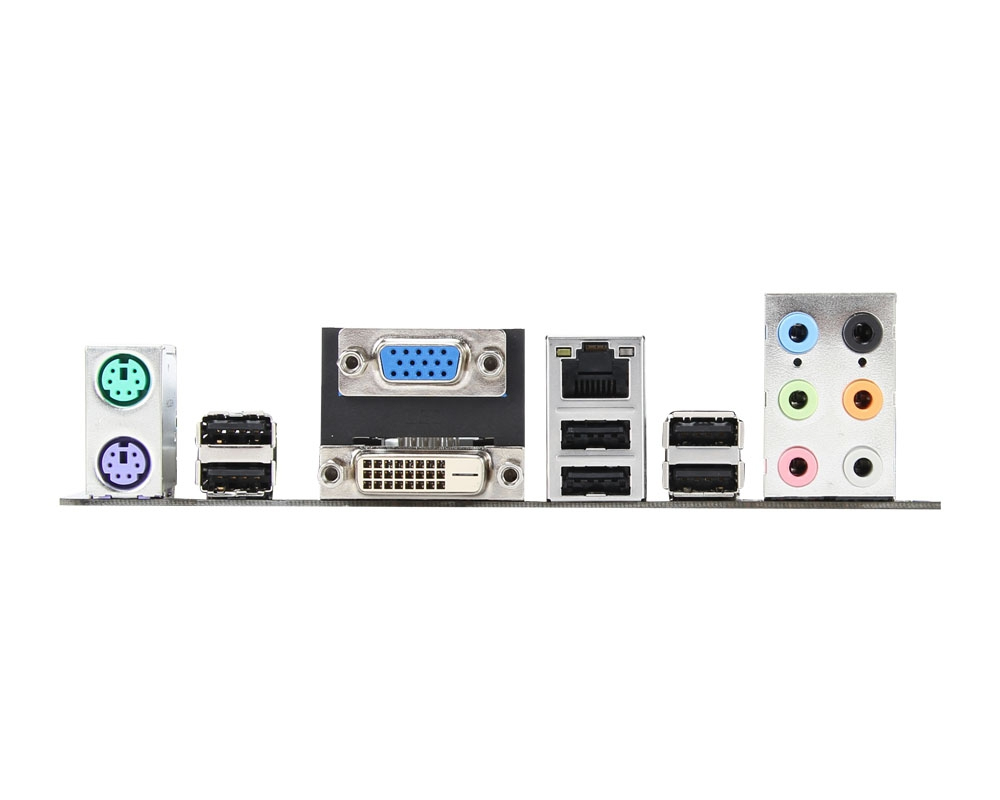

Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
2
DVI-D ports quantity
1
USB 2.0 ports
6
Ethernet ports
1
Processor
2 SPECS
Socket
Socket FM1
CPU brand
AMD
Power
1 SPEC
Power source
ATX
Memory
3 SPECS
Voltage
1.5 V
Memory slots
2
Max memory
16 GB
Physical
3 SPECS
Depth
215 mm
Width
244 mm
Form factor
Micro ATX
Graphics
1 SPEC
Dual Link DVI
Yes
General
50 SPECS
Bluetooth
No
PCI slots
1
Audio chip
Realtek ALC887
RAID levels
0,1,10
Intended use
PC
Microphone input
Yes
LAN controller
Realtek RTL8111E
Memory channels
Dual-channel
Wi-Fi standard
Not supported
Drivers included
Yes
CPU fan connector
Yes
Clear CMOS button
Yes
Headphone outputs
1
Parallel connector
Yes
USB 2.0 connectors
2
Chipset
AMD A55
Networking features
Gigabit Ethernet
Power fan connector
Yes
PCI Express x1 slots
2
S/PDIF out connector
Yes
eSATA ports quantity
0
Audio channels
7.1
PCI Express x16 slots
1
Integrated graphics
Yes
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
Number of COM connectors
1
Quick installation guide
Yes
Controller interface type
SATA 2
PCI Express slots version
2.0
FireWire ports
0
Motherboard chipset family
AMD
VGA ports
1
Chassis intrusion connector
Yes
Compatible processor series
AMD Athlon II X2,AMD Athlon II X4,AMD Sempron
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Compatible OS
Windows 98 SE
Windows ME
Windows 2000
Windows XP
Windows Vista
Windows 7
Max graphics memory
2048 GB
Number of SATA II connectors
6
Number of SATA III connectors
0
Supported memory clock speeds
1066,1333,1600,1866
Maximum number of SMP processors
1
Number of chassis fan connectors
2
Number of Parallel ATA connectors
0
Supported memory module capacities
8GB
Supported storage drive interfaces
SATA II
Parallel processing technology support
Hybrid CrossFireX
Peripheral (Molex) power connectors (4-pin)
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
