MPN:
7693-050R

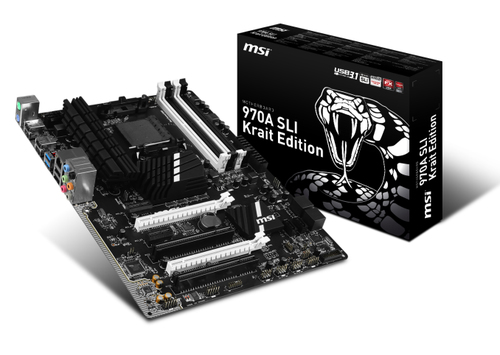

MSI 970A SLI KRAIT Edition AMD 970 Socket AM3+ ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 224 mm
- Width
- 305 mm
- BIOS type
- UEFI
- PCI slots
- 2
- Audio chip
- Realtek ALC887
- Cooling type
- Passive
- Ethernet LAN
- Y
- Intended use
- PC
- TPM connector
- Y
1 / 6
Shopping actions
Overview
The MSI 970A SLI KRAIT Edition AMD 970 Socket AM3+ ATX features Passive cooling. Full verified specifications are listed below.
Technical Specifications
Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
2
DVI-D ports quantity
0
USB 2.0 ports
6
Ethernet ports
1
Memory
2 SPECS
Memory slots
4
Max memory
32 GB
Cooling
1 SPEC
Cooling type
Passive
Physical
3 SPECS
Depth
224 mm
Width
305 mm
Form factor
ATX
Processor
2 SPECS
Socket
Socket AM3+
CPU brand
AMD
Power
1 SPEC
Power source
ATX
General
43 SPECS
BIOS type
UEFI
PCI slots
2
Audio chip
Realtek ALC887
Ethernet LAN
Yes
Intended use
PC
TPM connector
Yes
LAN controller
Realtek RTL8111E
Memory channels
Dual-channel
CPU fan connector
Yes
Clear CMOS jumper
Yes
Memory slots type
DIMM
USB 2.0 connectors
3
Chipset
AMD 970
Power fan connector
Yes
Serial port headers
1
eSATA ports quantity
0
Audio channels
7.1
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
Motherboard southbridge
AMD SB950
Discrete graphics support
Yes
FireWire ports
0
Motherboard chipset family
AMD
VGA ports
0
Chassis intrusion connector
Yes
Compatible processor series
AMD Phenom FX
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Supported CPU sockets
Socket AM3,Socket AM3+
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
6
Supported memory clock speeds
1066,1333,1600,2133
PCI Express x1 (Gen 2.x) slots
2
PCI Express x16 (Gen 2.x) slots
2
Maximum number of SMP processors
1
Number of chassis fan connectors
1
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA III
Windows versions supported
Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Parallel processing technology support
2-Way CrossFireX,2-Way SLI
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
