MPN:
7992-001R

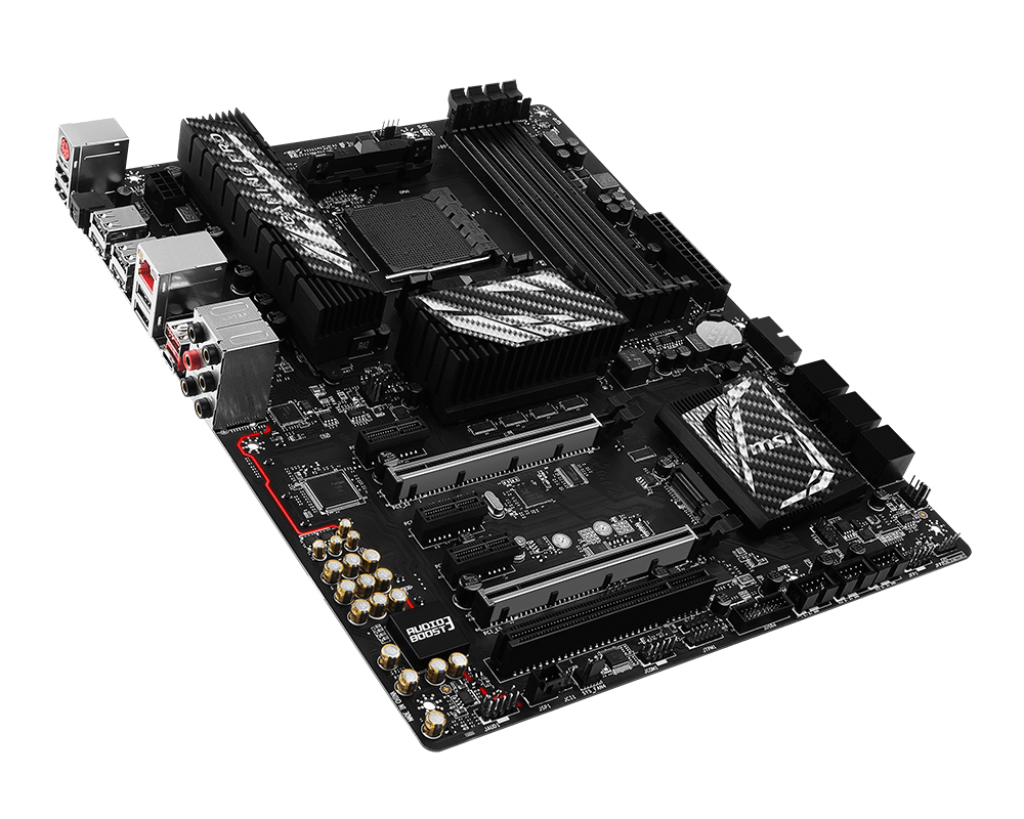

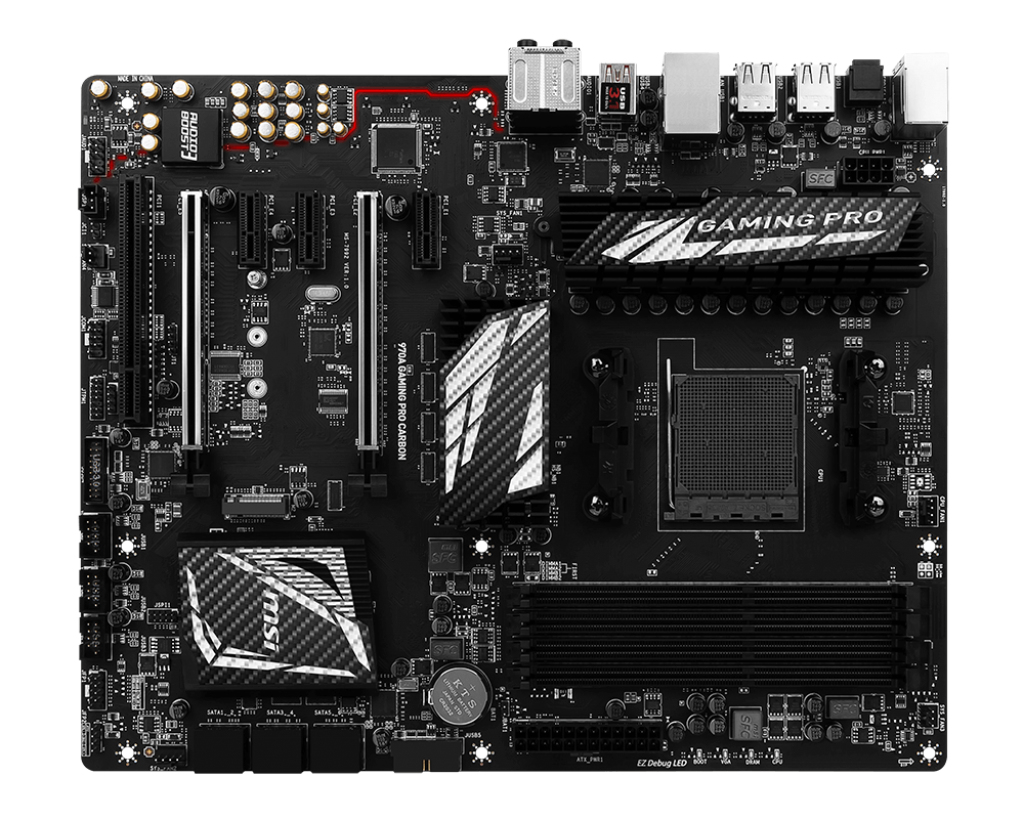

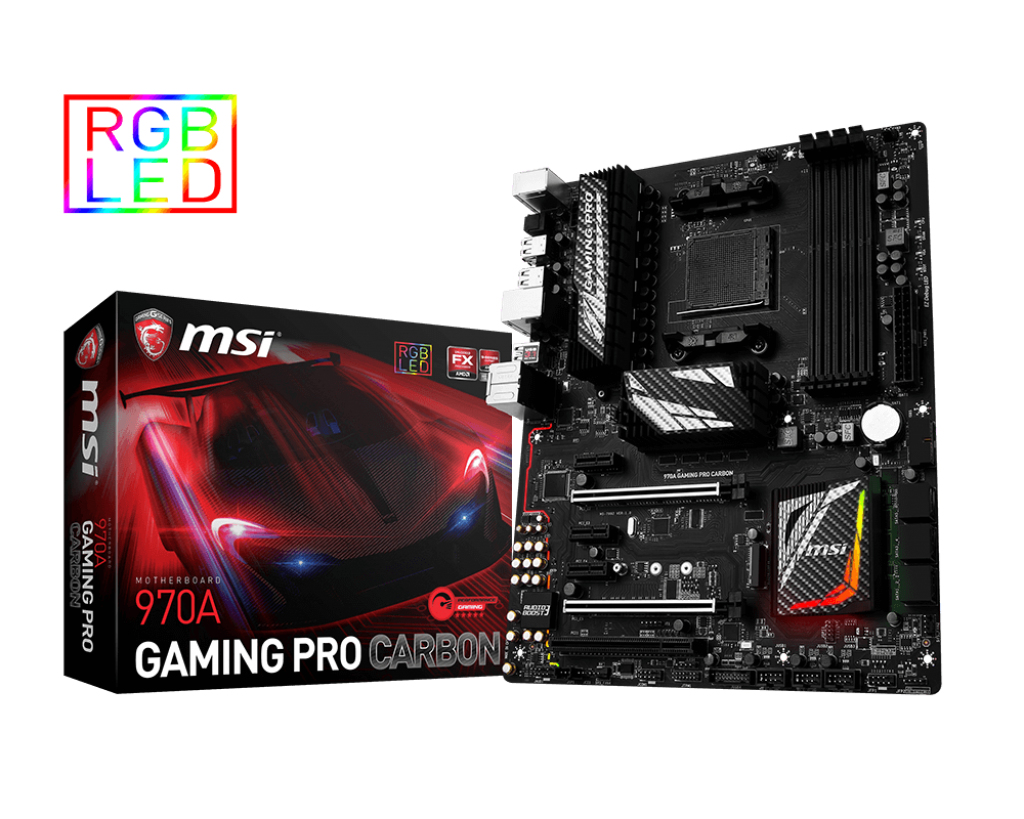

MSI 970A Gaming Pro Carbon
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 243 mm
- Width
- 305 mm
- BIOS type
- UEFI
- PCI slots
- Y
- RAID levels
- 0,1,5,10
- Ethernet LAN
- Y
- Intended use
- PC
- Microphone input
- Y
- TPM connector
- Y
1 / 5
Shopping actions
Overview
The MSI 970A Gaming Pro Carbon (Depth: 243 mm). Full verified specifications are listed below.
Technical Specifications

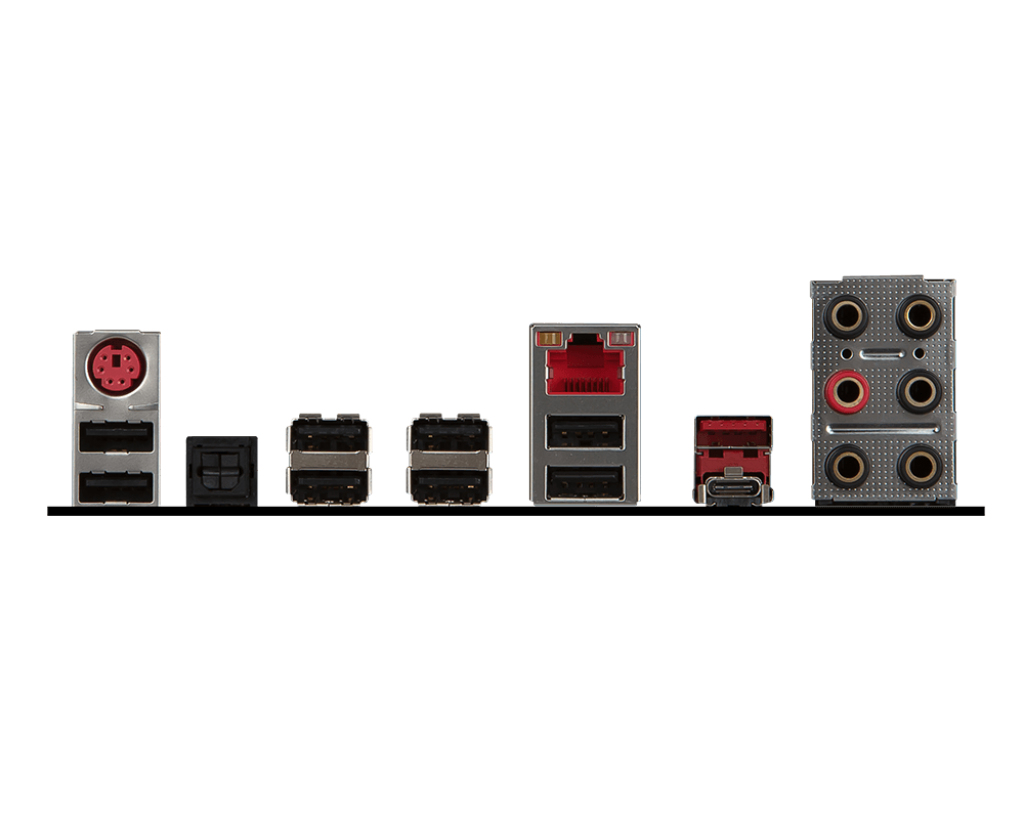

Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
1
DVI-D ports quantity
0
USB 2.0 ports
8
Ethernet ports
1
Memory
2 SPECS
Memory slots
4
Max memory
32 GB
Physical
3 SPECS
Depth
243 mm
Width
305 mm
Form factor
ATX
Processor
2 SPECS
Socket
Socket AM3+
CPU brand
AMD
Power
1 SPEC
Power source
ATX
General
45 SPECS
BIOS type
UEFI
PCI slots
1
RAID levels
0,1,5,10
Ethernet LAN
Yes
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Intel I211-AT
S/PDIF out port
Yes
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
Memory slots type
DIMM
USB 2.0 connectors
3
Chipset
AMD 970
Serial port headers
1
S/PDIF out connector
Yes
eSATA ports quantity
0
Audio channels
7.1
Supported memory types
DDR3-SDRAM
Motherboard southbridge
AMD SB950
FireWire ports
0
Motherboard chipset family
AMD
VGA ports
0
Chassis intrusion connector
Yes
Compatible processor series
AMD FX,AMD Phenom
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
6
Supported memory clock speeds
1066,1333,1600,1866,2133
PCI Express x1 (Gen 2.x) slots
3
PCI Express x16 (Gen 2.x) slots
2
Serial port via internal header
Yes
Linux distributions supported
Yes
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA III
Windows versions supported
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
