MPN:
911-7693-014

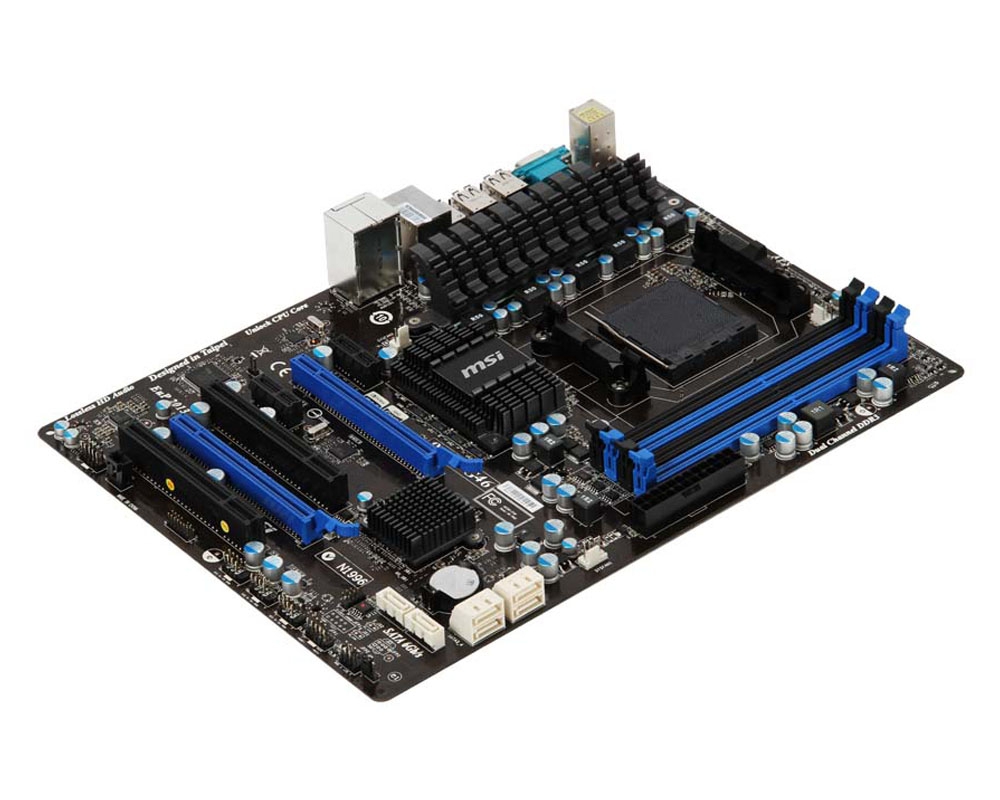

MSI 970A-G46 AMD 970 Socket AM3+ ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 305 mm
- Width
- 225 mm
- PCI slots
- 2
- Audio chip
- Realtek ALC892
- RAID levels
- 0,1,5,10
- Intended use
- PC
- Microphone input
- Y
- TPM connector
- Y
- LAN controller
- Realtek RTL8111E
1 / 5
Shopping actions
Overview
The MSI 970A-G46 AMD 970 Socket AM3+ ATX (Depth: 305 mm). Full verified specifications are listed below.
Technical Specifications
Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
1
DVI-D ports quantity
0
USB 2.0 ports
6
Ethernet ports
1
Processor
2 SPECS
Socket
Socket AM3+
CPU brand
AMD
Memory
3 SPECS
Voltage
1.5 V
Memory slots
4
Max memory
32 GB
Physical
3 SPECS
Depth
305 mm
Width
225 mm
Form factor
ATX
Power
1 SPEC
Power source
ATX
General
43 SPECS
PCI slots
2
Audio chip
Realtek ALC892
RAID levels
0,1,5,10
Intended use
PC
Microphone input
Yes
TPM connector
Yes
LAN controller
Realtek RTL8111E
Memory channels
Dual-channel
S/PDIF out port
Yes
Bus speed
4.8 GT/s
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
USB 2.0 connectors
3
Chipset
AMD 970
PCI Express x1 slots
2
S/PDIF out connector
Yes
eSATA ports quantity
0
Audio channels
7.1
PCI Express x16 slots
2
Serial ports
1
Integrated graphics
No
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
Motherboard southbridge
AMD SB950
PCI Express slots version
2.0
FireWire ports
0
Motherboard chipset family
AMD
VGA ports
0
Chassis intrusion connector
Yes
Compatible processor series
AMD Phenom II X2,AMD Phenom II X3,AMD Phenom II X4,AMD Phenom II X6,AMD Phenom X4
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
0
Number of SATA III connectors
6
Supported memory clock speeds
800,1066,1333,1600,1866,2133
Number of chassis fan connectors
2
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors
0
Parallel processing technology support
2-Way SLI
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
