MPN:
GA-Z170M-D3H DDR3

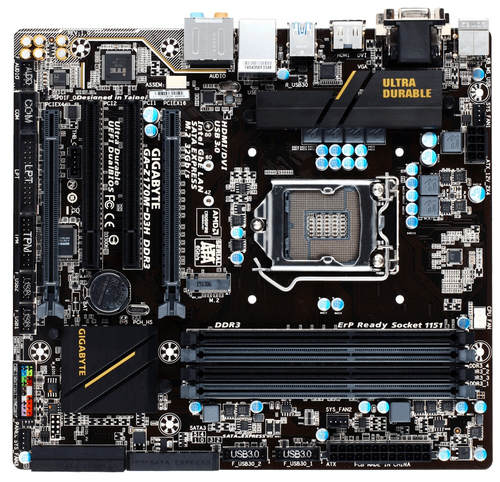

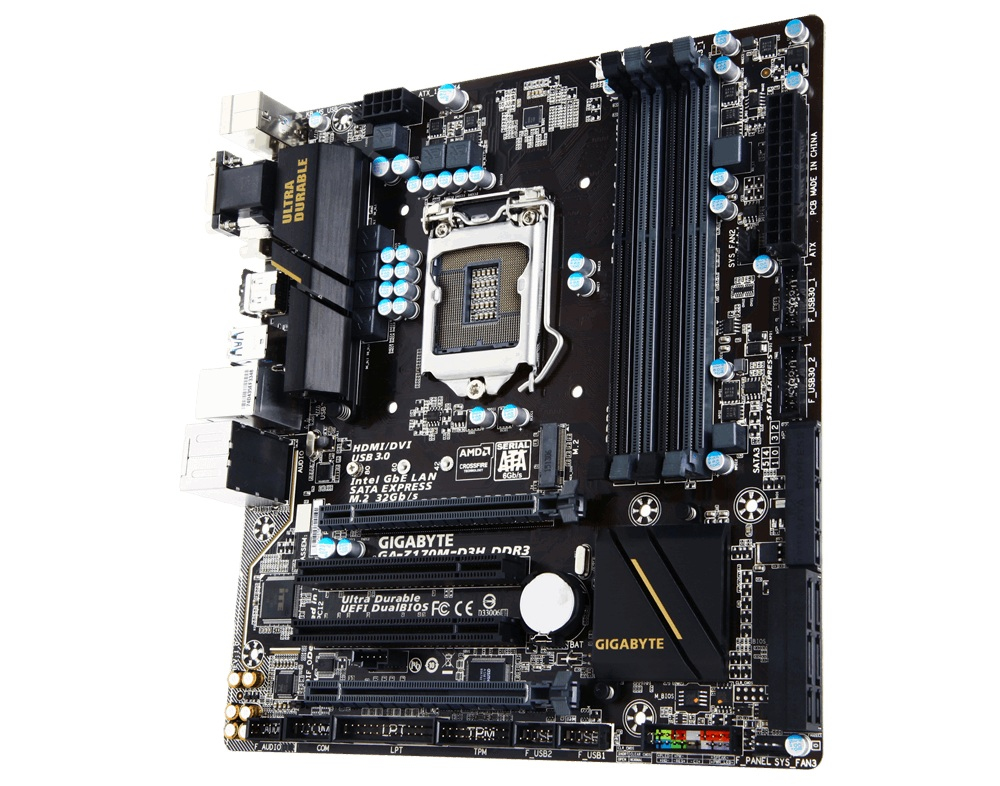

GIGABYTE GA-Z170M-D3H DDR3 motherboard Intel® Z170 LGA 1151 (Socket H4) micro ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 225 mm
- Width
- 244 mm
- BIOS type
- UEFI AMI
- PCI slots
- 2
- RAID levels
- 0,1,5,10
- ACPI version
- 5.0
- Ethernet LAN
- Y
- HDMI version
- 1.4
- Intended use
- PC
1 / 4
Shopping actions
Overview
The GIGABYTE GA-Z170M-D3H DDR3 motherboard Intel® Z170 LGA 1151 (Socket H4) micro ATX (Depth: 225 mm). Full verified specifications are listed below.
Technical Specifications

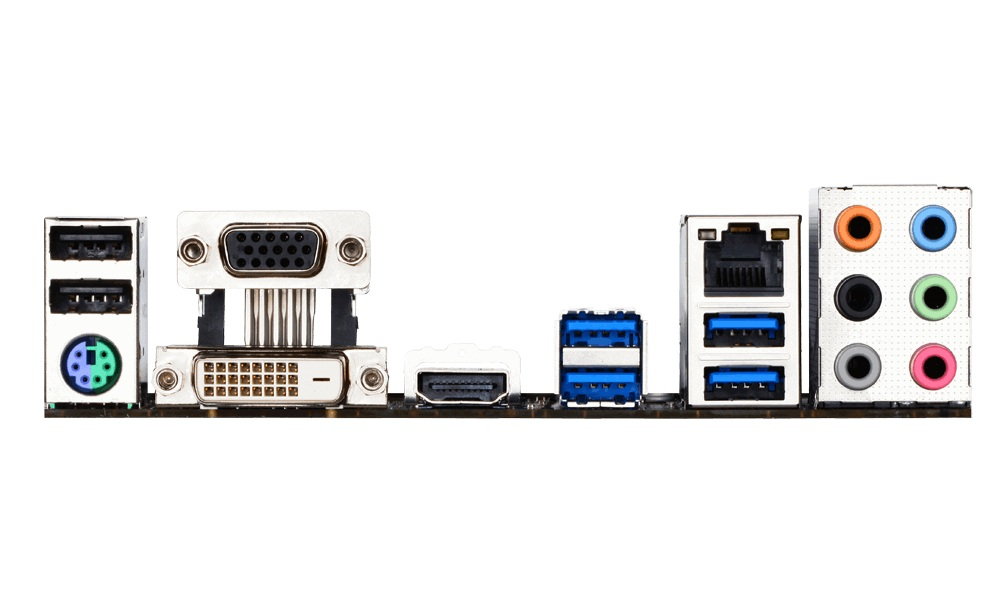

Ports & Connectivity
5 SPECS
HDMI ports
1
PS/2 ports
1
DVI-D ports quantity
1
USB 2.0 ports
2
Ethernet ports
1
Memory
2 SPECS
Memory slots
2
Max memory
32 GB
Storage
1 SPEC
SATA ports
9
Physical
3 SPECS
Depth
225 mm
Width
244 mm
Form factor
Micro ATX
Processor
2 SPECS
Socket
LGA 1151 (Socket H4)
CPU brand
Intel
Graphics
1 SPEC
Max resolution
4096 x 2160
Power
1 SPEC
Power source
ATX
General
53 SPECS
BIOS type
UEFI AMI
PCI slots
2
RAID levels
0,1,5,10
ACPI version
5.0
Ethernet LAN
Yes
HDMI version
1.4
Intended use
PC
Graphics card
HD Graphics
Microphone input
Yes
TPM connector
Yes
Included cables
SATA
Memory channels
Dual-channel
BIOS memory size
64 MB
Drivers included
Yes
CPU fan connector
Yes
Clear CMOS jumper
Yes
Headphone outputs
1
Memory slots type
DIMM
ECC сompatibility
ECC & non-ECC
USB 2.0 connectors
2
USB connector type
USB Type-A
Chipset
Intel Z170
Thunderbolt headers
1
Graphics card family
Intel
S/PDIF out connector
Yes
eSATA ports quantity
0
Audio channels
7.1
PCI Express x16 slots
2
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
Number of M.2 (M) slots
1
Quick installation guide
Yes
FireWire ports
0
Motherboard chipset family
Intel
VGA ports
1
Compatible processor series
Intel Pentium,AMD Phenom
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Number of SATA III connectors
6
Supported memory clock speeds
2133,2400,2666,2800,3000,3200
Trusted Platform Module (TPM)
Yes
Supported UDIMM module capacity
8GB
Maximum number of SMP processors
1
Intel® Smart Response Technology
Yes
Number of Parallel ATA connectors
0
Number of SATA Express connectors
3
Parallel port via internal header
Yes
Supported memory module capacities
4GB,8GB,16GB
Supported storage drive interfaces
SATA
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Parallel processing technology support
Not supported
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
