MPN:
GA-P55-UD3L
GIGABYTE GA-P55-UD3L motherboard LGA 1156 (Socket H) ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 190 mm
- Width
- 305 mm
- BIOS type
- AWARD
- PCI slots
- 4
- Audio chip
- Realtek ALC888
- RAID levels
- 0,1,5,10,JBOD
- ACPI version
- 1.0
- Microphone input
- Y
- Voltage
- 1.5 V
1 / 2
Shopping actions
Overview
The GIGABYTE GA-P55-UD3L motherboard LGA 1156 (Socket H) ATX (Depth: 190 mm). Full verified specifications are listed below.
Technical Specifications

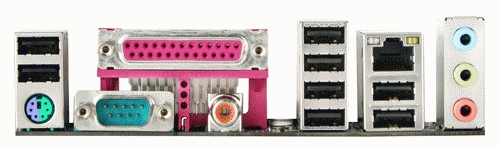

Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
1
DVI-D ports quantity
0
USB 2.0 ports
8
Ethernet ports
1
Physical
3 SPECS
Depth
190 mm
Width
305 mm
Form factor
ATX
Power
1 SPEC
Power source
ATX
Processor
3 SPECS
Bundled software
Norton Internet Security
Socket
LGA 1156 (Socket H)
CPU brand
Intel
Memory
3 SPECS
Voltage
1.5 V
Memory slots
4
Max memory
16 GB
Storage
1 SPEC
SATA ports
8
General
30 SPECS
BIOS type
AWARD
PCI slots
4
Audio chip
Realtek ALC888
RAID levels
0,1,5,10,JBOD
ACPI version
1.0
Microphone input
Yes
S/PDIF out port
Yes
BIOS memory size
32 MB
Drivers included
Yes
CPU fan connector
Yes
Headphone outputs
2
ECC сompatibility
non-ECC
USB 2.0 connectors
3
Networking features
10/100 Fast Ethernet
Power fan connector
Yes
S/PDIF in connector
Yes
PCI Express x1 slots
1
S/PDIF out connector
Yes
eSATA ports quantity
0
Audio channels
7.1
PCI Express x16 slots
2
Serial ports
1
Parallel ports
1
Controller interface type
Intel P55 Express
FireWire ports
0
VGA ports
0
Floppy disk drive connector
Yes
ATX Power connector (24-pin)
Yes
Compatible OS
Microsoft Windows 7/ Vista/ XP
Number of Parallel ATA connectors
1
