MPN:
GA-6PXSV4

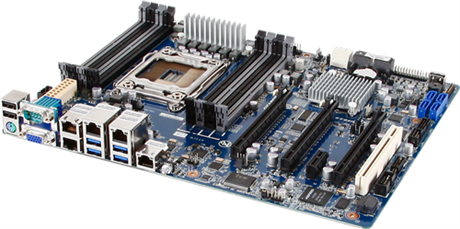

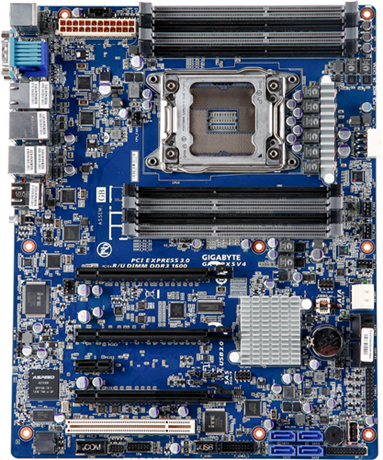

GIGABYTE GA-6PXSV4 motherboard Intel® C604 LGA 2011 (Socket R) ATX
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Depth
- 244 mm
- Width
- 305 mm
- BIOS type
- AMI
- PCI slots
- Y
- Audio chip
- Realtek ACL892
- RAID levels
- 0,1,5,10
- Ethernet LAN
- Y
- Intended use
- PC
- IPMI 2.0 slot
- Y
1 / 3
Shopping actions
Overview
The GIGABYTE GA-6PXSV4 motherboard Intel® C604 LGA 2011 (Socket R) ATX (Depth: 244 mm). Full verified specifications are listed below.
Technical Specifications
Ports & Connectivity
5 SPECS
HDMI ports
0
PS/2 ports
1
DVI-D ports quantity
0
USB 2.0 ports
2
Ethernet ports
5
Memory
2 SPECS
Voltage
1.35,1.5
Memory slots
8
Power
1 SPEC
Power source
ATX
Physical
3 SPECS
Depth
244 mm
Width
305 mm
Form factor
ATX
Processor
2 SPECS
Socket
LGA 2011 (Socket R)
CPU brand
Intel
Graphics
1 SPEC
Max resolution
1920 x 1200
General
43 SPECS
BIOS type
AMI
PCI slots
1
Audio chip
Realtek ACL892
RAID levels
0,1,5,10
Ethernet LAN
Yes
Intended use
PC
IPMI 2.0 slot
Yes
TPM connector
Yes
LAN controller
Intel 82574L
Included cables
SATA
Memory channels
Quad-channel
Drivers included
Yes
CPU fan connector
Yes
Clear CMOS jumper
Yes
Memory slots type
DIMM
ECC сompatibility
ECC & non-ECC
USB 2.0 connectors
2
Chipset
Intel C604
Serial port headers
1
Graphics card family
Aspeed
Maximum RDIMM memory
32
Maximum UDIMM memory
8
PCI Express x1 slots
1
eSATA ports quantity
0
PCI Express x16 slots
2
Serial ports
1
Supported memory types
DDR3-SDRAM
Ethernet interface type
Gigabit Ethernet
FireWire ports
0
Motherboard chipset family
Intel
VGA ports
1
Compatible processor series
Intel Core i7
ATX Power connector (24-pin)
Yes
Number of SATA II connectors
4
Number of SATA III connectors
2
Supported memory clock speeds
1066,1333,1600,1866
Maximum number of SMP processors
1
Linux distributions supported
RedHat EL Linux 5.0
Number of Parallel ATA connectors
0
Supported storage drive interfaces
SATA II,SATA III
Windows versions supported
Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
