MPN:
38046120

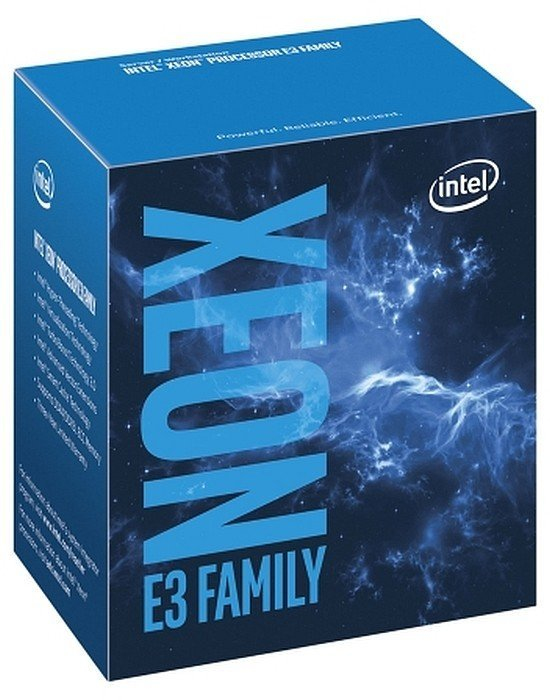

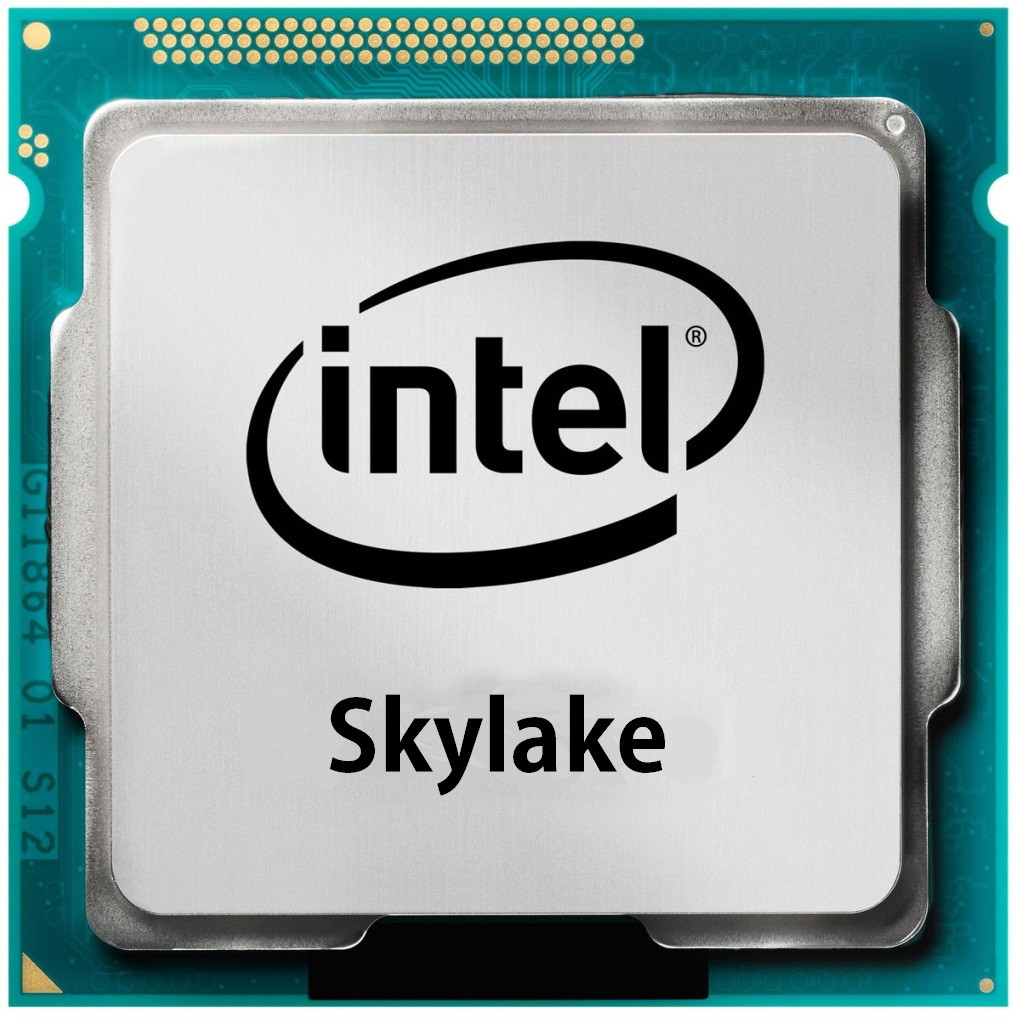

Fujitsu Intel Xeon E3-1225 v5 processor 3 GHz 8 MB Smart Cache
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Cores
- 4
- Threads
- 4
- Base clock
- 3 GHz
- Boost clock
- 3.5 GHz
- Socket
- LGA 1151 (Socket H4)
- TDP
- 80 W
- Processor line
- Intel Xeon E3 v5
- Cache
- 8192 MB
- Process node
- 14 nm
1 / 3
Shopping actions
Overview
The Fujitsu Intel Xeon E3-1225 v5 processor 3 GHz 8 MB Smart Cache features Intel Xeon E3 v5 processor, 4 cores, a 3 GHz base clock and up to 3.5 GHz boost. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
R0
Cache
8192 MB
Cores
4
Model
E3-1220V5
Processor line
Intel Xeon E3 v5
Socket
LGA 1151 (Socket H4)
Threads
4
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Base clock
3 GHz
Boost clock
3.5 GHz
CPU operating modes
64-bit
TDP
80 W
Memory
2 SPECS
ECC support
Yes
Max memory
64 GB
Physical
2 SPECS
Product type
Processor
Customs (HS) code
8542310001
General
82 SPECS
Status
Discontinued
Bus type
QPI
64-bit support
Yes
Bus speed
8 GT/s
Idle power states
Yes
Last change
63903513
Launch date
Q4'15
Scalability
1S
Intel TSX-NI
Yes
Bus bandwidth
8
Compatibility
Intel Server System R1304SPOSHBN
Intel Server System R1304SPOSHOR
Intel Server System R1208SPOSHOR
Intel Server Board S1200SPL
Intel Server Board S1200SPS
Intel Server Board S1200SPO
Intended use
Server/Workstation
Bus type units
GT/s
Market segment
Server
Maximum memory
64
Processor code
SR2LG
Product family
Intel Xeon Processor E3 v5 Family
Graphics output
N/A
Memory channels
Dual-channel
Bus speed
8 GT/s
Intel® OS Guard
Yes
Intel ARK ID
88172
Processor series
Intel Xeon E3-1200 v5
VID voltage range
0.55 - 1.52
Intel® Boot Guard
Yes
Intel® Insider™
No
Intel® Secure Key
Yes
Codename
Skylake
Execute Disable (NX)
Yes
Intel TSX-NI version
1.00
Processor brand name
Intel Xeon
Dedicated graphics
No
Integrated graphics
No
Processor package size
37.5 x 37.5
Supported memory types
DDR4-SDRAM,DDR3L-SDRAM
CPU configuration (max)
1
Conflict-free minerals
Yes
PCI Express CEM revision
3.0
Intel Enhanced Halt State
Yes
Maximum resolution (WiDi)
N/A
PCI Express slots version
3.0
Long-term availability
No
Graphics & IMC lithography
14
PCI Express configurations
1x16,2x8,1x8+2x4
Instruction sets
SSE4.1,SSE4.2,AVX 2.0
Dedicated GPU model
Not available
Intel Clear Video Technology
No
Integrated GPU model
Not available
Intel® InTru™ 3D Technology
No
Intel® Turbo Boost Technology
2.0
Thermal monitoring
Yes
On-board graphics card 4K support
No
Trusted Execution (TXT)
Yes
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
No
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM,DDR3L-SDRAM
Intel® vPro™ Platform Eligibility
Yes
Memory voltage supported by processor
1.35
Virtualization (VT-x)
Yes
Intel® Wireless Display (Intel® WiDi)
No
Maximum resolution & refresh rate (VGA)
N/A
Maximum resolution & refresh rate (HDMI)
N/A
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
1333,1600,1866,2133
Export Control Classification Number (ECCN)
5A992C
Intel Software Guard Extensions (Intel SGX)
Yes
Intel® Turbo Boost Technology 2.0 frequency
3.5
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
34.1
Maximum internal memory supported by processor
64
Maximum resolution & refresh rate (DisplayPort)
N/A
Intel® Transactional Synchronization Extensions
Yes
Number of displays supported (on-board graphics)
0
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® Memory Protection Extensions (Intel® MPX)
Yes
Directed I/O virtualization (VT-d)
Yes
Maximum resolution & refresh rate (Integrated Flat Panel)
N/A
Commodity Classification Automated Tracking System (CCATS)
G077159
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
