MPN:
338-BFCH

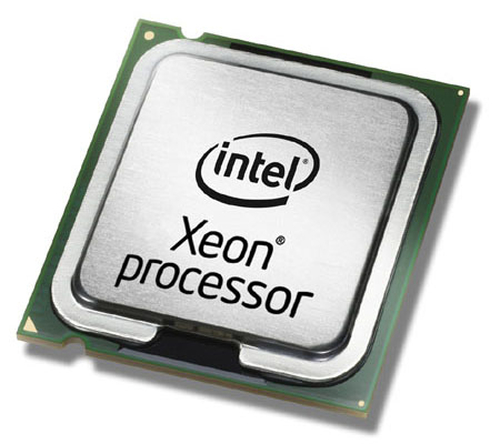

DELL Xeon E5-2667V3 processor 3.2 GHz 20 MB Smart Cache Tray
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Cores
- 8
- Threads
- 16
- Base clock
- 3.2 GHz
- Boost clock
- 3.6 GHz
- Socket
- LGA 2011-v3
- TDP
- 135 W
- Processor line
- Intel Xeon E5 v3
- Cache
- 20480 MB
- Process node
- 22 nm
1 / 2
Shopping actions
Overview
The DELL Xeon E5-2667V3 processor 3.2 GHz 20 MB Smart Cache Tray features Intel Xeon E5 v3 processor, 8 cores, a 3.2 GHz base clock and up to 3.6 GHz boost. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
R2
Cache
20480 MB
Cores
8
Model
E5-2667V3
Processor line
Intel Xeon E5 v3
Socket
LGA 2011-v3
Threads
16
Cache level
Smart Cache
Process node
22 nm
CPU brand
Intel
Base clock
3.2 GHz
Boost clock
3.6 GHz
CPU operating modes
64-bit
TDP
135 W
Memory
2 SPECS
ECC support
Yes
Max memory
786432 GB
Physical
1 SPEC
Product type
4
General
77 SPECS
Max case temperature (Tcase)
77.8 °C
Status
4
Bus type
QPI
64-bit support
Yes
FSB Parity
No
Idle power states
Yes
Launch date
2014-09-08T00:00:00
Scalability
2S
Born on date
Q3'14
Cache memory
20
Intel TSX-NI
No
Packaging type
Tray
Product name
Intel Xeon E5-2667 v3 (20M Cache, 3.20 GHz)
Bus bandwidth
9.6
Intended use
Server/Workstation
Bus type units
GT/s
L3 cache speed
3.2
Market segment
Server
Maximum memory
768
Processor code
SR203
Memory channels
Quad-channel
Bus speed
9.6 GT/s
Intel® OS Guard
Yes
Processor series
Intel Xeon E5-2600 v3
VID voltage range
0.65 - 1.3
Intel® Insider™
No
Intel® Secure Key
Yes
Codename
Haswell
Execute Disable (NX)
Yes
Intel® Smart Cache
Yes
Number of QPI links
2
Intel FDI Technology
No
Intel TSX-NI version
0.00
Processor brand name
Intel Xeon v2
Integrated graphics
No
Processor core voltage
0.65–1.30
Processor package size
52.5 mm
CPU configuration (max)
2
Conflict-free minerals
No
Intel Fast Memory Access
No
Intel Flex Memory Access
No
Intel Enhanced Halt State
Yes
PCI Express slots version
3.0
Long-term availability
No
PCI Express configurations
x4, x8, x16
Instruction sets
AVX
Intel Clear Video Technology
No
Intel Demand Based Switching
Yes
Intel Rapid Storage Technology
No
Intel® InTru™ 3D Technology
No
Intel® Turbo Boost Technology
2.0
Thermal monitoring
Yes
Physical Address Extension (PAE)
46
Trusted Execution (TXT)
Yes
SpeedStep power scaling
Yes
Intel Secure Key Technology version
1.00
Intel® Quick Sync Video Technology
No
PCIe lanes
40
Memory types supported by processor
DDR4-SDRAM
Intel® vPro™ Platform Eligibility
Yes
Intel Dual Display Capable Technology
No
Virtualization (VT-x)
Yes
Intel® Wireless Display (Intel® WiDi)
No
Intel® My WiFi Technology (Intel® MWT)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Memory clock speeds supported by processor
1600,1866,2133
Intel Identity Protection Technology version
0.00
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
68
Intel® Virtualization Technology (Intel® VT)
VT-d,VT-x
Maximum internal memory supported by processor
768
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® Identity Protection Technology (Intel® IPT)
No
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
