DELL logo MPN: 338-BUJB

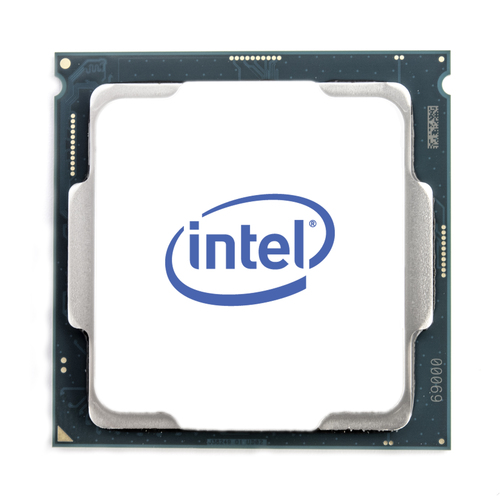

DELL Xeon E-2234 processor 3.6 GHz 8 MB Smart Cache

Released: Not on record
Price not yet available US · Amazon.com

We track this product’s Amazon US price daily — it appears here as soon as it’s listed.

Cores
4
Threads
8
Base clock
3.6 GHz
Boost clock
4.8 GHz
Socket
LGA 1151 (Socket H4)
TDP
71 W
Processor line
Intel Xeon E
Cache
8 MB
Process node
14 nm
View 79 specifications
1 / 4
Shopping actions
Check price on Amazon

Overview

The Intel Xeon® E-2234 3.6GHz Quad Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.

Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon E-2234 3.6GHz Quad Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.

Technical Specifications

Processor

13 SPECS
Cache
8 MB
Cores
4
Model
E-2234
Processor line
Intel Xeon E
Socket
LGA 1151 (Socket H4)
Threads
8
Cache level
Smart Cache
Process node
14 nm
CPU brand
Intel
Base clock
3.6 GHz
Boost clock
4.8 GHz
CPU operating modes
64-bit
TDP
71 W

Memory

2 SPECS
ECC support
Yes
Max memory
128 GB

Physical

2 SPECS
Product type
Processor
Customs (HS) code
85423119

General

62 SPECS
Max case temperature (Tcase)
69.3 °C
Status
Launched
64-bit support
Yes
Bus speed
8 GT/s
Tjunction
100
Idle power states
Yes
Launch date
Q2'19
Scalability
1S
Intel TSX-NI
Yes
Processor ID
N/A
Intended use
Server/Workstation
Market segment
Server
Maximum memory
128
Cooler included
No
Graphics output
N/A
Memory channels
Dual-channel
Bus speed
8 GT/s
Intel® OS Guard
Yes
Intel ARK ID
191039
Intel® Boot Guard
Yes
Intel® Secure Key
Yes
Codename
Coffee Lake
Execute Disable (NX)
Yes
Dedicated graphics
No
Integrated graphics
No
Processor package size
37.5mm x 37.5mm
Supported memory types
DDR4-SDRAM
CPU configuration (max)
1
PCI Express CEM revision
3.0
PCI Express slots version
3.0
Long-term availability
No
PCI Express configurations
1x16,2x8,1x8+2x4
Instruction sets
SSE4.1,SSE4.2,AVX 2.0
Dedicated GPU model
Not available
Intel Clear Video Technology
No
Integrated GPU model
Not available
Intel® InTru™ 3D Technology
No
Intel® Optane™ Memory Ready
Yes
Intel® Turbo Boost Technology
2.0
Thermal monitoring
Yes
On-board graphics card 4K support
No
Trusted Execution (TXT)
Yes
SpeedStep power scaling
Yes
Intel® Quick Sync Video Technology
No
PCIe lanes
16
Memory types supported by processor
DDR4-SDRAM
Intel® vPro™ Platform Eligibility
Yes
Virtualization (VT-x)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
2666
Export Control Classification Number (ECCN)
5A992C
Intel Software Guard Extensions (Intel SGX)
Yes
Intel® Turbo Boost Technology 2.0 frequency
4.8
Intel® AES New Instructions (Intel® AES-NI)
Yes
Maximum internal memory supported by processor
128
Maximum resolution & refresh rate (DisplayPort)
N/A
Intel® Transactional Synchronization Extensions
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® Memory Protection Extensions (Intel® MPX)
Yes
Directed I/O virtualization (VT-d)
Yes
Commodity Classification Automated Tracking System (CCATS)
G077159
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Powered by Icecat

Market Value History

Price history not started yet

Daily price tracking begins as soon as this product is listed on Amazon US — the trend chart will appear here automatically.

Sources

Brochure DELL 338-BUJB Icecat product datasheet

Product lifecycle

In production

Still listed as on-market by the manufacturer — actively sold and supported.

Lifecycle status is derived from catalog data and is indicative, not a manufacturer support guarantee.
