MPN:
KC.64501.EE5

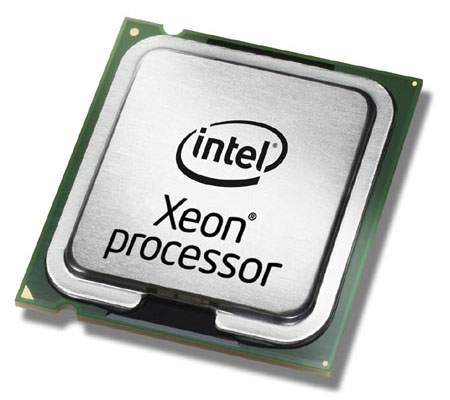

Acer Intel Xeon E5645 processor 2.4 GHz 12 MB L3 Tray
Released: Not on record
Price not yet available
US · Amazon.com
We track this product’s Amazon US price daily — it appears here as soon as it’s listed.
- Cores
- 6
- Threads
- 12
- Base clock
- 2.4 GHz
- Boost clock
- 2.67 GHz
- Socket
- Socket B (LGA 1366)
- TDP
- 80 W
- Processor line
- Intel Xeon 5000
- Cache
- 12 MB
- Process node
- 32 nm
Shopping actions
Overview
The Acer Intel Xeon E5645 processor 2.4 GHz 12 MB L3 Tray features Intel Xeon 5000 processor, 6 cores, a 2.4 GHz base clock and up to 2.67 GHz boost. Full verified specifications are listed below.
Technical Specifications
Processor
14 SPECS
Stepping
B1
Cache
12 MB
Cores
6
Model
E5645
Processor line
Intel Xeon 5000
Socket
Socket B (LGA 1366)
Threads
12
Cache level
L3
Process node
32 nm
Base clock
2.4 GHz
Front side bus
1333 MHz
Boost clock
2.67 GHz
CPU operating modes
64-bit
TDP
80 W
Memory
1 SPEC
ECC support
Yes
General
26 SPECS
Max case temperature (Tcase)
76.2 °C
Idle power states
Yes
Packaging type
Tray
Intended use
Server/Workstation
L3 cache speed
2.4
Market segment
Server
Memory channels
Triple-channel
Bus speed
5 GT/s
VID voltage range
0.75 - 1.35
Execute Disable (NX)
Yes
Integrated graphics
No
Intel Demand Based Switching
Yes
Intel® Turbo Boost Technology
Yes
CPU multiplier (bus/core ratio)
18
Trusted Execution (TXT)
Yes
SpeedStep power scaling
Yes
Memory types supported by processor
DDR3-SDRAM
Virtualization (VT-x)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Memory clock speeds supported by processor
800,1066,1333
Intel® AES New Instructions (Intel® AES-NI)
Yes
Memory bandwidth supported by processor (max)
32
Intel® Virtualization Technology (Intel® VT)
VT-d,VT-x
Maximum internal memory supported by processor
288
Directed I/O virtualization (VT-d)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
