MPN:
U580-BA
FSP U580-BA computer case Ultra Tower Black
- Form Factor
- Ultra Tower
- Motherboard
- ATX,Micro ATX,Mini-ITX
- Side Panel
- Tempered Glass
- Max GPU
- 415 mm
- Max Cooler
- 160 mm
- Rear fans installed
- 1x 120 mm
Overview
Innovative Design Meets Crystal Clarity

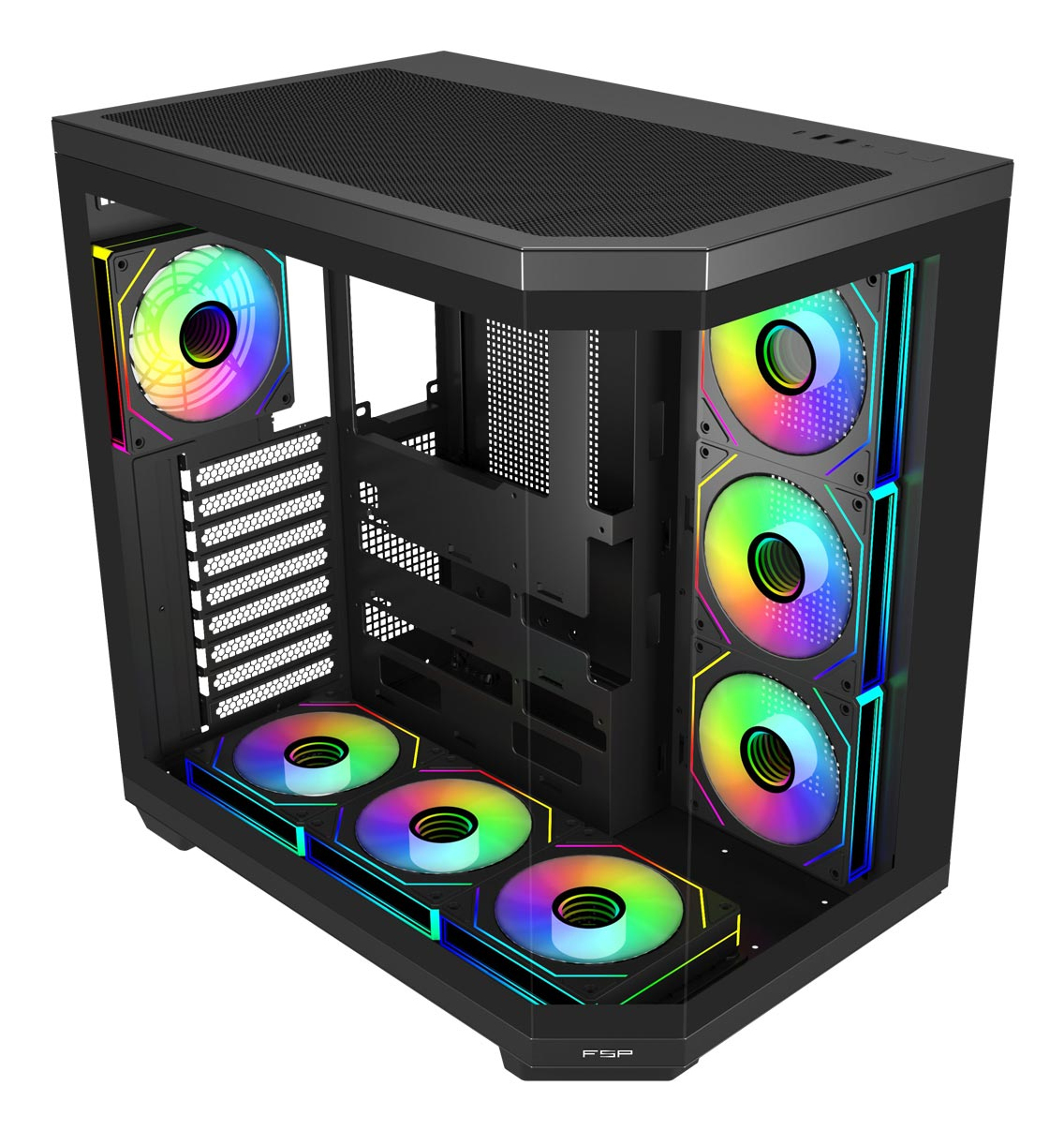

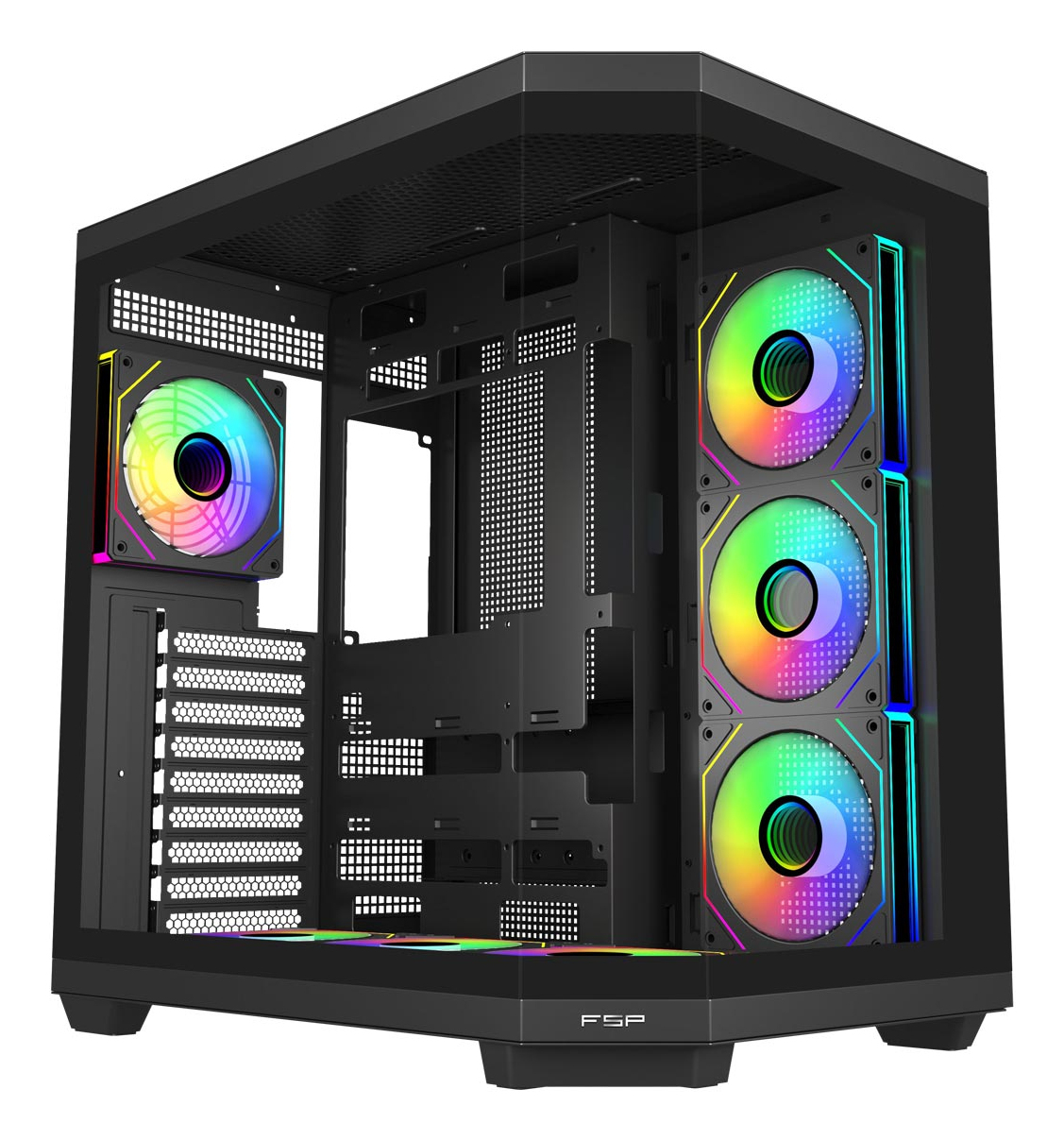

The U580 Three-Glass PC Case redefines showcase aesthetics with tempered glass panels on the front, and side. Its sleek, modern design offers a panoramic view of your build while supporting high-performance components and optimized airflow.
The side and bottom come pre-installed with six 120mm PWM ARGB fans, while the rear features a 120mm ARGB fan.
Clean Builds, Cool Performance
Compatible with ATX (BTF), M-ATX, and Mini-ITX motherboards, the U580 features built-in cable routing for clean back-connect setups. With seven pre-installed 120mm ARGB fans, it delivers both striking visuals and high-efficiency cooling.
Dual-chamber, Organized Space

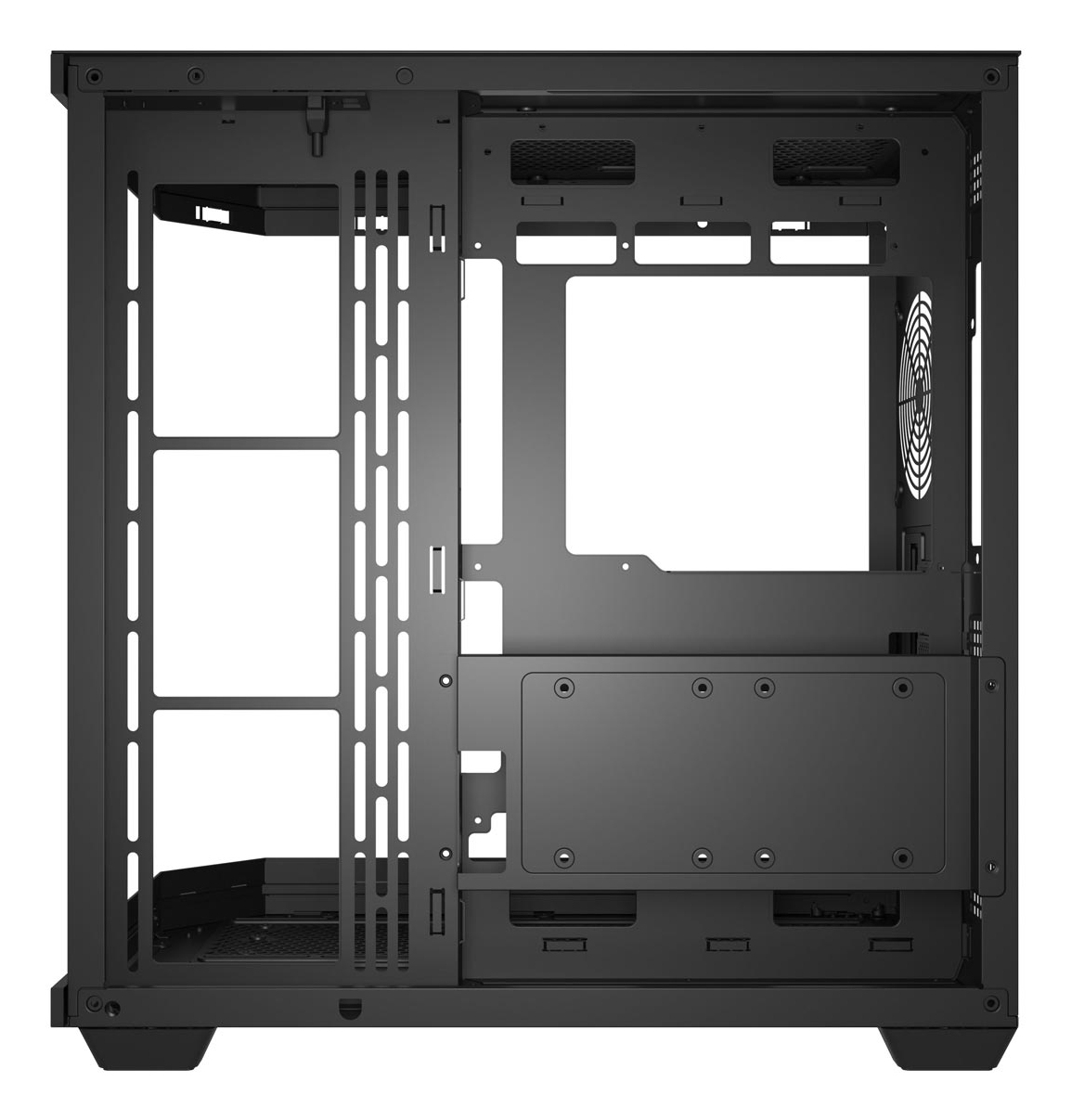

Designed with a dual-chamber layout, the U580 keeps the PSU, hard drives, and cables neatly tucked away, delivering a clean and clutter-free build. Combining refined aesthetics with high-performance potential, it features tempered glass panels on three sides, showcasing your components in style.
Compatibility
Compatibility data is automatically generated. Always verify critical specs before purchase.
Technical Specifications
Showing 28 key specifications of 49
All values come from this product’s catalog record.- Form factor
- Ultra Tower
- Supported board sizes
- ATX,Micro ATX,Mini-ITX
- Side window
- Yes
- Tempered glass panel(s)
- Yes
- Maximum graphics card length
- 415
- Maximum CPU cooler height
- 160
- Material
- Tempered glass,SPCC
- Rear fans installed
- 1x 120 mm
- Type
- PC
- Colour
- Black
- Depth
- 426 mm
- Width
- 285 mm
- Height
- 453 mm
- Weight
- 8330 g
- Illumination
- Yes
- Suitable for
- Gaming
- On/off button
- Yes
- Fan speed control
- Yes
- Material thickness
- 0.7
- Illumination colour
- Amber,Blue,Green,Red
- Number of 2.5" bays
- 2
- Number of 3.5" bays
- 1
- Side fans installed
- 3x 120 mm
- Supported HDD sizes
- 2.5,3.5
- Number of 5.25" bays
- 0
- Bottom fans installed
- 3x 120 mm
- Illumination location
- Case fans
- Power supply included
- No
Show all 49 specifications
- Power supply location
- Rear
- USB 2.0 ports
- 0
- Combo headphone/mic port
- Yes
- Number of expansion slots
- 9
- Top fans diameters supported
- 120
- Top radiator sizes supported
- 360
- Rear fans diameters supported
- 120
- Side fans diameters supported
- 120,140
- Side radiator sizes supported
- 360
- Front fans diameters supported
- 120
- Bottom fans diameters supported
- 120
- Bottom radiator sizes supported
- 240
- Number of top fans supported (max)
- 3
- Number of rear fans supported (max)
- 1
- Number of side fans supported (max)
- 3
- Supported power supply form factors
- ATX
- Number of bottom fans supported (max)
- 3
- USB 3.2 Gen 2x2 Type-C ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
